Summary of Contents for Massage Therapy Concepts TE2017

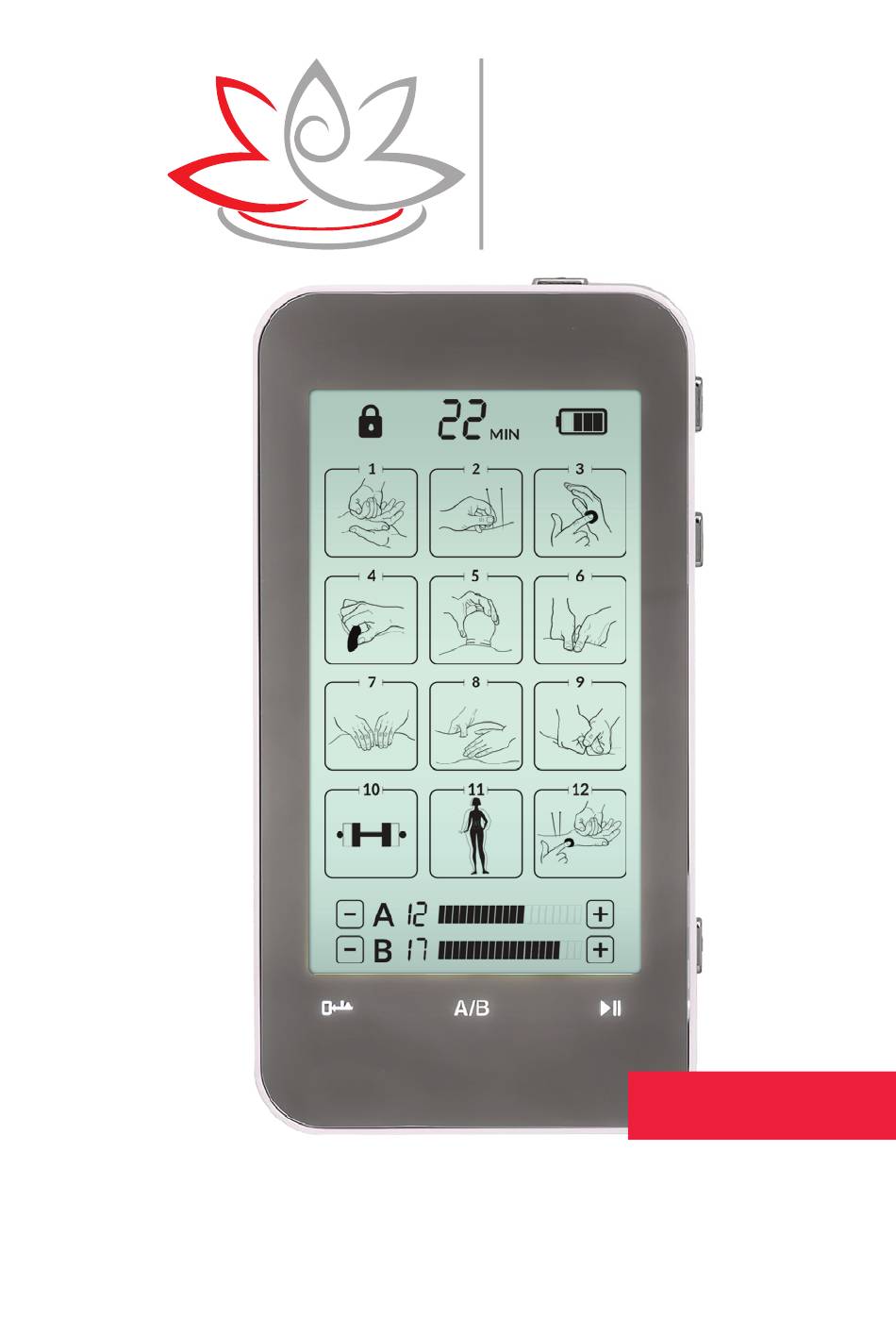

- Page 1 MASSAGE THERAPY CONCEPTS TE2017 Please read the instructions carefully before using this device.
-
Page 2: Table Of Contents
Table of Content Functions and Features........Principle..............Indication for Use..........Key Benefits............Accessories ............Operation..............Button Function Descriptions......Mode Descriptions..........Electrode Guidelines..........Application Principles........... Charging the Battery..........Storage Conditions..........Care and Maintenance........Safety Precautions..........Warnings..............Adverse Reactions..........Troubleshooting............. Definitions..............Specifications............Warranty.............. -
Page 3: Functions And Features
FUNCTIONS AND FEATURES • Two-Channel Stimulation Electrotherapy • 12 Modes • 20 intensity settings • Large backlit LCD display • Adjustable Timer up to 60 minutes • 4 pads on the body at the same time • Rechargeable, large capacity lithium battery •... -
Page 4: Principle
PRINCIPLE Do you su er with pain, muscle tension, stress or poor circulation? This device can quickly relax tense muscles and relieve pain. It is a modem day home therapy device using the latest bio-electrical technology. It is designed to provide relaxing, deep soothing sensations in areas where you need relief. -
Page 5: Indication For Use
INDICATION FOR USE TENS and EMS/PMS: To be used for the temporary relief of pain associated with sore and aching nerves and muscles in the shoulder, waist, back, neck, upper extremities (arm), lower extremities (leg). Choose Tens Modes: 1, 3, 4, 6, 8, 9, 11, 12. Choose EMS Modes: 1, 2, 3, 5, 7, 10, 12 Powered Muscle Stimulator: This is intended to stimulate the muscle groups,... -
Page 6: Key Benefits
KEY BENEFITS • Quick Acting - Although the rate and degree of response varies for individuals, many users report positive results after 10-20 minutes of use. • Healthy Alternative That is Always Available - There are no drugs or chemicals involved in this e ective form of pain relief. -
Page 7: Accessories
ACCESSORIES • Control unit • 1 set of small single sided adhesive electrode pads (1.6 inches by 1.2 inches) • 1 set of large single sided adhesive electrode pads (3 inches by 1.9 inches) • 1 set of X-Large single sided adhesive electrode pad (2 inches by 4 inches) •... -
Page 8: Button Function Descriptions
BUTTON FUNCTION DESCRIPTIONS... - Page 9 BUTTON FUNCTION DESCRIPTIONS Time Setting: Touch the time icon to adjust time to 10, 20, 30,40 50 or 60 minutes. Output A or B Shift Button: Touch icon A to shift from A to B or touch icon B to shift from B to A. Safety Lock Icon: Press the key button once to lock the screen to disable touch screen function;...
-
Page 10: Mode Descriptions
MODE DESCRIPTIONS • We suggest that you initially experiment using each of the modes. The mode or combination of modes that gives you the most desirable sensa- tions and comfort is the most appropriate one for you to use. • Intensity should be set at a level where you will feel some muscular vibration and involuntary muscle movements. - Page 11 MODE DESCRIPTIONS Simulating Tui Na is a It's especially e ective for hands-on body treatment joint pain, sciatica, muscle which opens the flow of Qi spasms, and pain in the back, through the meridians. neck and shoulders. It also Tui Na helps chronic conditions such as insomnia, constipation, headaches, and the tension...
- Page 12 Can enhance function, aid in It is the manipulation of the healing process, decrease superficial and deeper muscle reflex activity, inhibit layers of muscle and motor-neuron excitability, connective tissue using promote relaxation and various techniques. well-being, and as a recreational activity. Use low frequency Specifically use for lower vibrations to promote...
-
Page 13: Electrode Guidelines
ELECTRODE GUIDELINES 1. Only use the electrodes supplied by the manufacturer. 2. Do not use the electrodes on di erent people. Each user must have their own set. 3. Always turn the power o before removing or repositioning the electrodes. 4. -
Page 14: Application Principles
APPLICATION PRINCIPLES 1. Find the exact pain point: Place the pads on this position. The acupuncture chart can also serve as a guide for pad placement specific to each ailment. 2. Adjust the intensity gradually. It is more e ective to reach the highest intensity level you can stand. - Page 15 DELTOID UPPER ARM Attach one pad in front and Attach both pads on either one in back of the muscle. side of the region where Modes 2, 3, 4 you feel pain. Modes 1, 2, 3, 4, 5, 6, 7, 10 ELBOW Attach both pads on either HIP &...
-
Page 16: Charging The Battery
CHARGING THE BATTERY • The unit has an internal rechargeable lithium battery that can be charged through a standard wall outlet or through the USB port of your computer. • The unit may also need to be charged if the screen is dim, the sensations are weak or if the display on the screen does not appear when switched on. -
Page 17: Care And Maintenance
CARE AND MAINTENANCE 1. Make sure your skin is free from any dirt, oil or lotions. 2. Before applying the pads, put a few drops of water on your fingers and rub them on both pads. This will help the pads maintain their adhesiveness. -
Page 18: Safety Precautions
SAFETY PRECAUTIONS • Please use under the guidance of your medical practitioner. • Do not use this unit near shortwave therapy equipment, its output may be unstable. • Do not use electrode pads near heart. • Please stop using immediately if you feel your body or instrument abnormal. -
Page 19: Warnings
WARNINGS 1. Stimulation should not be applied directly on the temples, on the eyes, including the mouth, on front of the neck (especially the carotid sinus), or placed on the thorax and the upper back or passing through the heart. 2. -
Page 20: Troubleshooting
TROUBLESHOOTING 1Q: The unit is not turned on or I cannot see anything on the screen. A: Make sure the unit has been fully charged. 2Q: The unit does not seem to be charging: • Ensure the USB cable is firmly in the unit on one side and plugged into the AC adaptor into the electrical socket on the other side. - Page 21 4Q: The unit is on, but I do not feel any sensation in my feet: A: You may need to set the unit to a much higher level to feel sensation in your feet, especially if you have bad circulation or nerve damage. 5Q: Only one port on the unit works: A: Isolate the problem by trying another lead wire and a set of pads that you know work in the...
-
Page 22: Definitions
DEFINITIONS What is a Tens Unit? TENS stands for (Transcutaneous Electrical Nerve Stimulation) which are predominately used for nerve related pain conditions (acute and chronic conditions). TENS machines works by sending stimulating pulses across the surface of the skin and along the nerve strands. -
Page 23: Specifications
SPECIFICATIONS Name: Tens/EMS Device Type : TE2017 Power Supply: 5V Input power: AC 110~240V Pulse frequency:0~75HZ Pulse width: 78us Max. Output current: 0-55V Operation temperature humidity: <85%... -
Page 24: Warranty
Save These Instructions One (1) Year Limited Warranty from date of purchase Massage Therapy Concepts warrants this product against defects in materials and/or workmanship under normal use for a period of ONE (1) YEAR from the date of purchase by the original purchaser ("Warranty Period"). - Page 25 Virgin Islands. This Limited Warranty applies only to products manufactured for Massage Therapy Concepts that can be identified by the "Massage Therapy Concepts" trademark, trade name, or logo affixed to them or their packaging. The Limited Warranty does not apply to any non - Massage Therapy Concepts products.
- Page 26 MASSAGE THERAPY CONCEPTS SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY.
- Page 27 Massage Therapy Concepts Chatham, NJ...
