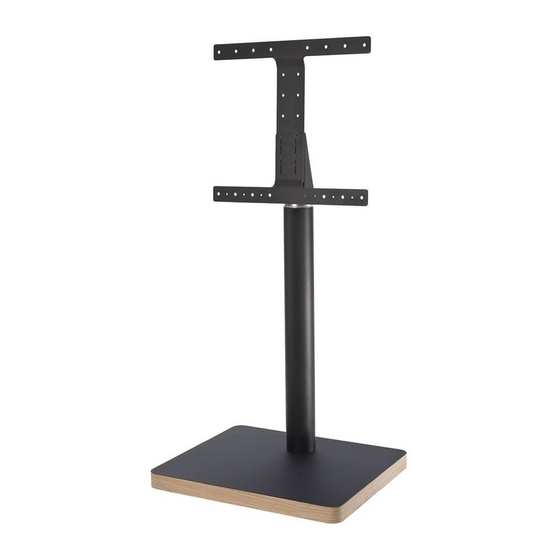

Summary of Contents for Bulow Stand BS15-2
- Page 1 Assembly instructions BS15-2...
-
Page 2: Overview Of Parts
Overview of parts Option A1. Option A2. A shelf can be purchased as an option for BS15. It’s ideal for items located close to the TV such as a soundbar, game-box or TV-reciever. parts used for assembly of BS15 Parts to attach TV J-1. - Page 3 J-1. I-1. J-2. I-2. www.bulowstand.com . info@bulowstand.com . +45 40 27 88 18...
- Page 4 5 mm/0.2 inches Don not screw all the way to the bottom. Leave a small gap of approximately 5 mm/0.2 inches. www.bulowstand.com . info@bulowstand.com . +45 40 27 88 18...
- Page 5 You can change the initial height of the TV on BS15 by adjusting the position of L1./L2 F. and E. on to D. This option requires additional screws which need purchase. L1./L2 L1./L2 L1./L2 Adjust the position of F. and E. according to the specs of the TV.
- Page 6 Gently align TV and top of BS15 to the bottom part. Then lower the TV and top of BS15 so the two screws passed through the ‘keyholes’. Gently push the TV and top of BS15 so the two screws are positioned in the narrow end of the ‘keyholes’. Align and fasten screws.
- Page 7 www.bulowstand.com . info@bulowstand.com . +45 40 27 88 18...
- Page 8 www.bulowstand.com...
