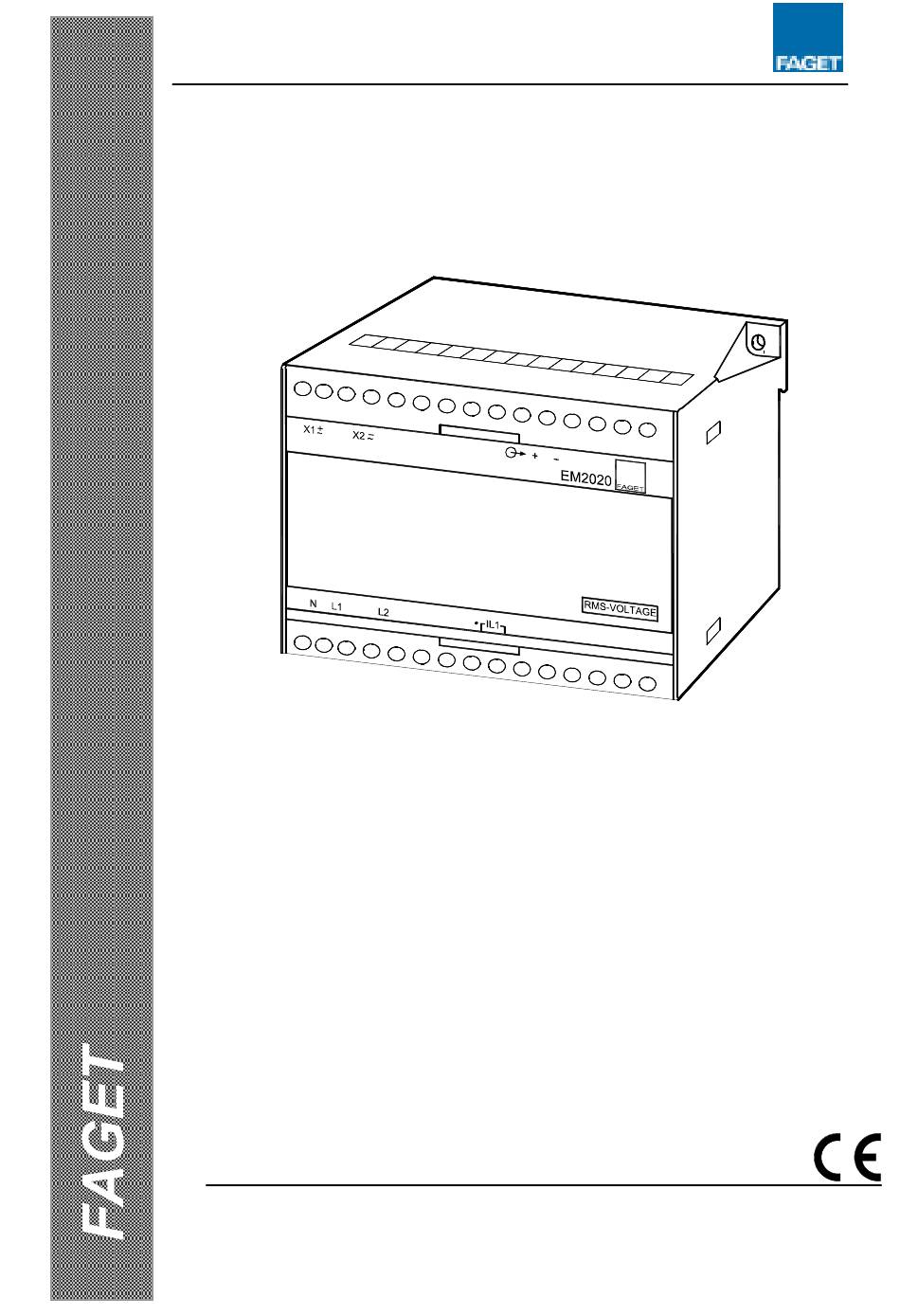

Installation and start up instructions
EM2020
Selectable AC transducer
4189300016A (UK)
•
Watt or var transducer
•
Supply and measuring voltage up to 690V
•
Configuration via PC-interface possible
•
35 mm DIN rail or base mounting
FAGET BV
Postbus 12, 8330AA Steenwijk
Nederland
Tel.:
++31 (0) 521533333
Fax:
++31 (0) 521533398
E-mail: sales@faget.nl
Advertisement
Summary of Contents for Faget EM2020
- Page 1 Installation and start up instructions EM2020 Selectable AC transducer 4189300016A (UK) • Watt or var transducer • Supply and measuring voltage up to 690V • Configuration via PC-interface possible • 35 mm DIN rail or base mounting FAGET BV Tel.:...
- Page 2 Description EM2020 is a micro controller based power transducer with 1 analog output for measurement of Watt or var. The transducer holds no mechanical moving parts like potentiometers and therefore the calibration stability is excellent. Label The configured transducer is provided with a label with the following data:...
- Page 3 Installation and start up instructions, EM2020 Mounting instructions EM2020 is designed for panel mounting, being mounted on a 35 mm DIN rail, or by means of two 4-mm screws. Weight: Approx. 0.650 kg The design of the transducer makes mounting of it close to similar equipment possible, however make sure there is min.
- Page 4 2A fuse for the supply input (terminals 1 and 3). The transducer is protected against ESD (electrostatic electricity), and further special protection against this during the mounting of the transducer is not necessary. Tel.: ++31(0)521 533333 • Fax: ++31(0)521 533398 • E-mail: sales@faget.nl Page 4 of 8...
- Page 5 Note this function is only activated in coupling 2W3, 2var3 and 3W3(4), 3var3(4). Fast pulse 5Hz. The calibration data are corrupted. Contact Faget BV. Slow pulse 1Hz. The configuration data are wrong or corrupted. Make a re- configuration or contact Faget BV.
- Page 6 Tel.: ++31(0)521 533333 • Fax: ++31(0)521 533398 • E-mail: sales@faget.nl Page 6 of 8...
- Page 7 Installation and start up instructions, EM2020 Technical specifications Accuracy: Class 0.5 (-10…15…30…55°C) according to IEC 60688 Meas. current (In) 0.75/1.5/3.0/6.0A Meas. range: 0…200% I can be set between 0.375…6A Overload, currents: 20A max., continuously 75A max. for 10 s 240A max. for 1 s Load: Max.
- Page 8 Housing: IP40. Terminals: IP20, to IEC 529 and EN 60529 Connections: Max. 2.5mm² multi-stranded Max. 4.0mm² single-stranded Materials: All plastic parts are self-extinguishing to UL94 (V1) Weight: 0.650kg Tel.: ++31(0)521 533333 • Fax: ++31(0)521 533398 • E-mail: sales@faget.nl Page 8 of 8...
