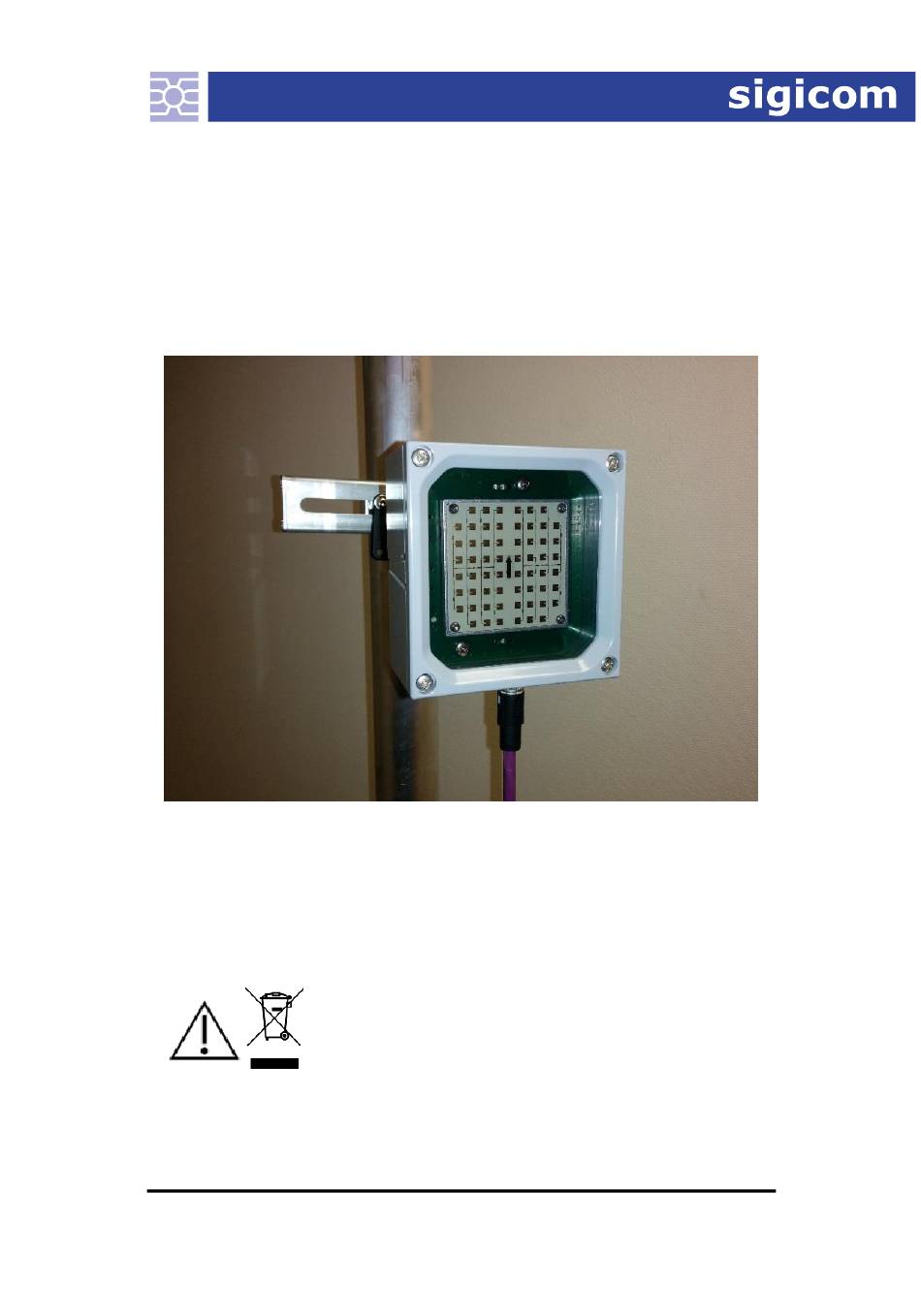

- Page 1 INFRA X20SR Speed Radar Art no. 080-03250-0 Manual ver. A Valid for firmware version 1.1.0 Read instructions on safety and electrical equipment waste recycling before operating this product. Manual Copyright ©Sigicom AB 2016 ML-3250-0EnA...
- Page 2 Developed and manufactured by: Sigicom AB Alfred Nobels Allé 214 SE – 146 48 Tullinge, Sweden Email address for support issues: support@sigicom.com IMPORTANT SAFETY INSTRUCTIONS – read this before use. Workplace hazards: This equipment will be installed close to rail and road traffic, which is hazardous workplace.
- Page 3 Scrapped equipment should be sent back to the manufacturer of the equipment (Sigicom) for proper handling according to the WEEE directive. Sigicom’s partner for recycling of scrapped equipment is Hans Andersson Recycling Stockholm AB, with transport certificate no. 562-1372-2012 (Länsstyrelsen i Stockholms län).
-
Page 4: Table Of Contents
LED indications .............. 15 Maintenance and calibration ............ 16 Accessories ................17 6.1 Other accessories ..............17 Contact and support ..............18 Appendix A ..................19 A.1 Power consumption ............... 19 A.2 Mechanical data ..............19 Copyright ©Sigicom AB 2016... -
Page 5: Introduction
Chapter 5 – Maintenance information. Chapter 6 – Accessories: Lists the accessories for X20SR, and X20SR-related accessories for the INFRA Field Monitoring System. Chapter 7 – Contact and support. Contains contact information to Sigicom AB. Copyright ©Sigicom AB 2016... -
Page 6: Unpacking And Parts Identification
Please verify the package content with the following list: INFRA X20SR Speed Radar Unit Please report any damage or shortage immediately to Sigicom. Record the instrument’s serial number. You will be asked to give this number in any X20SR related communication you may have with Sigicom. -
Page 7: General Description
2 General description The INFRA X20SR Speed Radar is designed for speed measurements of different types of vehicles. Speeds up to 250 km/h can be measured with 2 km/h resolution, both moving towards and away from the unit. The X20SR uses a high quality Doppler radar module, working in the K-band (24.15GHz ISM Band). -
Page 8: Design Features
Your X20SR Speed Radar shall be connected to the INFRA Field Monitoring System. Preferably use INFRA Net to display your recorded measurements. It is also possible to view the latest saved value and live values in the Datalogger display. Copyright ©Sigicom AB 2016... -
Page 9: Configuration And Operation
The unit has a RAM Mount ® 1.5” RAM Ball Base attached to its back side. RAM Mount products is widely available over the world. See http://www.rammount.com/partners. Example: http://www.ram-mount.se/ram-202u-225.html , often with parts in stock. Pole mounts: http://www.rammount.com/part/RAM-235U http://www.rammount.com/part/RAM-118BU Double socket arm: http://www.rammount.com/part/RAM-201U-B Copyright ©Sigicom AB 2016... - Page 10 For road vehicle measurements the height level above the road is recommended to be 0.6 – 0.8 meter to be able to catch all standard sized cars. Copyright ©Sigicom AB 2016...
-
Page 11: Lobe
The lobe widths are indicated on the case of the unit. Lobe Blue 12 deg (±6 deg from center line) 24 deg (±12 deg from center line) Copyright ©Sigicom AB 2016... -
Page 12: Range
If following the recommendations in this manaual, the correction due to radar position and direction will be minimal. Radar setup, v can be either positive or negative. Copyright ©Sigicom AB 2016... -
Page 13: Mounting Check
By continuously pressing “F2” the last interval value will show in the display, until it is replaced by a new one. If a reasonable value is shown when a vehicle is passing by then the unit is set up properly. Copyright ©Sigicom AB 2016... -
Page 14: Parameters
The interval time is how often the measured speed value is registered. The minimum interval time is 5s. 4.6.3 Threshold levels No threshold levels can be set for the INFRA X20SR unit. 4.6.4 Customer string The customer string is a four character string that can be changed. -
Page 15: Quick Start
Under the menu Nodes you’ll find your SR unit as SR X20SR- <serial no.> where SR is the customer string and is the serial <serial no.> number. Check and make necessary changes of its setup. Activate REG ON, and the measurement will be initiated. Copyright ©Sigicom AB 2016... -
Page 16: Error Indication
If the speed radar malfunctions, the Datalogger displays “Node lost” after about two minutes. 4.9 LED indications An upper-middle red flash is shown when each interval is saved. A lower-right green LED is lit when an object is detected. Copyright ©Sigicom AB 2016... -
Page 17: Maintenance And Calibration
5 Maintenance and calibration Send the device to Sigicom for calibration and adjustment. See contact information below. Recommended calibration interval is 12 months. If sent to repair, please carefully write down the description of the problem. It is also recommended contacting Sigicom before sending the unit for repair. -
Page 18: Accessories
CompactFlash cards and USB reader RS232 cables and USB adapter Spare batteries External modems for INFRA Micro Packaging boxes and material See latest INFRA product catalogue for a complete list of accessories and more details. Copyright ©Sigicom AB 2016... -
Page 19: Contact And Support
7 Contact and support Address Sigicom AB Alfred Nobels Allé 214 SE-146 48 Tullinge SWEDEN Phone +46 8 44 99 770 Internet www.sigicom.com E-mail support@sigicom.se Copyright ©Sigicom AB 2016... -
Page 20: Power Consumption
Appendix A A.1 Power consumption During measuring X20SR Speed Radar consumes approximately 320mW. A.2 Mechanical data Housing protection class IPx7 Weight (with ball base) 890 g (2.0 lbs) Copyright ©Sigicom AB 2016...
