matronics 606646 Quick Start Manual

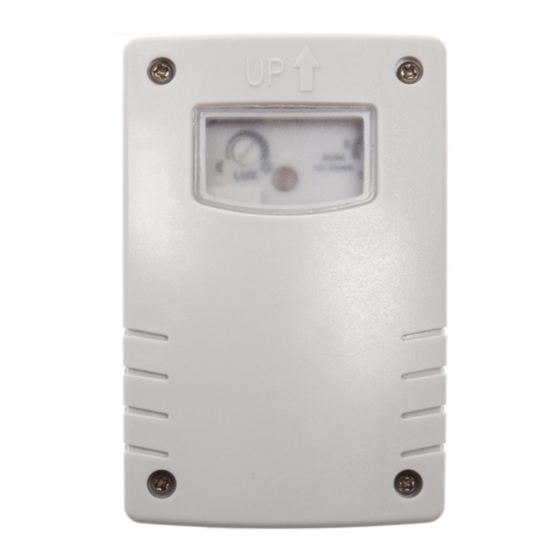

230V Twilight switch with delayed off / timer

A smart controller that turns the power on when it registers that it has become
dark. With the timer you can set it up to turn off after certain hours.
A smart controller that turns the power on, when it registers that it has
become dark. With the timer you can set it up to turn off after set hours.
The sensitivity on the sensor can be easily adjusted by turning the Lux-
setting (2-200 Lux) and the delayed turn off function can be adjusted by
turning the timer-setting (1-9 hours).
The LED-indicator shows how the setting is adjusted:
1-8 hours: 1 blink per hour
more than 8 hours: 9 blinks.
from dusk til dawn: 3 fast blinks
Notice that the box is only IP4. The work-temperature: -20 to +40 degrees.
An English manual is included.

Product overview

230V Twilight switch with delayed off / timer
SKU 606646
Dimensions: 42 x 118 x 68mm
Buy online at www.matronics.eu/606646

Specifications

Light sensitivity 2-200 Lux
Max current 10A
Voltage 230VAC
