1 of 10

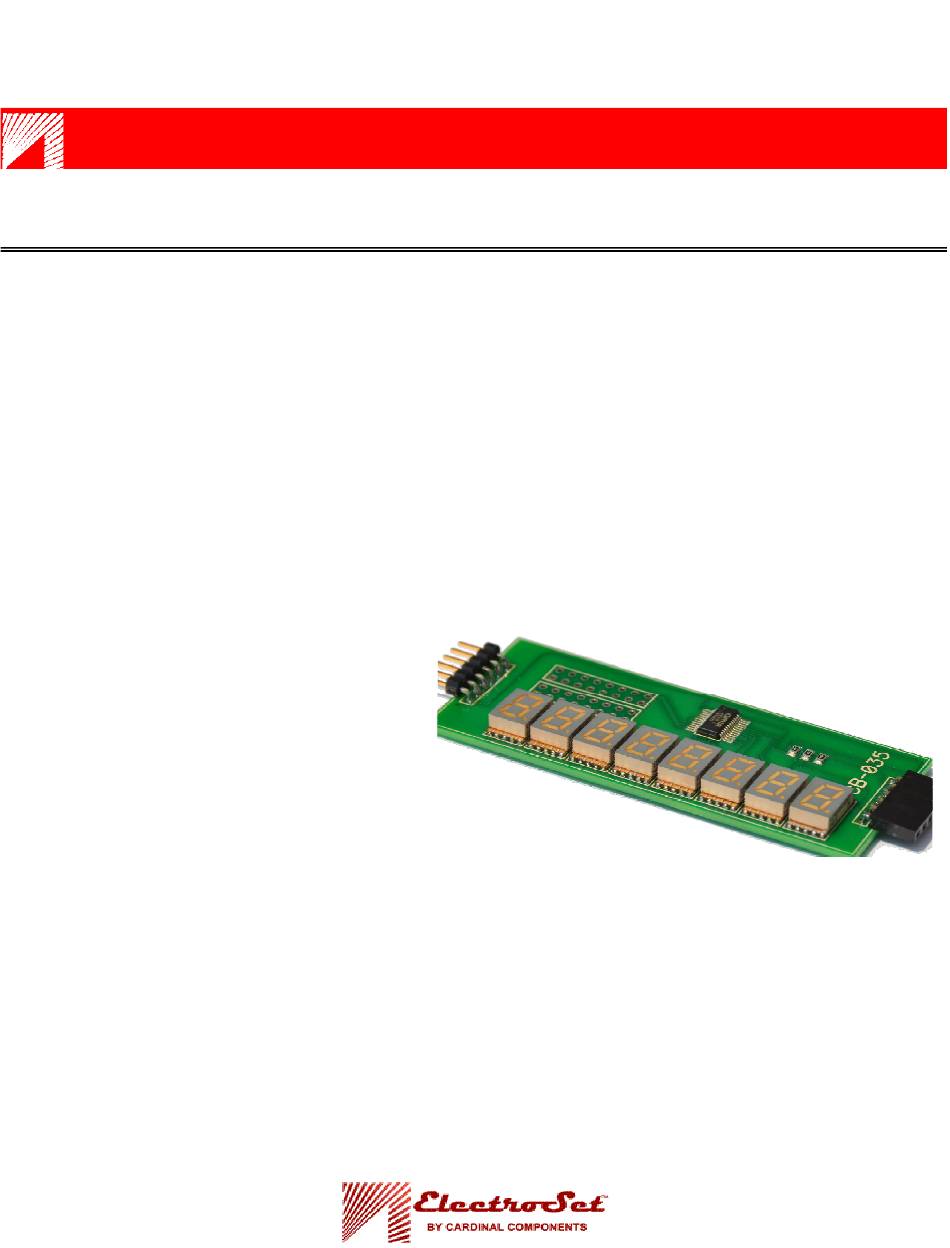

7 Segment LED
Overview
The CB-035 device is an, 8-digit 7-segment display.
Each segment can be individually addressed and updated separately using a 2 wire
interface. Only one external resistor (RSET) is required to set the current. LED brightness
can be controlled by analog or digital means.
The device include an integrated BCD code-B/HEX decoder, multiplex scan circuitry,
segment and display drivers, and a 64-bit memory. Internal memory stores the shift
register settings, eliminating the need for continuous device reprogramming.
Features
• 7 Segment Display
• 8 Digit LED Module
• Up to 1MHZ I²C Compatible
Interface
• Individual LED Segment Control
• Hexadecimal for 7-Segment Displays
• 200 nA Low-Power Shutdown
Current (type; data retained)
• Digital and Analog Brightness
Control
• Display Blanked on Power-Up
Basic Parameters
• Single Voltage Supply:3.3V
• Communication:
• Default Address:0x00
145 Rt. 46 West
Wayne, NJ 07470
Tel:(973) 689-9960
ElectroSet™
I²C compatible connection
CB-035
Module
rev. 1.01
I²C
E‐mail: sales@electro‐set.net
Web: www.Electro‐set.net
Advertisement
Summary of Contents for Cardinal Components ElectroSet CB-035
- Page 1 1 of 10 rev. 1.01 ElectroSet™ 7 Segment LED CB-035 Module Overview The CB-035 device is an, 8-digit 7-segment display. Each segment can be individually addressed and updated separately using a 2 wire I²C interface. Only one external resistor (RSET) is required to set the current. LED brightness can be controlled by analog or digital means.
- Page 2 2 of 10 rev. 1.01 ElectroSet™ Example Applications Functional Block Diagram • Device Display • Electronic meters • Digital clocks • IOT • Machine Data • Hobbyist/DiY 145 Rt. 46 West Wayne, NJ 07470 E‐mail: sales@electro‐set.net Tel:(973) 689-9960 Web: www.Electro‐set.net...
- Page 3 3 of 10 rev. 1.01 ElectroSet™ Configuration • The serial method requires only two pins for communication– SDA (serial I²C data) and SCL (serial clock). • The default slave address is factory-set to 0000000. •The Last bit of the address byte (R/W) define the operation to be performed.
- Page 4 4 of 10 rev. 1.01 ElectroSet™ DS7 DS6 DS5 DS4 DS3 DS2 DS1 DS0 145 Rt. 46 West Wayne, NJ 07470 E‐mail: sales@electro‐set.net Tel:(973) 689-9960 Web: www.Electro‐set.net...
- Page 5 5 of 10 rev. 1.01 ElectroSet™ Digit and Control Registers Address Register D15:D13 D7:D0 Digit 0 Digit 1 Digit 2 Table 1 Digit 3 Digit 4 Table2 Digit 5 Table 3 Digit 6 Digit 7 Decode Mode See Table 4 Global Intensity See Table 5 Scan Limit See Table 6 Shutdown See Table 7 Self Addressing Feature See Table 8 Display Test Mode See Table 9 DIG0:DIG1 Intensity See Table 10 DIG2:DIG3 Intensity See Table 10 DIG4:DIG5 Intensity See Table 10 DIG6:DIG7 Intensity See Table 10 145 Rt. 46 West ...
- Page 6 6 of 10 rev. 1.01 ElectroSet™ Code‐B Font Table 1 Char‐ Char‐ Register Data Char‐ Register Data Register Data D6:D4 D3 D2 D1 D0 D6:D4 D3 D2 D1 D0 D6:D4 D3 D2 D1 D0 acter acter acter The decimal point can be enabled with every character by setting bit D7 = 1 Table 2 HEX Font Char‐ Register Data Char‐ Register Data Char‐ Register Data D6:D4 D3 D2 D1 D0 D6:D4 D3 D2 D1 D0 D6:D4...
- Page 7 7 of 10 rev. 1.01 ElectroSet™ Table 4 Decode Enable Register Format Examples Register Data Decode Mode Hex Code D7 D6 D5 D4 D3 D2 D1 D0 No decode for digits 7:0 0x00 Code B /Hex decode fro digit 0,No decode for digits 7:1 0x01 Code B /Hex decode fro digit 0:2,No decode for digits 7:3 0x07 Code B /Hex decode fro digit 0:5,No decode for digits 7:6 0x3F Code B/Hex decode for digits 0,2,5 0x25 No Decode for digits 1,3,4,6,7 Table 5 Intensity Control Register (0x0A) Duty Cycle Hex Code Duty Cycle Hex Code D2 D1 D2 D1 1/16 (min on) 0xX0 9/16 0xX8 2/16 0xX1...
- Page 8 8 of 10 rev. 1.01 ElectroSet™ Table 7 Shutdown Register (0x0C) Register Data Mode Hex Code D7 D6 D5 D4 D3 D2 D1 D0 Shutdown Mode, 0x00 Reset Feature Register to Default Settings Shutdown Mode, Feature Register Unchanged 0x80 Normal Operation, 0x01 Reset Feature Register to Default Settings Normal Operation,Feature Register Unchanged 0x81 Table 8 Feature Register (0x0E) blink_ blink_ sync blink_en reg_res clk_en decode_sel start freq_sel Feature Register Bit Descriptions (0x0E) Feature Register Addr: 0xXE Enables and disables various device features Bit name Default...
- Page 9 9 of 10 rev. 1.01 ElectroSet™ Table 9 Display‐Test Mode (0x0F) RSET_short RSET_open LED_global LED_test LED_open LED_short Disp_test Testmode Registor Bit Description (0x0F) Addr: 0x0F Address Bit Name Default Access D7:D0 Optical display test. (Testmode for external visual test) Disp_test 0: Normal operation; 1 Run display test (All digits are tested indipendently from scan linit & shutdown register.) Starts a test for shorted LEDs. (Can be set together with D2) Led_short 0: Normal operation; 1: Activate testmode. Starts a test for open LEDs. (Can be set together with D1) Led_open 0: Normal operation; 1: Activate test mode Indicates an ongoing open/short LED test Led_test 0: No ongoing LED test; 1: LED test in progress Indicates that the last open/short LED test has detected an error Led_global 0: No error detected; 1: Error detected Checks if external resistor Rset is open RSET_open 0 Rset correct; 1: Rset is open Checks if external resistor Rset is shorted RSET_short 0: Rset correct; 1: Rset shorted ‐...
- Page 10 10 of 10 rev. 1.01 ElectroSet™ For More information regarding this Component http://www.ams.com/eng/content/download/18430/343782/file/AS1115_Datasheet_EN_v2.pdf 145 Rt. 46 West Wayne, NJ 07470 E‐mail: sales@electro‐set.net Tel:(973) 689-9960 Web: www.Electro‐set.net...
