The Amplink PDM is built on the strong reputation of the original PDM60 with added and improved
features to make 12V power distribution even easier.
Table of Contents
Wiring and App Setup Example 1
Wiring and App Setup Example 2
User Manual
2
2
3
4
4
5
8
9
10
11
Page 1 of 12
Advertisement
Summary of Contents for Amplink PDM60
-

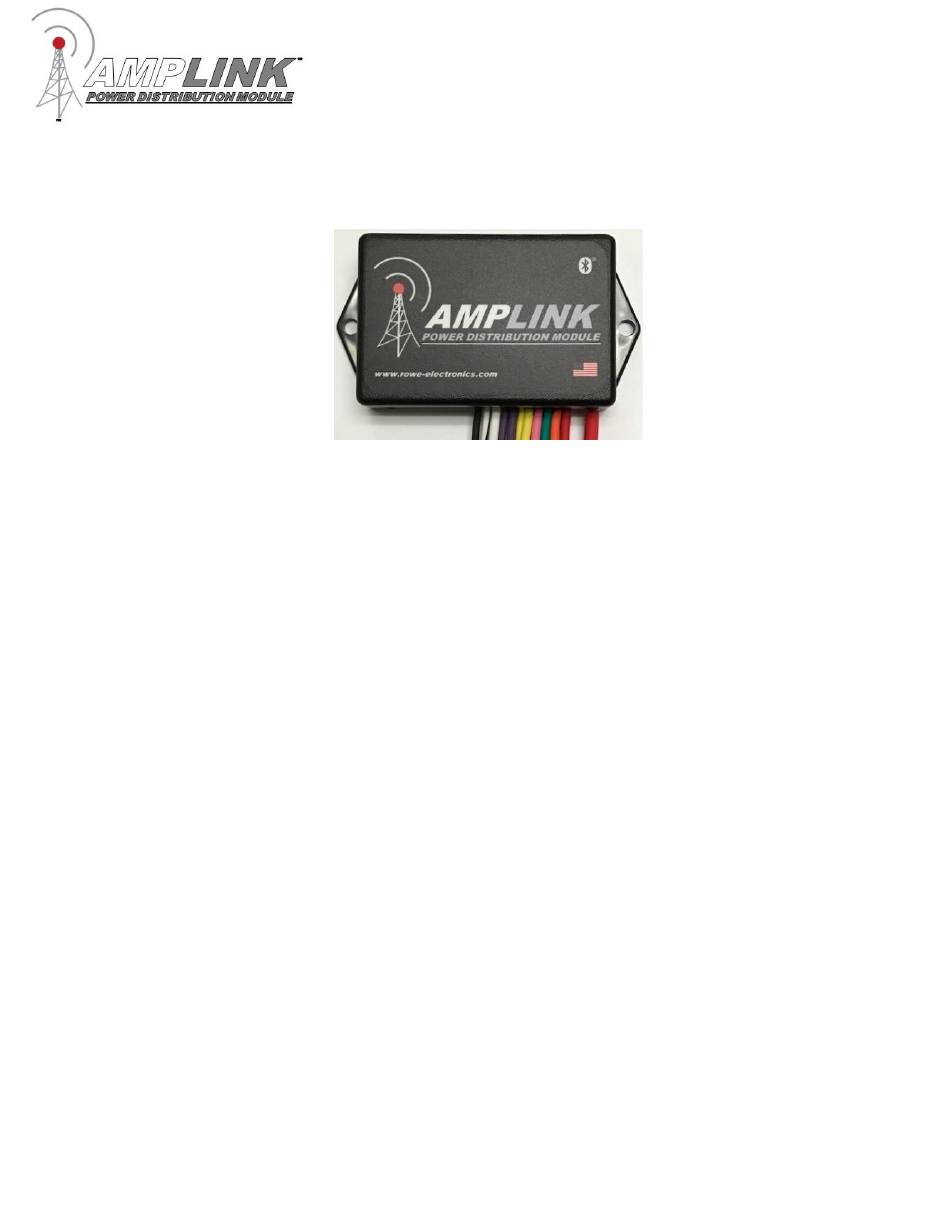

Page 1: Table Of Contents
User Manual The Amplink PDM is built on the strong reputation of the original PDM60 with added and improved features to make 12V power distribution even easier. Table of Contents Package Contents Specifications Device Overview Installation Basics Amplink PDM App... -
Page 2: Package Contents
Package Contents · 1 - Amplink Power Distribution Module · 1 - Ground bus kit with cover · 6 - ¼” ring terminal – for use on accessory ground wires connected to the ground bus · 1 - 6MM bolt & nut - used for connecting all accessory ground wires to the main ground bus ·... -
Page 3: Device Overview
Connect directly to the positive pole of the vehicle battery. Always connect the + before connecting ground. For additional protection, a high amperage fuse (not included) can be added between the Amplink PDM and the battery. To extend the length we recommend using 8 awg automotive crosslink wire. -
Page 4: Installation Basics
2. Determine a suitable location to mount the Amplink PDM near the battery 3. Connect the Amplink to the battery, red (+) wire first then the black (ground) wire 4. Open the App, wait for it to pair to the Amplink, then make your settings (See “App Connection Instructions”) 5. -
Page 5: App Connection Instructions
1. Ensure your Amplink PDM is powered on as indicated by the green LED 2. Check to make sure Bluetooth on phone is powered on. DO NOT connect to the Amplink from within your phone’s settings, this will block the app from being able to pair with your Amplink... - Page 6 If you are running iOS and the app asks for Bluetooth permissions click “Allow” or “OK”. These permissions are needed to connect to the Amplink. If an option to rescan appears after granting permissions click “Yes” and allow the app to rescan for the Amplink.
- Page 7 5. Wait for the app to find the Amplink device. If you are on iOS the app will ask if you would like to pair to Amplink, this will allow the app to start communicating with the Amplink device. Click “Pair”. On Android you may get a notification labeled “Pairing Request”, click “Pair &...
-
Page 8: App Connection Troubleshooting
“Forget”. Then open the app back up and try again. • If you have an Amplink with a serial number less or equal to 56027415 and on iOS, your app continues to search for more than 20 seconds or on Android, you get a “Connection Lost” error after a blank screen. -
Page 9: App Overview
App Overview Monitor This page will allow you to monitor the current state of the Amplink device. The app will always open to the Monitor page. The colored bars match the wire color of the corresponding output on Amplink PDM. The output status is indicated by either a green dot for ON, red dot for fault, or gray dot for OFF. - Page 10 Red (+) wire to the battery before the black ground. 12 V battery Ignition switched + 12 V source Configure the Amplink PDM using the App Configure the trigger page as On the Setup page tap each In the Configuration page set shown, then proceed to the output to open the configuration the triggers as shown.
- Page 11 Ignition switched +12V source Horn Trigger 2 button Horn + 12 V Configure the Amplink PDM using the App Configure the trigger On the Setup page tap In the Configuration In the Configuration page as shown, then each output to open...
- Page 12 Thank you for purchasing the Amplink PDM For questions please contact us through the rowe-electronics.com website or call 515-981-5504. WARRANTY POLICY We warrant our products to be free from manufacturing and material defects for a period of one year from the date of purchase. Proof of purchase is required for warranty claims.
