Summary of Contents for JWB Company Leak Minder LDA-1B

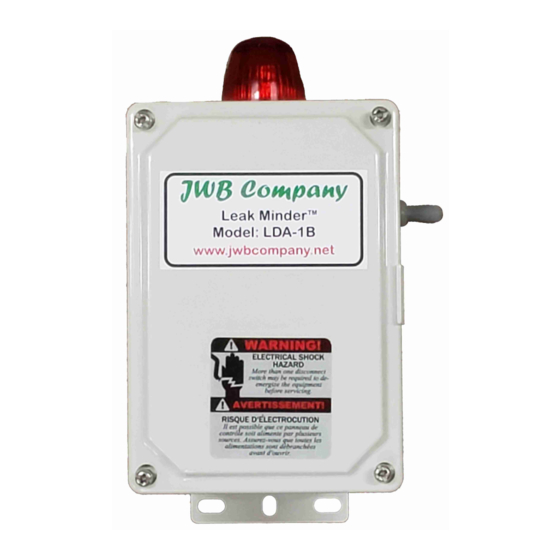

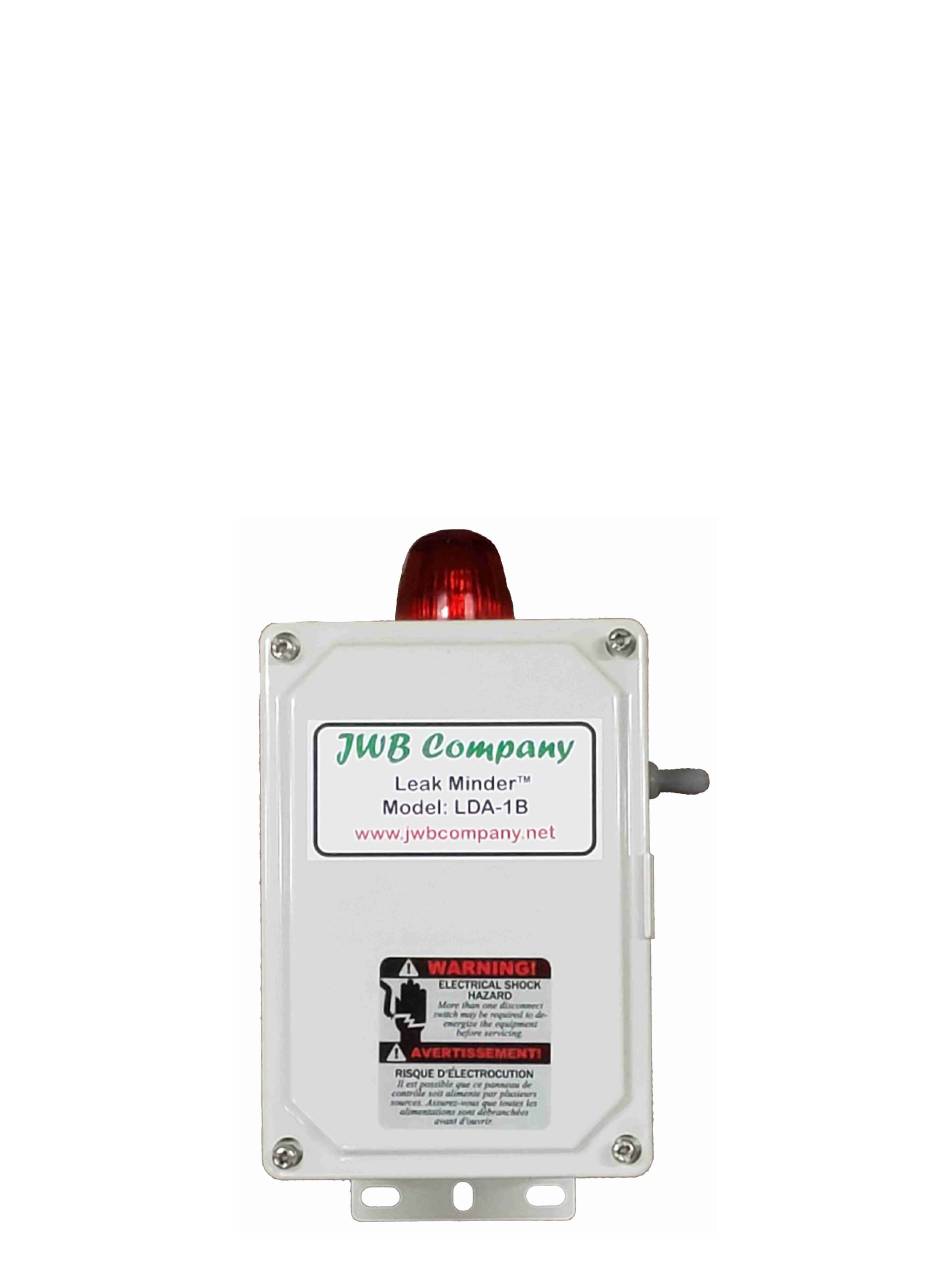

- Page 1 JWB Company Leak Detection System ® Leak Minder ™ Model: LDA-1B www.jwbcompany.net Instruction Manual...
- Page 2 ® Leak Minder ™ LDA-1B Leak Detection System Instructions PLEASE READ ALL INSTRUCTIONS BEFORE INSTALLATION Checklist of Materials: a) Leak detection system in NEMA 4X PVC enclosure with alarm horn, alarm indication light, and a test/silence switch. b) Leak detection probe with 20 feet of cable Operation: The leak detection system will sound a loud speaker/horn and illuminate a bright red light when a switch signal is detected from the leak detection probe.
- Page 3 Leak Detection System Wiring Details Close Up View Alarm Contact Output Test / Silence Switch Probe AC Power (Probe) Wiring Diagram Sensor Relay Contacts Normally Open 120VAC Normally Closed...
- Page 4 Fax: (203)879-7299 Warranty Policy JWB Company warrants equipment of its own manufacture to be free from defects in material and workmanship, under normal conditions of use and service, and will replace any component found to be defective, on its return to JWB Company within one year of its original purchase.
