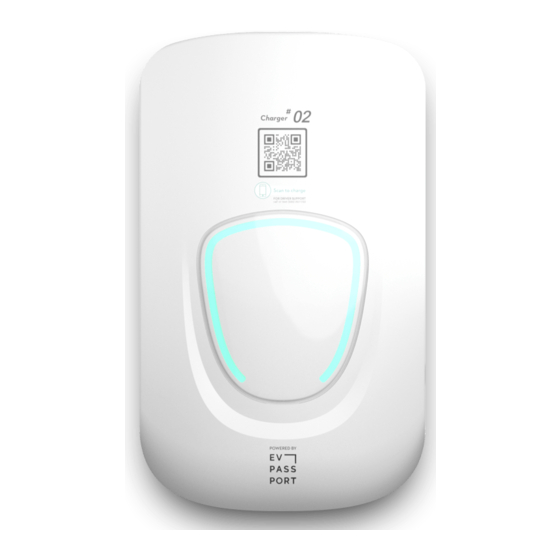

Summary of Contents for EVPassport Howard 19kW
- Page 1 Howard 19kW EV Charger Installation Guide COPYRIGHT © 2021 EVPassport, Inc.
-
Page 2: Table Of Contents
Howard Installation Guide Contents Important Safety Instructions Specification Introduction Unpacking Preparation Installation... -
Page 3: Important Safety Instructions
Howard Installation Guide Important Safety Instructions • Read this manual thoroughly and make sure you understand the procedures before you attempt to install or operate this equipment. • This product is intended for charging vehicles only. • This product shall be installed, adjusted, and serviced by qualified electrica personnel. - Page 4 Howard Installation Guide Electric Shock Prevention Measures • Do not expose the live part of this product and its cables. • This product must be grounded through a permanent wiring system or an equipment gronding conductor. • Install circuit breakers to reduce the severity of electric shock accidents. •...
- Page 5 Howard Installation Guide Warning • The instructions and warnings contained in this manual must be followed when installing, using, and maintaining this product. • This device should be supervised when used around children. • Do not put finders into the electric vehicle connector. •...
- Page 6 Howard Installation Guide Caution • Incorrect installation of and testing on this product could potentially damage either the vehicle’s battery and/or this product. Any resulting damage hereof invalids the warranty for the product. • Operate the product in the temperature range specified in the specification. •...
- Page 7 Howard Installation Guide FCC Declaration of Conformity – Class A This device complies with Part 15 of the FCC Rules. Operation is subject to the fol- lowing two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 8 Howard Installation Guide Return for Service If you encounter operational or other problems with the charger that cannot easily be fixed, contact your local dealer. If the problem requires return for service, please follow the dealer’s instructions for return of the product. Save These Instructions The purpose of this manual is to provide you with information necessary to safely install, operate and maintain this equipment.
-
Page 9: Specification
Howard Installation Guide Specification... - Page 10 Howard Installation Guide Specification...
-
Page 11: Introduction
Howard Installation Guide Introduction (1) For single phase 120/240 - (2) For 3 Phase WYE Configurations: Utilizing any of L-L Utilizing 240V (L-L) Single phase 120/240 is a common source for AC In the USA the most common configuration is power to household clothes driers. -
Page 12: Unpacking
Howard Installation Guide LED DISPLAY Simple, easy to understand LED indicators show charger status. Unpacking 1. Verify the components according to the following list. 2. Keep the packaging material for possible future transportation or storage. Preparation Tools and parts required for installation... - Page 13 Howard Installation Guide Open the front cover 1. Locate the fixing torx screw on the bottom side of the cover. Using a T20 torx screwdriver, unscrew the fixing screw of the cover. 2. Hold and lift the cover from the bottom end. 3.
- Page 14 Howard Installation Guide Drill the mounting holes (NOTE: For how to access to the back panel area, please see page 20) 1. There are 4 holes which need to be drilled to mount your EV Charger to the wall. The 4 holes can be found as shown on the right. 2.
-
Page 15: Installation
Howard Installation Guide Installation (The practice recommended here may vary from the actual installation and is subjected to proper adjustment depending on the circumstances, local building codes, or state regulations.) Wall mounting 1. Make sure you have: - Drill the input cable hole and the mounting holes on your charger. - Page 16 Howard Installation Guide Cable Connection Use following wire and torque force when connecting to the input terminal block, using conductor type other than RHH, RHW and RHW-2 with outer and Wiring covering. If the cable comes from the back The cable will enter straight into the cable terminal cabinet. Secure the 3 wires to the corresponding terminals as shown on the left.
- Page 17 Howard Installation Guide RJ45 cable Installation (If necessary) Access to the cable gland 1. Using a Torx screwdriver, unscrew the 2. Take off the box cover. eight philips screws as shown below. 3. Using a M4 philips screwdriver, unscrew the four philips screws as shown below to release the electrical box.
- Page 18 Howard Installation Guide Insert a RJ45 cable...
- Page 19 Howard Installation Guide 7. Screw the outer cap back to its place. 8. Plug the RJ45 head to the RJ45 port. 9. Install the elctrical box and its cover back into their places. NOTE: You will need to drill a hole to let the cable go into the unit. For example:...
- Page 20 Howard Installation Guide install@evpassport.com 19 Morris Avenue Brooklyn Navy Yard, Building 128 Brooklyn, NY 11205...
