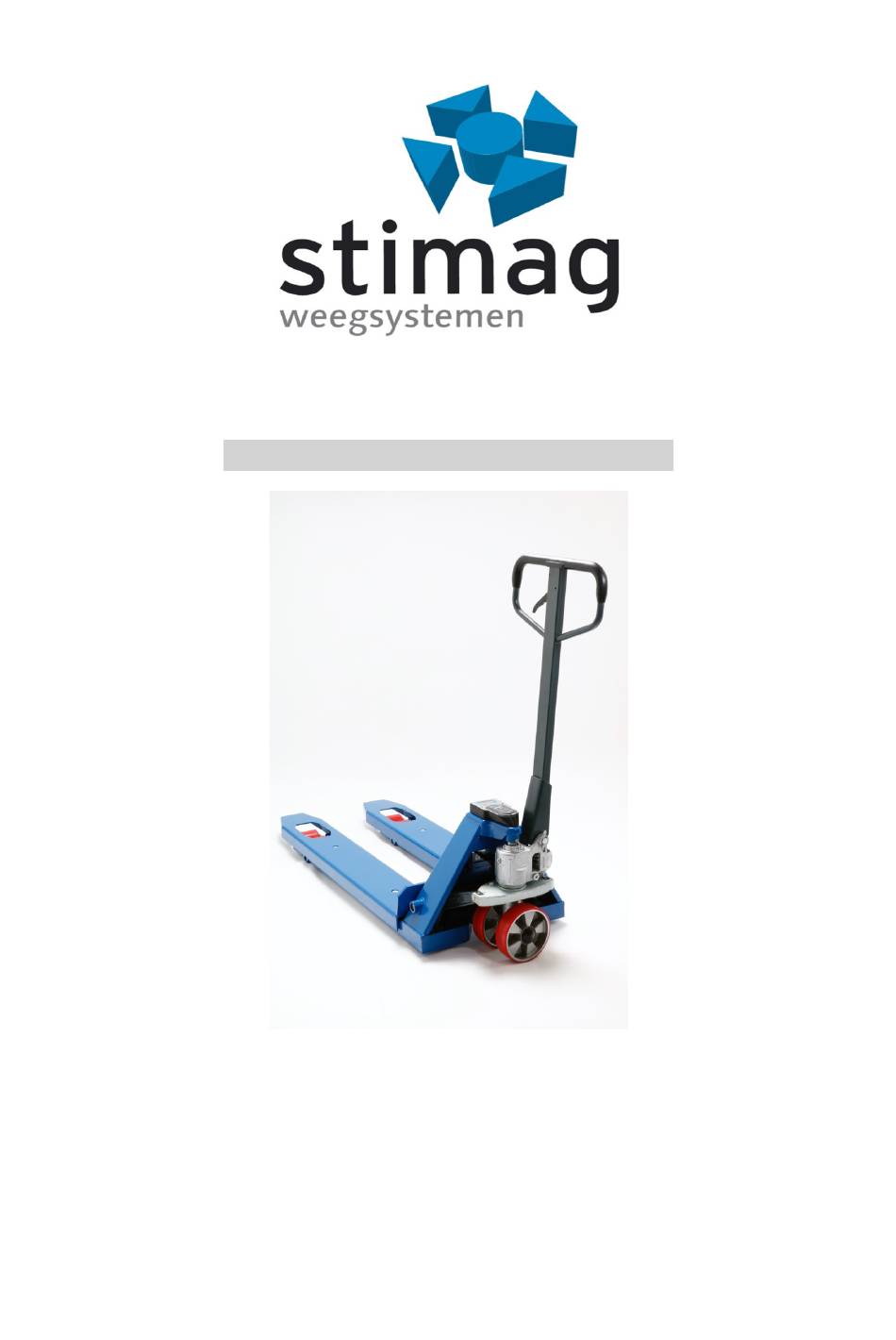

- Page 1 GEBRUIKSAANWIJZING STL-H/SW Stimag B.V. Meer en Duin 64a 2163 HC Lisse Tel. 088-4224410 www.stimag.nl Voor verdere vragen kunt u contact met ons opnemen...
- Page 2 Operation 1. Turn on Press ON/OFF It shows software version > battery level > and then goes into self-check end zero initialization. Then starts to normal weighing mode.
- Page 3 2. Turn off Press ON/OFF for 1,5 seconds, it will show battery level “Pbt80” (means 80% battery level). After 2 seconds it will show “-OFF-“ and will turn off 3. Zero Zero function is not allowed when under Tare state. Press <0> the indicator shows FALL. If weight is in zero range, 3% of FS and stable press <0>...
- Page 4 5. Unit switch Press <0> and “Tare” at the same time, the weighing unit will be switched between kg and lb.
- Page 5 Setup 1. Enter setup mode To enter setup mode press and hold <0> followed by pressing ON/OFF. Release the two buttons after power on. When the indicator shows -EnC- press <0> to enter the setup mode. 1. Divisions, select the division, change value by pressing “Tare”.
- Page 6 4. Sleep/power off mode F ABCD A=0, sleep mode off, A=1 sleep mode on B=0, auto-off mode off, B=1 auto-off mode C= not in use D= not in use Change value. Press <0> to change digit to the right. Press “Tare” to increase Confirm with ON/OFF Indicator will return in normal weighing mode.
- Page 7 Battery Battery Use 3x AA size battery. Open the battery compartment by unscrewing the two screws as indicated. Install the battery’s with the polarity as show in the battery compartment.
- Page 8 The backlight will work automatically when the weight is changing. It will go off when the weight is stable for 8 seconds. If the weight is stable for 3 minutes the scale will go into sleep mode to save power. Once the weight is changed or the scale has any operation it starts to work normally Note: Sleep mode is only working when the scale is in zero range.
- Page 10 Hand Pallet Truck INSTRUCTION MANUAL (AC Series) WARNING THE MANUFACTURER SHALL NOT BE HELD LIABLE IN CASE OF FAULTS OR ACCIDENTS DUE TO NEGLIGENCE, INCAPACITY, INSTALLATION BY UNQUALIFIED TECHNICIANS AND IMPROPER USE OF THE MACHINE DO NOT OPERATE THIS MACHINE UNTIL YOU READ AND UNDERSTAND ALL THE DANGERS,WARNINGS AND CAUTIONS IN THIS MANUAL...
-
Page 11: Table Of Contents
Contents Chapter 1 Introduction Chapter 2 General Specifications Chapter 3 To Attach Draw-bar To Pump Unit Chapter 4 To Adjust Release Device Chapter 5 Maintenance Chapter 6 Guide To Safety Operation Chapter 7 Troubles Shooting Chapter 8 Spare Parts List... -
Page 12: Chapter 1 Introduction
Page 1 of 13 Chapter 1 Introduction Thank you for using our pallet truck. Your pallet truck is made of high quality steel and is designed for the horizontal lifting and transport of loads on a pallet or standardized containers on a level, fixed base. For your safety and correct operation, please carefully read this instruction before using it. - Page 13 Page 2 of 13 NOTE: The number of draw-bar and pump should be the same. 1. Draw-bar 2. Pin 3. Axle with hole 4. Elastic pin 5. Fork frame Fig. 1 When attaching the handle, you had better squat just behind the pallet truck. Then you: 3.1 Insert the draw-bar onto the pump piston (A346), then use a hammer to insert the axle with hole (A105) into the hydraulic pump and draw-bar from the right to left.
-
Page 14: To Adjust Release Device
Page 3 of 13 3.3 Press the draw-bar (A110, A110B) down, take away the pin(#2) (See Fig. 1). 3.4 Let the control handle (A117) on ‘RAISE’ position, then raise the lever plate (A315) with the pin (#2) and insert the adjusting bolt(A103) into the front slot of lever plate (A315), note to keep the adjusting nut (A104) on the under side of the lever plate. -
Page 15: Guide To Safety Operation
Page 4 of 13 Daily check of the pallet truck can limit wear as much as possible. Special attention should be paid to the wheels, the axles, as thread, rags, etc. It may block the wheels. The forks should be unloaded and lowered in the lowest position when the job is over. 5.4 LUBRICATION All bearings and shafts are provided with long-life grease at the factory. -
Page 16: Troubles Shooting
Page 5 of 13 Chapter 7 Troubles Shooting Trouble Clause Fixing Methods forks can not be -The hydraulic -Pour in the oil. up the max. enough. height. -Without hydraulic oil. -Fill in the oil. forks -The oil has impurities. -Change the oil. can not be -The nut (114) is too high, -Adjust the nut(A104) or screw... - Page 17 Page 6 of 13...
-
Page 18: Spare Parts List
Page 7 of 13 Chapter 8 Spare Parts List... - Page 19 Page 8 of 13 LIST of DRAW-BAR Description Qty. Remark A101 Release Rod A102 Chain A103 Adjusting Bolt A104 Adjusting Nut A105 Axle with Hole A106 Elastic Pin A107 Bushing A108 Roller Pin A109 Pressure Roller A109A Elastic Pin A110 Draw-bar For Type A A110B...
- Page 20 Page 9 of 13 LIST OF FORK FRAME Description Qty. Description Qty. A201 Fork Frame A216 Shaft A202 Bolt A217* Elastic Pin A203 Rock-Arm A218* Linking Plate A204 Shaft A219 Shaft for Roller 1or4 A205 A221 Washer 8or4 A206 Retaining Ring A222 Bearing 8or4...
- Page 21 Page 10 of 13 Type A pump...
- Page 22 Page 11 of 13 Type A pump Description Description ntity ntity A301 Steel Ball A327 Bolt A302 Seal Washer A328 Pump Body A303 O-Ring A329 Spring Seat of pumping A304 A330 Strike pin valve A305 Sleeve A331 O-Ring Spindle of pumping A306 A332 Axle Sleeve...
- Page 23 Page 12 of 13 Quick Lifting Pump...
- Page 24 Page 13 of 13 QUICK LIFTING HYDRAULIC PUMP Description Qty. Description Qty. A301 Steel Ball A327 Bolt Pump for Quick A302 Seal Washer A328 Lifting A303 O-Ring A329 Spring A304 Seat of pumping valve A330 Strike pin A305 Sleeve A331 O-Ring A306 Spindle of pumping valve...
