ClareOne CLR-C1-GB-10 Installation Manual

ClareOne Glass Break Detector
CLR-C1-GB-10

Description

The CLR-C1-GB-10 is a glass break detector
designed to detect breaking glass made by an
intruder breaking a window. The glass detector
contains an acoustic detection device that
detects sounds when glass is broken. The
detection circuit uses an omni directional
microphone to maximize coverage.
When activated, the detector transmits a signal
to the Clare control panel. The signals the unit
provides are: supervisory, tamper and low
battery (as needed). The detector is powered by
(2) replaceable 3-VDC, lithium CR123A.

Installation Guidelines

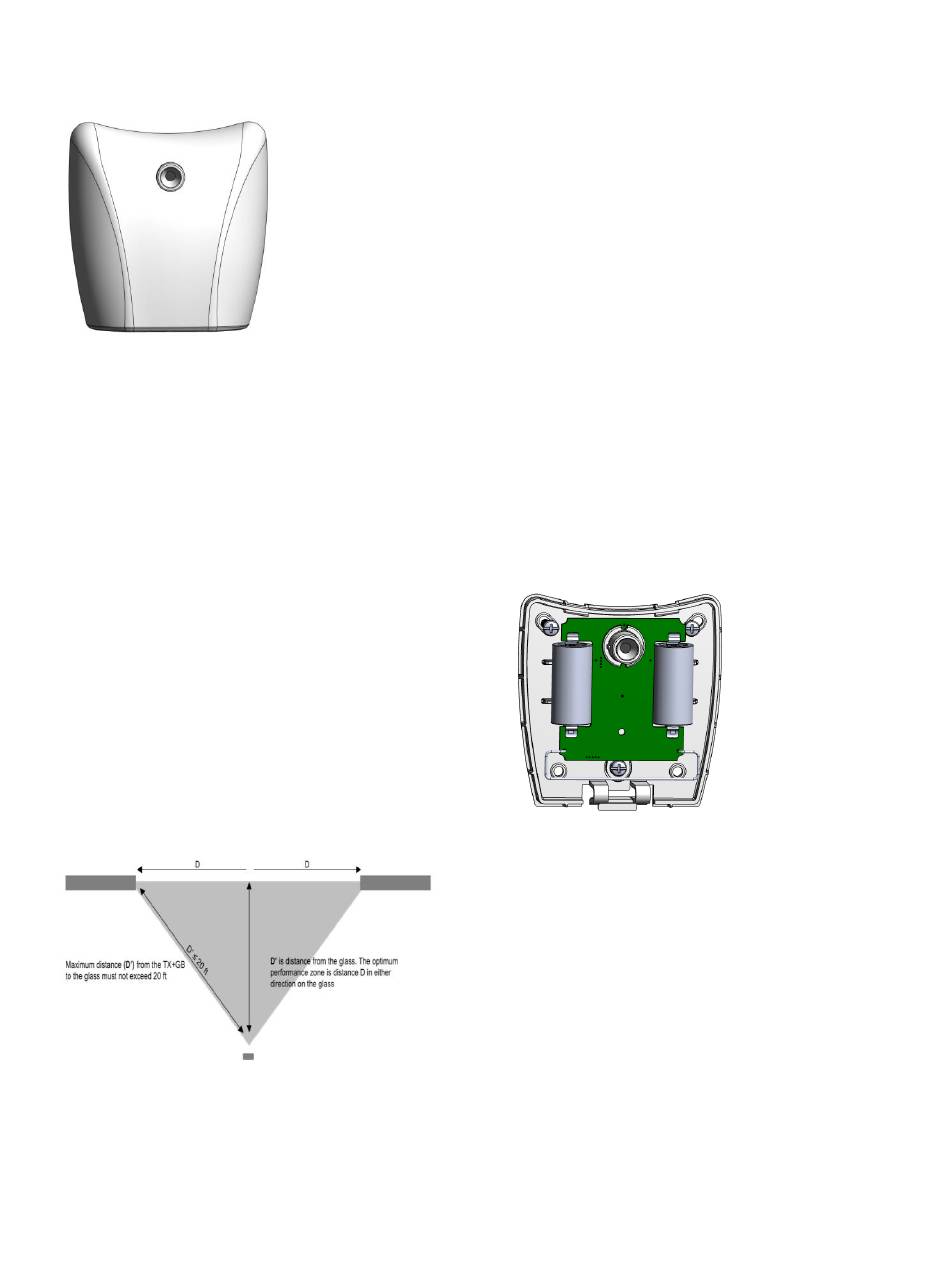

The maximum detection range is 20' (6 m) for
plate, tempered, laminated and wired glass.)
Coverage is measured from the sensor to the
point on the glass farthest from the sensor (see
D and D' in Figure 2 below).
Note: The Glassbreak Detector may not consistently
detect cracks or breaks in glass. Glassbreak
Detectors should always be backed up by additional
methods of interior protection.
Installation Manual
•
For best detection, avoid installing in rooms
with lined, insulating, or sound deadening
drapes or rooms with closed wooden
window shutters inside.
•
Do not use near an air conditioner; a blast of
air may cause a false alarm.
•
Avoid stairwells, glass booths and all rooms
smaller than 10' x 10' (3m x 3m).
•
Do not install in humid rooms, excessive
moisture can possibly damage the circuit
board.

Mounting

Screw Mount
1. Remove the detector base from the detector.
2. Place the detector base in desired location
and mount the base with the supplied screws.
Attach the detector to the base.

Testing

LED's
Yellow flashing – low battery
Red – Wake-up and Alarm
•
Test mode is entered automatically when
batteries are inserted. The LED activates on
glass simulator activation and goes out upon
device restoral.
•
LED is functional only in test mode.
•
Test mode is active for 1 minute and is
extended each time the glass is activated.
RF-CLR-C1-GB-10 IM V1 05042020
