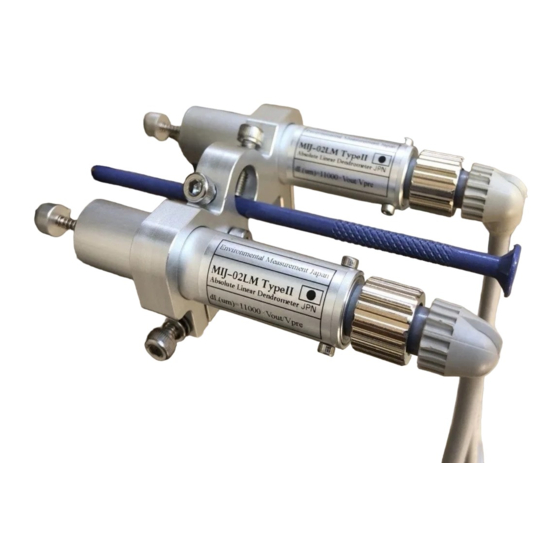

Dendrometer MIJ-02 LM Manual
This manual explain how to install the MIJ-02 LM.
Purpose of using LM
・Measure the growth of sapwood and the bark movement by rainfall.
・Measure sapwood and also the thermal expansion of heart wood.
These purose will be change by type of tree:
Rings porous wood:
・Measure the growth of sapwood and the bark movement by rainfall.
・Measure sapwood and also the thermal expansion of heart wood.
Diffuse porous wood:
・Measure the growth of sapwood and the bark movement by rainfall.
Preparation
Before install MIJ-02 LM, please prepare follwing equopments.
1.Drill
2.Long Drill Bit
3.Square Bit
4.Long Screwl
5.LM Sensor
6.MIJ-02 Bracket
7.Cable
