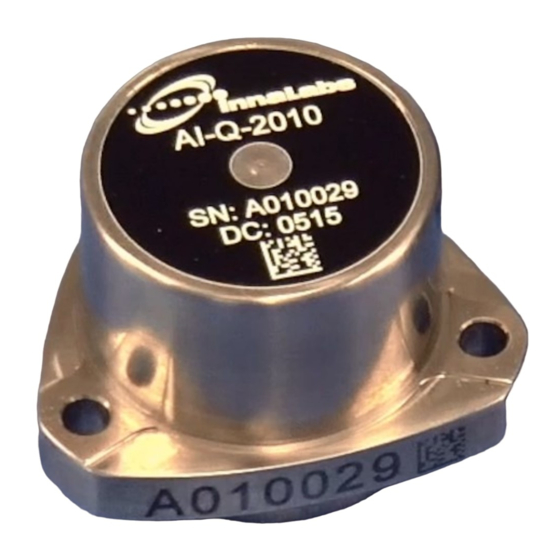

Summary of Contents for INNALABS AI-Q-2010
- Page 1 AI-Q-20X0 Accelerometers User Manual IN-IR-MPD-72-256 Rev 1.0 22/09/2015 Quartz Accelerometer AI-Q-2010 AI-Q-2020 AI-Q-2030 USER MANUAL Revision 1.0 Page 1 of 31 INNALABS PROPRIETARY INFORMATION www.innalabs.com...
- Page 2 The information contained within this user manual (the “Documentation”) is proprietary to InnaLabs, and is intended solely for the use of InnaLabs customers, in the design or development of systems whose purpose is to operate using InnaLabs inertial sensors. You may not reproduce, distribute, republish, download, display,...
- Page 3 AI-Q-20X0 Accelerometers User Manual IN-IR-MPD-72-256 Rev 1.0 22/09/2015 This user manual supports the following INNALABS accelerometer part numbers: AI-Q-2010 AI-Q-2020 AI-Q-2030 Quartz Pendulous Accelerometers Technical and performance specifications, interface data and mounting guidelines are included. Throughout this document, AI-Q-20X0 refers collectively to the 3 different part numbers AI- Q-2010, AI-Q-2020, and AI-Q-2030.
-
Page 4: Table Of Contents
Start-up time ............................19 Warm-up time ............................ 20 Input Acceleration and input Acceleration Limits ................20 Scale factor ............................20 Bias ..............................21 Frequency response and bandwidth ....................22 3.10 Vibration Sensitivity ........................... 23 Page 4 of 31 INNALABS PROPRIETARY INFORMATION www.innalabs.com... - Page 5 5. PRODUCT MARKING ......................26 6. PACKAGING AND TRANSPORT................... 27 7. ACCEPTANCE TEST ........................ 27 8. ACCEPTANCE TEST CERTIFICATE ..................29 9. TECHNICAL SUPPORT ......................29 APPENDIX A – LIMITED WARRANTY ON HARDWARE ............30 Page 5 of 31 INNALABS PROPRIETARY INFORMATION www.innalabs.com...
-
Page 6: Introduction
(up to 4 order), and is focussed on fulfilling the operational requirements of inertial systems which require navigation grade performance, low output noise, large bandwidth, small size, low weight and high reliability. Page 6 of 31 INNALABS PROPRIETARY INFORMATION www.innalabs.com... -
Page 7: Product Performance
Ø 25.45 Max Ø 25.45 Max Height – bottom to mounting surface 14.85 Max 14.85 Max 14.85 Max 300 Series Stainless 300 Series Stainless 300 Series Stainless Case Material Steel Steel Steel Page 7 of 31 INNALABS PROPRIETARY INFORMATION www.innalabs.com... -
Page 8: Technology Description
E C H N OL O G Y D E SC RI PT I O N The core of the proof (or seismic) mass of InnaLabs® pendulous accelerometers is a high purity fused quartz disc structure connected to a rigid outer frame by two thin hinges (Figure 1). - Page 9 This current is output on the Signal Out pin as the acceleration signal. Typically, a precision resistor is used externally to the accelerometer to convert the current output to a voltage. Page 9 of 31 INNALABS PROPRIETARY INFORMATION www.innalabs.com...
-
Page 10: Interfaces
The reference document [RD2] provides all necessary information about the AI-Q-20X0 mechanical interfaces. LE C T RIC A L N TE R FA C E A ND I RI NG The AI-Q-20X0 has ten connection pins, as shown in Figure 5, below. Page 10 of 31 INNALABS PROPRIETARY INFORMATION www.innalabs.com... - Page 11 -10 V DC Analogue Voltage output, section 2.2.5 +10 V DC Analogue Voltage output, section 2.2.5 2.2.1 Electrical Connection The diagram in Figure 6 shows the connections to the accelerometer for normal operation. Page 11 of 31 INNALABS PROPRIETARY INFORMATION www.innalabs.com...
- Page 12 Parameters of the internal temperature sensor are shown in the table below. Values Parameters Units Typical Maximum Nominal Current Output at 30 °C µA 303.2 Nominal Temperature Coefficient µA/°C Calibration Error @ 30 ° °C ±5.0 Nonlinearity °C ±1.5 Repeatability °C ±0.1 Page 12 of 31 INNALABS PROPRIETARY INFORMATION www.innalabs.com...
- Page 13 2.2.5 Test Functionality The AI-Q-20X0 has three options for test functionality: the current torque connection (pin 2), the voltage self-test connection (pin 7) and the voltage output pins (pins 9 and 10). Page 13 of 31 INNALABS PROPRIETARY INFORMATION www.innalabs.com...
-
Page 14: Mass
In normal operation, these pins should be left unconnected, as loading these pins can affect the operation of the accelerometer. A S S The mass of the AI-Q-20X0 accelerometers is 71 g ±4 g. Page 14 of 31 INNALABS PROPRIETARY INFORMATION www.innalabs.com... -
Page 15: Mounting
Load resistor (R ), up to 10 kΩ MEAS A voltmeter / oscilloscope 2.5.2 Test Procedure Place the AI-Q-20X0 on a flat surface with the connector pins facing up. Page 15 of 31 INNALABS PROPRIETARY INFORMATION www.innalabs.com... - Page 16 Connect the voltmeter / oscilloscope across pins 1 (Signal Out) and 8 (Signal/Power Return) of the AI-Q-20X0 interface connector to test Wires can be connected to the accelerometer using a test connector (InnaLabs can provide these connectors on request), or by soldering wires directly to the pins. If soldered connections are used, this should be done as per the state of the art, in such a way as to avoid short circuits between pins.
-
Page 17: Electrical Characteristics
With a scale factor of 1.46 mA/V, a 147 Ω (or less) resistor is required at ±28 V in order to meet the full measurement range. The absolute acceleration limit over temperature is dependent on the range of the parameters in the equation above. Page 17 of 31 INNALABS PROPRIETARY INFORMATION www.innalabs.com... -
Page 18: Functional Characteristics
The unpowered shock limit of the AI-Q-20X0 is 250 g in any axis Preventing Electrical Damage Do not touch or make connections to the unit with the power on. Doing so may damage the unit and/or cause injury to personnel Page 18 of 31 INNALABS PROPRIETARY INFORMATION www.innalabs.com... -
Page 19: Error Model
�� Un-modelled error (g) ������(��) 9.81792 m/s at InnaLabs Dublin (IRELAND) 3.3.2 Thermal Modelling The accelerometer performance over temperature is modelled for bias, scale factor and misalignment using polynomial functions (first to fourth order), generated using the least- squares method. -
Page 20: Warm-Up Time
The scale factor one year composite repeatability parameter is the overall variation arising from a number of different errors, including hysteresis and ageing, and under some specific external conditions. The mission profile considered is based on two full-range temperature cycles per month. Page 20 of 31 INNALABS PROPRIETARY INFORMATION www.innalabs.com... -
Page 21: Bias
After the warm-up phase, at 30 °C: In-run stability ≤ 0.1 µg rms at 20 s to 100 s 3.8.4 Velocity random walk After the warm-up phase, at 30 °C: 14 µg.s/hr (typical) Page 21 of 31 INNALABS PROPRIETARY INFORMATION www.innalabs.com... -
Page 22: Frequency Response And Bandwidth
The frequency response of the AI-Q-20X0 along the sensitive axis, IA fulfils: �������� − 3 ���� ���������� ≥ 300 ���� ��ℎ������ − 90° ���������� ≥ 300 ���� Figure 13 and Figure 14 show typical gain and phase responses of the AI-Q-20X0. Page 22 of 31 INNALABS PROPRIETARY INFORMATION www.innalabs.com... -
Page 23: Vibration Sensitivity
I SA L IG NME NT 3.11.1 Misalignment at 30 °C The misalignment absolute value at 30 °C (input axis, IA, relative to pendulous, PA, and output, OA, axes): δ δ ≤ 2 mrad Page 23 of 31 INNALABS PROPRIETARY INFORMATION www.innalabs.com... -
Page 24: Environmental Conditions
E C H A NI C A L E N V I R ON M E N T When rigidly fixed to an appropriate mount, the AI-Q-20X0 can be subjected to the following mechanical environments without damaging the unit. Page 24 of 31 INNALABS PROPRIETARY INFORMATION www.innalabs.com... - Page 25 5 Hz to 2 000 Hz Powered random vibration profile as per below table (X, Y, Z directions, 3 min per axis), with 14 g Amplitude Frequency 0.0985 g 5 Hz to 2 000 Hz Page 25 of 31 INNALABS PROPRIETARY INFORMATION www.innalabs.com...
-
Page 26: Emi - Emc
Figure 15 – AI-Q-20X0 Sine Vibration Profile 4.4.4 Drop Not applicable. EMI - EMC The AI-Q-20X0 is not ESD or EMC/EMI protected. RODUCT MARKING The AI-Q-20X0 is engraved with the following information: The InnaLabs logo Page 26 of 31 INNALABS PROPRIETARY INFORMATION www.innalabs.com... -
Page 27: Packaging And Transport
ESD protection is required during shipping. CCEPTANCE The following tests are carried out through the product Acceptance Test Procedure (ATP) on all accelerometers delivered: Page 27 of 31 INNALABS PROPRIETARY INFORMATION www.innalabs.com... - Page 28 Misalignment Nominal Value @ 30 °C 3.11 100 % µrad ≤±2,000 Misalignment Thermal Sensitivity 3.11 100 % µrad/°C ≤±3 Quiescent Noise at 100 Hz 3.8.5 100 % µA ≤10 Coil Resistance 100 % Ω 155 to 185 Page 28 of 31 INNALABS PROPRIETARY INFORMATION www.innalabs.com...
-
Page 29: Acceptance Test Certificate
Scale Factor 1 and 4 Order Thermal Model Misalignment 1 and 4 Order Thermal Model ECHNICAL UPPORT For technical support please email your question or a description of your problem to contact.sales@innalabs.com Page 29 of 31 INNALABS PROPRIETARY INFORMATION www.innalabs.com... -
Page 30: Appendix A - Limited Warranty On Hardware
If the Buyer discovers a defect or non-compliance in performance in the Product covered in this limited warranty, InnaLabs will, at its option repair or replace the Product at no charge to the Buyer, or refund the purchase price paid for the product. - Page 31 AI-Q-20X0 Accelerometers User Manual IN-IR-MPD-72-256 Rev 1.0 22/09/2015 END OF DOCUMENT Page 31 of 31 INNALABS PROPRIETARY INFORMATION www.innalabs.com...
