Summary of Contents for Elipta E4111

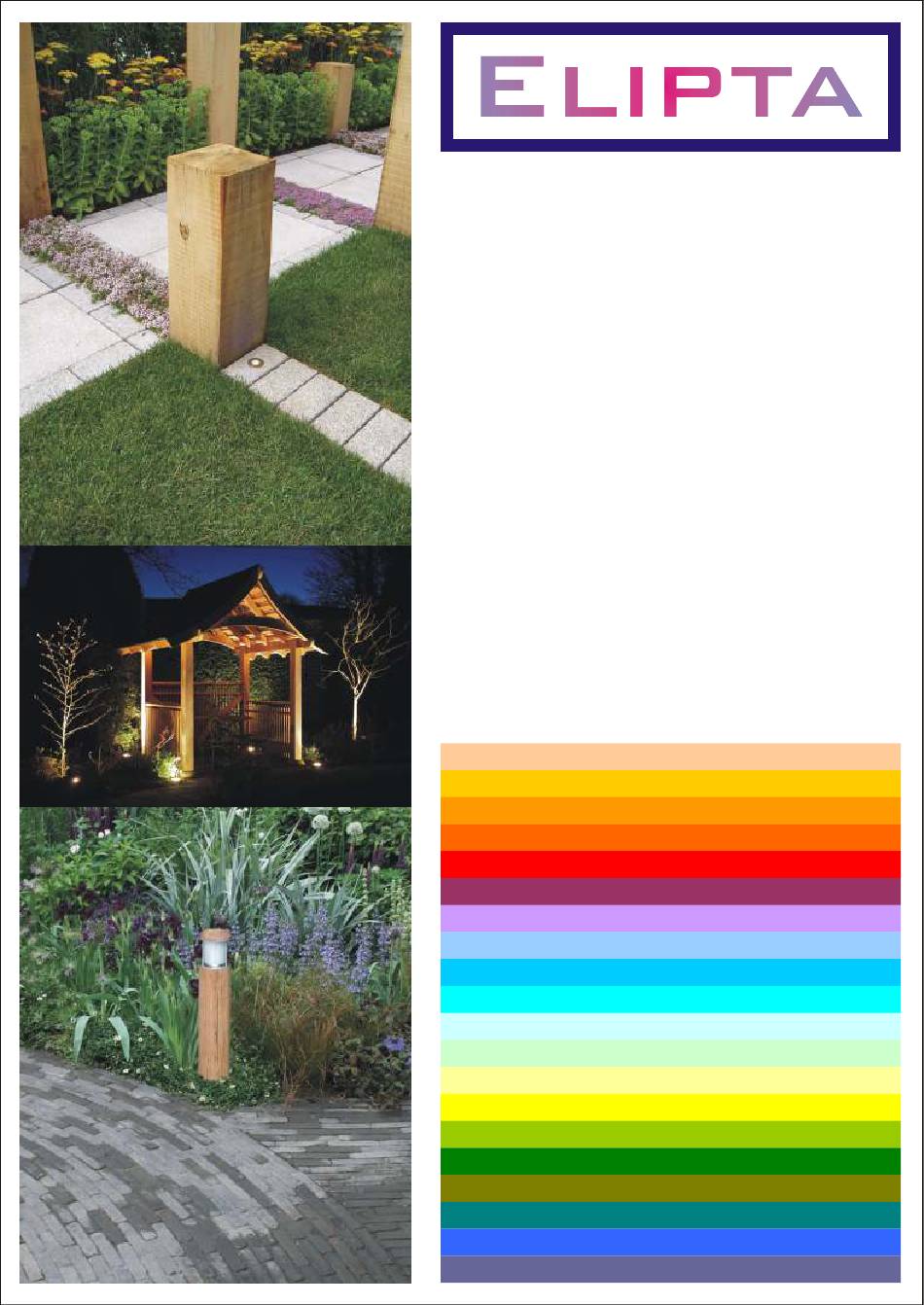

Page 1: Table Of Contents
Quality garden lighting for creative lightscaping Compact spike spotlights Tree spot system Hanging lights Pole Spots Microflood Microspots Wall spotlights & downlights 10-13 Underwater lighting 14-17 Recessed lights 18-22 Lighting for larger trees 22-23 Navigator l.e.d. recessed lights 24-27 Steplights 27-32 Bollard lights 33-35...
Page 2 Rustic Brown with optional Rotashield Dark Green Natural Copper Black 316 stainless steel 12v MR16 Lamp choice & energy ratings Stainless steel E4111 12v L.E.D. LAMPS 12v - 100 E4121 Copper 240v - 110 HALOGEN Powersavers Black E4131 E4141...
Page 3 Accessories E4010 58mm glare louvre Black Optional spike mounts E4005 50cm extended spike Stainless steel E4005B 50cm extended spike Black E4005C 50cm extended spike Copper Optional spike mounts E4005G 50cm extended spike Green E4005R 50cm extended spike Rustic Brown < The standard rod spike fitted to E4015B 100cm extended spike Black the Compact spike-mount...
Page 4 The Elipta tree mount spotlight system E4171 with E4027 Rotashield E4171 on E4012R mount straps The Elipta strap-on tree mount spotlight system consists of on E4013R strap-on mount onto small branches five strap sizes and E4013 strap-on tree mount which converts Compact 12v and 240v spotlights and Microspot miniature spotlights to tree-mount spotlights.
Page 5 12v Hanging Downlights Pergolight is a small 12v MR16 20-35w downlight for illuminating a seating area or feature below a tree, arbour or pergola. It has an open base and accepts a clip-on MR16 accessory, such as a spread lens over a hanging basket, a frosted lens or glare louvre over a seating area or a moonlighting Rustic brown filter for hanging from trees.
Page 6: Pole Spots
Pole Spots 40cm, 70cm or 100cm high pole spotlights for 12v MR16 standard halogen or Powersaver lamps or l.e.d. lamps Pole Spots offer a choice of single or twin12v spotlight on a 40cm tubular stem - ideal for uplighting trees and taller shrubs from amongst planting, spotlighting features at ground level or washing light across a lawn, path or gravel area.
Page 7: Microflood
Microflood Microflood Duo with high-stability E6002 Tri-Spike 12v twin halogen floodlight with optional extension poles for wall-washing and crosslighting For two 20-50w halogen capsule lamps E6271 Microflood Duo is a 12v floodlight with 2 independently adjustable heads, providing overlapping beams ideal for uplighting hedge screens and taller shrubs or washing light across a lawn, path or gravel area.
Page 8: Microspots
Microspot miniature spotlights Microspot Spike is a miniature12v adjustable spike spotlight for use in containers and urns using a MR11-20-36 20w lamp. L ow energy options include 1w white or warm white led lamps equivalent to a 20w halogen lamp and MR11LED3W 3w white led lamp for brighter accent lighting.
Page 9 12v miniature spotlights and downlights for pergolas, arbours &gazebos Microspots are 12v models which accept MR11 20w halogen lamps or 1w l.e.d. lamps. The Lamp choice and energy ratings front bezel unscrews for easy lamp changing or to fit a E4011 35mm honeycomb glare L.E.D.
Page 10 Compact wall-mount spotlights Rustic brown Black 316 stainless steel Matt silver wall spotlight with matching MR16AZHL silver clip-on honeycomb glare louvre Compact wall spotlights are adjustable for downlighting White terraces, grazing walls and accent lighting features. Available in 240v models for GU10 20w-50w halogen lamps or as MR16 versions for use with 12v 20-50w halogen lamps and a remote transformer, low energy options include 3w and 6w l.e.d.
Page 11 Compact twin wall spotlights Lighting tips 2 x 50w 240v IP66 Wall-mounted halogen spotlights aimed at an angle from a wall project an eliptical pool of light onto the ground, light intensity decreasing further from the wall. Keep the beam axis under 30 degrees from vertical to reduce glare.
Page 12 Compact wall downlights Compact wall downlights provide discrete illumination from walls, pergola beams, gazebos and canopies or for grazing down gate pillars, brick piers and textured surfaces. 12v versions accept MR16 lamps up to 50w or low energy l.e.d. lamps. 240v versions accept a GU10 led lamp or a halogen lamp up to 35 watts, combining the convenience of 240v installation on house walls with a compact...
Page 13 Compact up&downlights Compact up&downlight combines downlighting with a decorative uplighting effect. 12 volt versions accept MR16 halogen or led lamps for up and downlighting from pergola columns to provide ambience around a terrace or deck area. 240v versions use mains voltage GU10 halogen, l.e.d. or compact fluorescent lamps, combining the convenience of 240v installation on house walls with a compact base made possible by the absence of a bulky integral transformer.
Page 14: Underwater Lighting
Underwater lighting Neptune underwater lights LED IP68 are versatile, safe 12v accent lights or recessed uplights for wet locations using a 12v MR16 20-50w halogen reflector lamp or low energy l.e.d. lamp: Neptune fitted with new Powersaver 50w energy-efficient halogen lamps is equivalent to an ordinary 75w halogen spotlight.
Page 15 Base Mount is a solid Neptune Accessories b a s e p l a t e f o r mounting Neptune the bottom of a water 316 Stainless Steel f e a t u r e o r o n a E2510B Neptune mounting base - 316 marginal shelf, or as a E2510C Neptune base extension kit - 316...
Page 16 Neptune Recessed Neptune brass and 316 stainless steel 12v underwater lights can be installed as IP68 35w recessed lights using matching Neptune round or square recess niche and stainless steel sleeve. The body of the Neptune is screwed into the recess niche with the 2 screws supplied before fitting the gasket, lens and front plate.
Page 17 Navigator Aqua 12v submersible flush l.e.d. button lights - for rills, pebble pools, stepping stones, steps, decks & walls Navigator Aqua are miniature 12v recessed lights with a choice of white or blue l.e.d.s which consume a tiny amount of power and stay cool to the touch. The three 0.1w led's produce a wide, low power 60 degree beam through the clear polycarbonate lens, which looks like a clear plastic button and is very inconspicious where more visible metal...
Page 18 MODULA recessed uplights Modula is a flexible range of 12v and 240v recessed lights, available with round or square top plates in brushed 316L stainless steel or fine sandblasted brass. Modula’s lampholder bracket is adjustable up to 15 from vertical for directional lighting with 12V MR16 or 240V GU10 halogen lamps up to 50 watts.
Page 19 Waymarkers Waymarker360 provides all round W a y m a r k e r 1 8 0 p r o v i d e s illumination through 4 “windows” illumination to one side through 2 “windows” Stylish recessed lights with no visible fixing screws Waymarkers are smart modern drive-over lights for installation in paving, around paths...
Page 20 Lawnlighter recessed uplights Lawnlighters is a range of recessed adjustable uplights in dark green powder-coated cast aluminium made especially for lawns. Flush lens models with plain rim shed water and leaf litter for reduced maintenance. Versions with grill are available for use in walkover areas to protect against a hot lens unless a low energy light source, such as a compact fluorescent or led option, is used.
Page 21: Recessed Lights
Groundlighter brass recessed lights Groundlighter is a robust cast-brass 12v recessed light designed for uplighting smaller trees or statues and other features in waterlogged lawns and other wet locations. It is available with a plain rim and flush lens which sheds water and leaf litter for reduced maintenance, or with a protective grill for use in walkover areas to protect against a hot lens unless a low energy l.e.d.
Page 22 Coolie R Uplights for larger trees Coolie R 240v recessed uplights combine a cool top lens, long lamp life and energy efficiency for uplighting trees from lawns. Coolie R provides a powerful 45 uplighting beam, using a 35w, 70w or 150w G12 single-ended metal halide lampwhile maintaining a typical top lens temperature of under 50 C - so Coolie R can be used even in walkover areas to uplight trees with an open canopy and branch structure from directly below.
Page 23 Metal halide lighting for large trees Uplighting Two E9324-150 uplighting a 30m high cedar of lebanon 70w 150w 240v MH IP66 Spot70 & Spot150 are 240v energy-saving uplights with adjustable stirrup bracket: ground spike and glare shield are optional accessories. They are available in 70w and 150w versions using a double-ended metal halide lamp and polished reflector to project a 40 symmetric circular beam for uplighting larger trees: the...
Page 24 Navigator R e c e s s e d l . e . d . lights for s teps, Long life terraces & decking Round & square led lights 3 sizes - shown below @ actual size Low energy consumption Cool to the touch Weatherproof to IP67 No lamp changing...
Page 25 50mm l.e.d. lights for outlining decks, steps and terrace s Navigator 12v recessed l.e.d. lights are designed to outline a terrace or deck, light steps or provide cool uplighting. They feature long-life l.e.d’s sealed in waterproof resin, frosted glass lens, polycarbonate case & 1m rubber cable. A spring clip locates in the sleeve supplied for mounting in paving or walls, or in a hole drilled in decking or sleepers.
Page 26 Navigator 60mm recessed l.e.d. lights for uplighting, paving, decking and walls Energy rating Navigator Maxor - 60mm round led lights Warm white l.e.d. White l.e.d Navigator Quatro - 60mm square led lights 316 stainless steel Natural copper Fine sandblasted brass Power consumption: 2w Navigator E3311W -N Stainles s s teel 1 x 1w white led M a x o r...
Page 27 Navigator Eye Recessed l.e.d. eyelid steplights is an energy-efficient, miniature Navigator Eye recessed eyelid steplight - part of the Navigator family of l.e.d. lights - in 316 stainless steel, natural copper or fine sandblasted brass. They feature long-life 1w white or warm white l.e.d’s sealed in waterproof resin, frosted glass lens, polycarbonate case and 1m rubber cable.
Page 28 Smoothie eyelid steplights IP66 12v 35w LED Stylish steplighting with no visible fixing screws Smoothie eyelid steplights are recessed steplights designed for installation in brick and stone walls without visible screws. They are available with a 316 stainless steel, natural copper or sandblasted brass eyelid-style facia. Each light is supplied complete with a plastic sleeve tube for installation in the wall: the steplight has an “O”...
Page 29 Smoothie recessed steplights Smoothie recessed lights are supplied complete with a plastic sleeve tube for installation in the wall: an “O” ring locates the light firmly just by pushing it into the sleeve. Smoothie will also fit snugly into a hole cut in timber with a 63mm diameter holesaw. Clip- on MR16 spread lens or colour filter may be fitted to a halogen lamp inside.
Page 30 Pointer 12v recessed steplights Pointer 12v recessed steplights are designed to screw-fix in stone or brick walls and timber surfaces for use with 12v 10- 35w MR16 halogen or low energy l.e.d. lamps. “ Eyelid” models conceal the light source from overhead view. The front bezel removes for screwing the cast brass body into a timber or wall and for easy lamp changing without removing the light from the wall.
Page 31 Pilot surface-mount 12v steplights Pilot surface-mount 12v steplights illuminate steps where wall material doesn’t lend itself to recessed lighting, such as dry stone walls or deck board surrounds which make recessing awkward. The fine sandblasted finish of brass models will weather to an ochre colour to blend with sandstone, timber and buff brick, while 316 stainless steel models are designed to resist corrosion in most situations.
Page 32 Director 12v eyelid steplights Director steplights feature are designed to be screwed into timber, brick or other surfaces. The ”eyelid” hood conceals the light source from overhead view. These 12v recessed lights designed for 10-35w MR16 lamps or 1-3w led lamp (order lamps separately).
Page 33 Compact Bollard lights Compact Bollard is a modern light only 27cm tall in 316 stainless steel, copper or black powder-coated aluminium, available in spike mount or deck mount versions with a choice of 12v halogen and 240v low energy fluorescent light sources.
Page 34: Bollard Lights
Long life low energy fluorescent lamps up to 20w 316 stainless steel fixings and metal parts ELIPTA teak bollard lights use wood from a sustainable source, organically oiled during production to enhance and protect the grain. They are 45cm high and weather naturally in the garden; oil, stain or varnish treatments may be applied by the user.
Page 35 Nimbus E1022 Ground mount round 45cm teak bollard light E1042T with opal diffuser E1042TL with horizontal louvres E1023 50cm Spike mount Cirrus E1021 Ground mount square 45cm teak bollard light E1142T with opal diffuser E1142TL with horizontal louvres E1024 50cm Spike mount Accessories Stratus...
Page 36: Spreadlights
Elipta 12 volt copper spreadlights are available in three styles Domo spreadlight to provide a soft pool of light for the illumination of paths or steps and around the patio, drive and lawn.
Page 37 Mino spreadlight has a small tapered shade which is powder-coated white underneath to maximise light spread. It is supplied with tubular stem and cast lampholder assembly, and a black polycarbonate ground spike which can be replaced with a metal spike or deck mount if prefered.
Page 38: Stringlight
Stringlighting Long life lamps in weatherproof 12v stringlight for installation in trees and structures - ideal festive lighting! Stringlight is compact and ideally suited to outlining applications and stringlighting trees to highlight branch structure and shape. It’s very long lamp life and weatherproof construction mean all-weather performance in permanent installations.
Page 39 Elipta GU10CFL7S GU10CFLD11WW 11w Dimmerable 240 volt energy-saving Warm white compact fluorescent lamps for ELIPTA bollard lights compact fluorescent lamps Wattage Tungsten equivalent Recommended for Product Code...
Page 40 Halogen lamp application data GU10 240v tungsten halogen reflector lamps: beam spread, wattage ratings and typical applicat ions 35w 38 - flood 50w 25 - spot 50w 38 - flood 50w 50 - wide flood beam Distance Light level beam Distance Light level beam...
Page 41 While most led lamps are the same size as an equivalent halogen lamp, the higher power MR16 and GU10 3 x 2 w modules are slightly larger and fit only in selected Elipta products.Warm white lamps are less efficient than white l.e.d. lamps: the colour of light from warm white l.e.d. lamps may vary from tungsten-equivalent (slightly yellow 2700 K) to halogen equivalent (golden white 3000 K ).
Page 42 MR11 Microspots Clip-on filters are for use in 12v MR16 Elipta spotlights, steplights, Waymarkers and underwater lights, or without clip in Groundlighters. They may be used with GU10 lamps in 240v Elipta spotlights.but may not fit in other garden lights which have not been designed to provide additional 6...
Page 43 Installation materials Ground Burial Low Voltage Cable has 2 cores and colour-coded rubber conductor sheathing within a tough but flexible outer black rubber sheath designed for outdoor use. T9910 4mm² 2 core cable is intended for installation where longer cables to higher power uplights are required to overcome volt drop.
Page 44 Transformers and dc power supplies Surface-mount The Elipta standard range of surface-mount 12v weatherproof wire-wound (magnetic) transformers are resin-potted into black polycarbonate boxes, normally to be mounted on a wall w e a t h e r p r o o f or post hidden behind planting and landscape features, or under decking in outbuildings.
Page 45 Elipta range. A dc power supply provides direct current (d.c.) which is compatible with Elipta l.e.d. lights: use a regulated 12v DC power supply to ensure stable voltage to a group of Elipta l.e.d. Lights. The power supply should be installed close to the lights as long cable runs can induce instability in l.e.d.
Page 46 Help What length of cable can I use from the transformer to a light? “Cable voltage drop” occurs in all electric cables, but in a 12 volt garden lighting system care must be taken to limit this to avoid loss of light output resulting from voltage reduction at the lamp.
Page 47 Creative garden lighting effects Downlighting is lighting in a downward Uplighting from below is the most common direction from a structure to project a pool of technique and a dramatic effect which light onto a surface or feature below or to demands attention as it reverses the daylight provide general illumination for safety, task or perspective of even light from above.
Page 48 Quality garden lighting for creative lightscaping W h i l e e v e r y c a r e h a s b e e n t a k e n w i t h t h e c o n t e n t s o f t h i s p u b l i c a t i o n , w e a c c e p t n o r e s p o n s i b i l i t y f o r a n y i n a c c u r a c i e s a n d r e s e r v e t h e r i g h t t o c h a n g e specifications without notice in order to always ensure you are receiving a superior product.
