Summary of Contents for AQUA JOY AUTO DELUXE
- Page 1 SALTWATER CHLORINATOR OWNERS HANDBOOK AUTO DELUXE & STANDARD Manufactured by: JOY POOL SYSTEMS ACN 141 035 172 ABN 66 141 035 172 Website: www.aquajoy.com.au Unit 21, 2 Richard Close E-mail: sales@aquajoy.com.au NORTH ROCKS NSW 2151 AUSTRALIA Ph: +61 2 9630 5011 Fax: +61 2 9683 4750...
- Page 2 DO NOT MOUNT THE POWER PACK IN DIRECT SUNLIGHT. DO NOT RUN POWER PACK WHEN ADDING SALE, PUMP ONLY. The pump must always be operating and water flowing through the AQUAJOY cell when the AQUAJOY is switched on. Please check that the pump is functioning correctly before assuming that the AQUAJOY unit is not working.
- Page 3 Important Safety Matters are indicated by SAFETY PRECAUTIONS SAFETY – FOR YOUR SAFETY AND THE SAFETY OF OTHERS, BEFORE OPERATE THIS CHLORINATOR. Do not operate the chlorinator unless you have read all WARNINGS and INSTRUCTIONS and understand all safety / operating procedures contained in this manual.
- Page 4 SAFETY – TO PREVENT RISK OR INJURY TO YOURSELF OTHERS, OBSERVE FOLLOWING SAFETY INSTRUCTIONS: Understand all safety and operational procedures contained in this manual and check the condition of the chlorinator and cell before use. Again, if in doubt, contact your dealer before proceeding. Do not attempt to modify the chlorinator or installation in any way.
- Page 5 Any spills should be immediately flushed with water. When diluting the acid ALWAYS ADD ACID TO WATER … NEVER THE REVERSE. Take care when immersing the cell in the diluted acid solution to ensure that no acid splashes or spills occur. When finished, wash gloves and used containers in water.
- Page 6 Servicing should be carried out with the power switch off and the chlorinator disconnected from the power point. Where is it absolutely necessary to power the unit for service then it shall be powered from the unearthed secondary of a safety isolation transformer or by means of an approved earth leakage detection unit.
-
Page 7: Table Of Contents
CONTENTS INTRODUCTION ................1 “Aquajoy” Salt Water Chlorinator Models ........1 Identification Details & Explanations ..........2 INSTALLATION................3 Check List Before Turning On ............5 Installation Diagram ................ 5 OPERATION – START UP PROCEDURE ........5 CHLORINE PRODUCTION TEST ........... 6 GENERAL INFORMATION ON WATER CARE ...... -
Page 8: Introduction

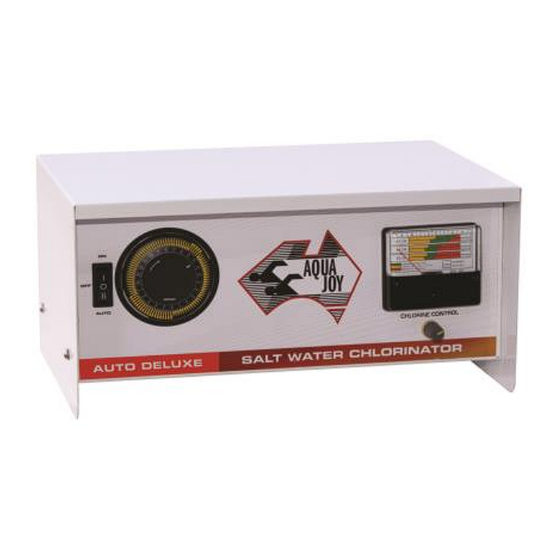

This Handbook has been compiled to assist you on Basic Pool Care. “AQUAJOY” SALT WATER CHLORINATOR MODELS STANDARD AUTO DELUXE Time Clock AQUAJOY STANDARD Ideal for established and new pools, where a time clock is already fitted. -
Page 9: Identification Details & Explanations
IDENTIFICATION DETAILS & EXPLANATIONS A. Power Pack Chlorine Monitor – see page 11. C. On / Off / Auto switch. Up “ON”, in the middle “AUTO” and Down is “OFF” In the “On” position pump will run continuously by over-riding the time clock –... -
Page 10: Installation
INSTALLATION These instructions should be read and understood completely before starting installation. Correct installation is mandatory for correct and safe operation. 1. POOL WATER PREPARATION a) Measure the pool size in litres to determine salt requirements. b) Refer to salt requirement chart. (page 10). Add 4kg of refined salt per 1000 litres of water in shallow end of pool. - Page 11 e) CAUTION. It is very important that no gas generated from the Cell can find its way back into the Filter Pump, Heater, Solar Systems or Spa Blowers. When position to install Cell has been decided, turn off Filter AND CLOSE OFF VALVES. g) If Return to Pool Line is 40mm pipe, use 50-40mm reducers provided.
-
Page 12: Check List Before Turning On
CHECK LIST BEFORE TURNING ON Pool Salt all dissolved. Glue is set (allow 24 hours). Valves re-opened. INSTALLATION DIAGRAM NOTE: WATER FLOW EITHER THROUGH INLET / OUTLET PORTS ON CELL. (CELL MAY BE REVERSED AS SHOWN IN DIAGRAM). GAS AND ELECTRIC HEATERS REQUIRE CELL INSTALLED MINIMUM OF 1 METRE FROM HEATER OUTLET. -
Page 13: Chlorine Production Test
a) Time Cell Switch on “ON” position. b) Set Chlorine Production Switch to maximum on position. Turn on Mains / Power supply. c) Filter and Chlorinator are now running. d) Check Clock and running times – see Page 12. e) Set Chlorine Monitor needle is in normal operation sector. CHLORINE PRODUCTION TEST 1. -
Page 14: General Information On Water Care
GENERAL INFORMATION ON WATER CARE A basic knowledge of pool care fundamentals will allow some insight into the function of the various pieces of equipment and chemicals used in and around your pool. The three fundamental requirements in maintaining a pool or any body of water are: 1. -
Page 15: Conclusions
CONCLUSIONS It follows then that your pool must have an adequate circulation, chlorination and filtration system and the pH should be in the correct range. The use of Pool Stabiliser (iso-cyanuric acid) in hot weather will help keep a reserve of chlorine in the pool. MAINTENANCE CLEANING OF THE CELL Check at weekly intervals to determine amount of deposit (calcium etc.) -
Page 16: Adding Salt
ADDING SALT Use only refined salt in your pool. The chlorinator is designed to run in at least 4,000 ppm of Salt – lower than 4,000 ppm will cause problems in your pool and may void electrodes warranty. 1. If after cleaning Cell the Chlorine Monitor is not operating in the normal position, add 1 x 25kg bag of salt into pool at shallow end. -
Page 17: Salt Requirement Chart
SALT REQUIREMENT CHART Eg: To achieve 4,000 parts per million salt in 60,000 litres of pool water, add 240kg salt. Parts per million Salt Litres of 1000 1500 2000 2500 3000 3500 4000 4500 5000 5500 Water 5000 12.5 17.5 22.5 27.5 10,000... -
Page 18: Understanding The Chlorine Monitor
UNDERSTANDING THE CHLORINE MONITOR The chlorine monitor presents a visual indication of the chlorination process of your Aquajoy. It does NOT relate to pH control but supersedes need messy chemical analysis and test kits; it is a passive INDICATOR and slow to change. -
Page 19: Setting The Clock
Maintenance Procedure If the Monitor needle is in the YELLOW sector and NOT the normal (GREEN) sector, the following procedure should be carried out. Ensure Chlorine Production Switch is on high setting. 1) Check cell for calcium deposit (clean if necessary). SUMMER 2) Check water temperature, weather, summer/winter? WINTER... -
Page 20: Checklist When Problems Occur
CHECKLIST WHEN PROBLEMS OCCUR Problem Possible Cause Chlorine Residual Insufficient running times Low or Nil pH too high or low Strong sunlight and low conditioner levels Poor circulation Heavy bather loading Low chlorine production ... -
Page 21: Service - Check List
SERVICE – CHECK LIST Remember BEFORE PICKING UP THE TELEPHONE HAVE YOU COMPLETED THE FOLLOWING CHECK LIST? Is my pH correct? Is my salt level correct? Are my electrodes clean? (Cell) Am I running my AQUAJOY long enough? Have I added stabiliser? HAVE I READ MY AQUAJOY INSTRUCTIONS CORRECTLY? Should your Pump Motor fail or other problems do not allow you to... -
Page 22: Cell & Power Pack Maintenance
CELL & POWER PACK MAINTENANCE DATE CLEANED METHOD USED RESULT *POWER PACK – TERMINAL BOX FASTENINGS DATE CHECKED NEEDED YES / NO ATTENTION *Connections on Terminal Box should be checked at three (3) monthly intervals to ensure they are firm and tight. -
Page 23: Warranty
JOY POOL SYSTEMS WARRANTY For a period of 36 months from the date of purchase JOY POOL SYSTEMS warrants to the original purchaser that the AQUAJOY CHLORINATION UNIT shall be free from defects to materials and workmanship. The cell’s anode coating carries a further 36 months pro rata replacement warranty. - Page 24 Manufactured by: JOY POOL SYSTEMS ACN 141 035 172 ABN 66 141 035 172 Unit 21, 2 Richard Close NORTH ROCKS NSW 2151 AUSTRALIA Website: www.aquajoy.com.au E-mail: sales@aquajoy.com.au Ph: +61 2 9630 5011 Fax: +61 2 9683 4750...
