DIHS Optima W R2 Plus Quick Start Manual

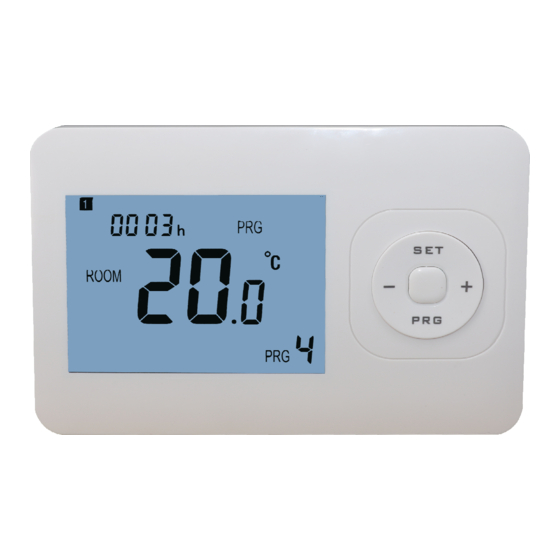

This surface-mounted radio thermostat has been developed to be able to switch electric and
conventional heating systems on and off using a set temperature and time. It can pair with TC-25, TC30,
TC35, TC40 or TC-60 for remote control anytime anywhere.
Functions
 Large display can be clearly read with the background lighting.
 Easy to fit thermostat and receiver.
 Five buttons make it easy to use.
 4 periods of each day programmable
 The display shows the set temperature as well as the measured temperature, time.
 Temperature display in degrees Celsius.
 The thermostat is supplied with a wall-fixing frame, base and a very compact receiver
(surface-mounted).
Technical Data
Thermostat operating voltage:
Backup storage:
Receiver operating voltage:
TC-05 Max. load:
TC-06 Max.load:
Frequency:
Channel selection:
Switching options:
Receiver switch contacts:
Temperature settings:
Accuracy:
Thermostat dimensions:
Receiver dimensions:
Color:
IP protection rating:
Certification:

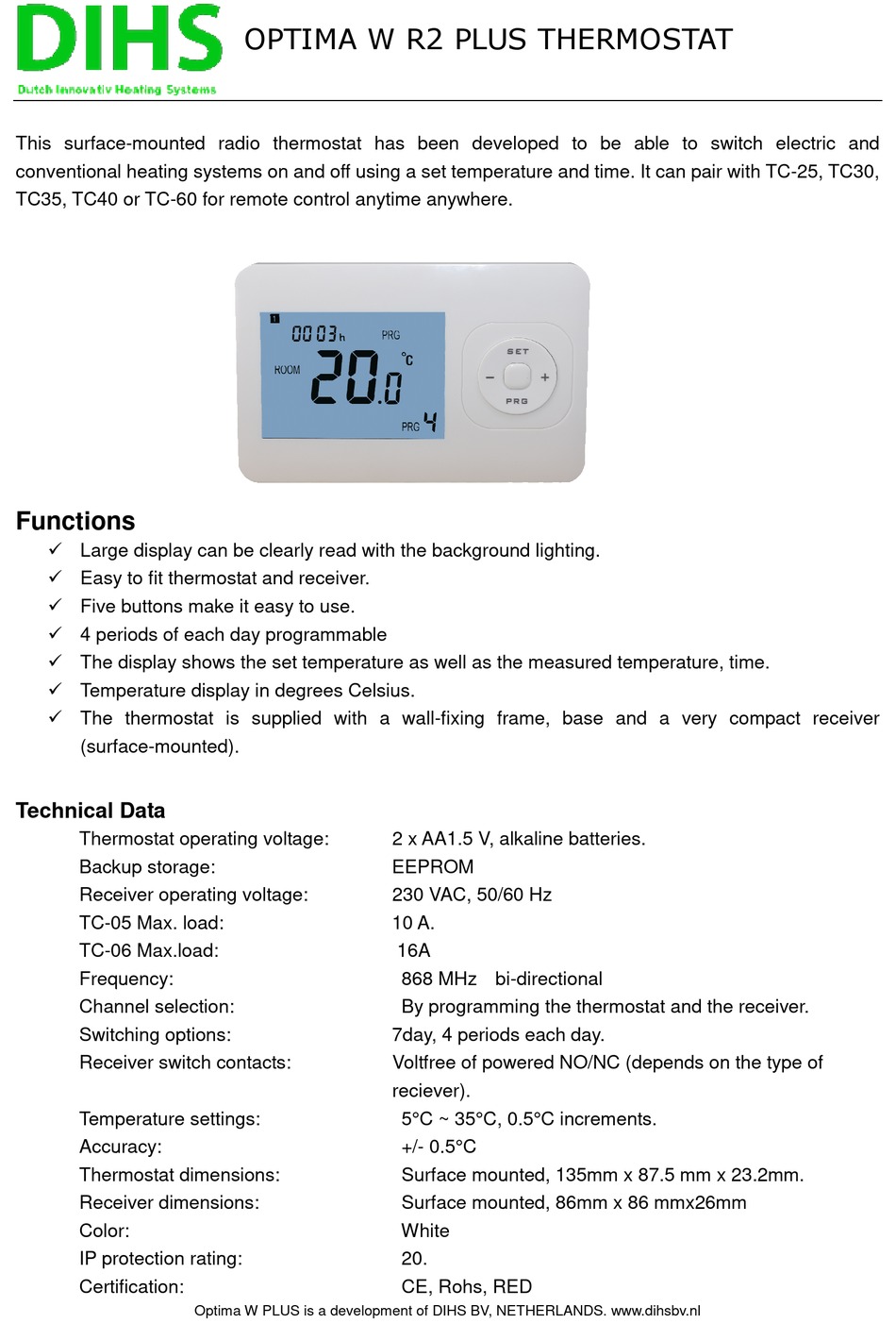

OPTIMA W R2 PLUS THERMOSTAT
Optima W PLUS is a development of DIHS BV, NETHERLANDS. www.dihsbv.nl
2 x AA1.5 V, alkaline batteries.
EEPROM
230 VAC, 50/60 Hz
10 A.
16A
868 MHz bi-directional
By programming the thermostat and the receiver.
7day, 4 periods each day.
Voltfree of powered NO/NC (depends on the type of
reciever).
5°C ~ 35°C, 0.5°C increments.
+/- 0.5°C
Surface mounted, 135mm x 87.5 mm x 23.2mm.
Surface mounted, 86mm x 86 mmx26mm
White
20.
CE, Rohs, RED
