ES2070 Digital Quantification Dispenser Manual

1. Package contains the following items：

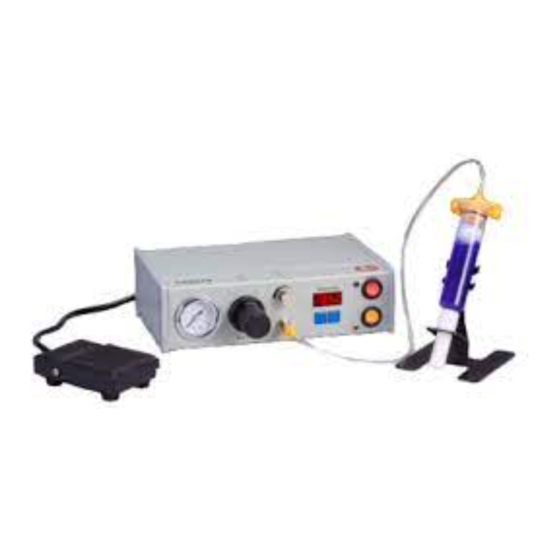

ES2070 Digital Quantification Dispenser

Power Cord

Air Pressure Connector

Barrel Adapter Set

Startup Kit

Foot Pedal or Finger Switch

2. Hardware Setup：

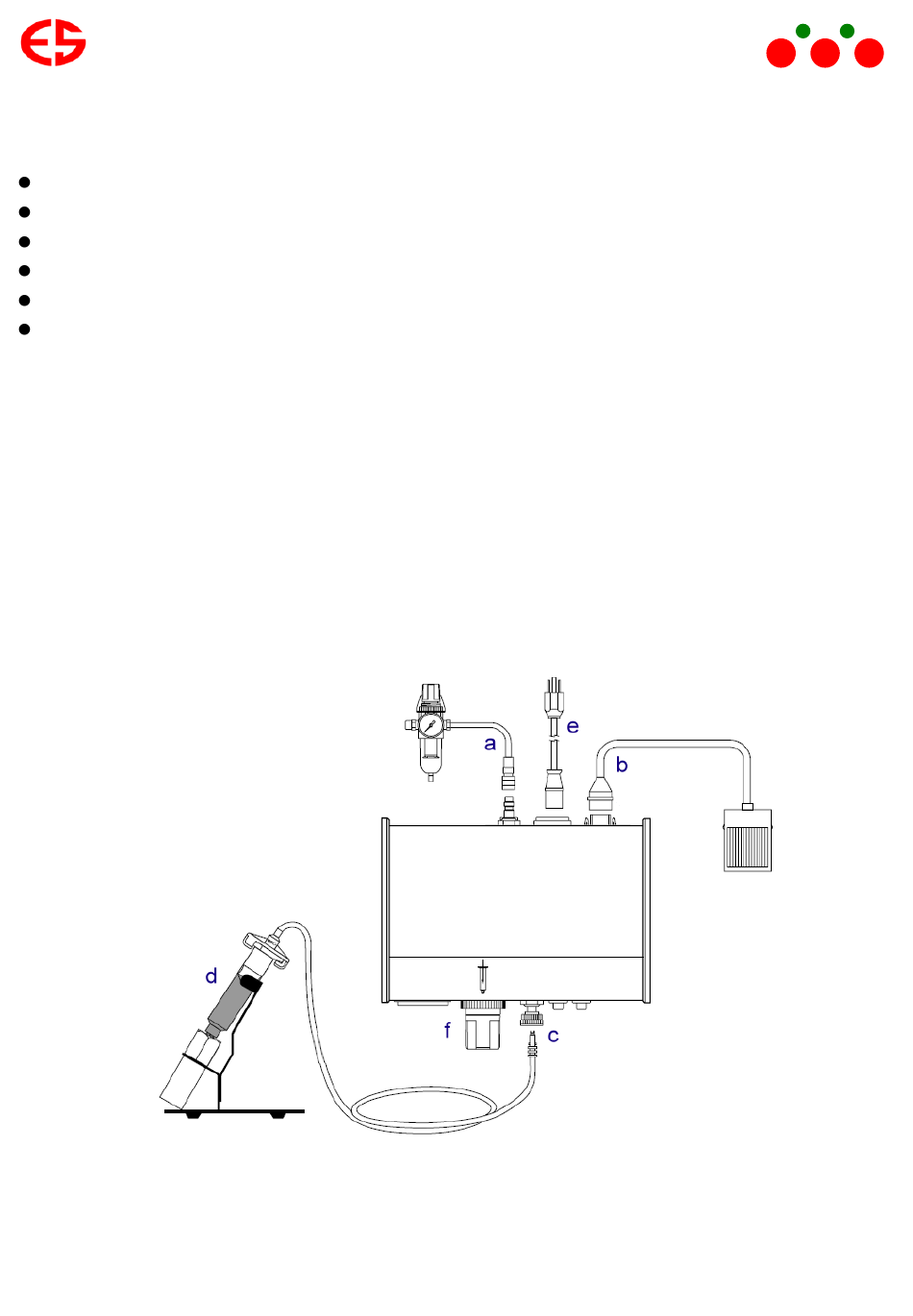

Please connect the Air Pressure Connector on the back of the system to the nearby air compressor line.

Connect the Foot Pedal on the back of the system or Finger Switch on the front of the system.

Fill the dispensing barrel with adhesive up to 2/3 full and adapt with barrel adapter. Connect the adapter to the

front of the system.

If you are using Finger Switch, please stick the switch on the dispensing barrel.

Connect the Power Cord on the back of the system and switch the power on. Please make sure all the display

and light indicator are working properly. (110V-240V full voltage)

Install the dispensing barrel with appropriate needle and adjust with appropriate air pressure and vacuum.

(Please refer to Table 1)
