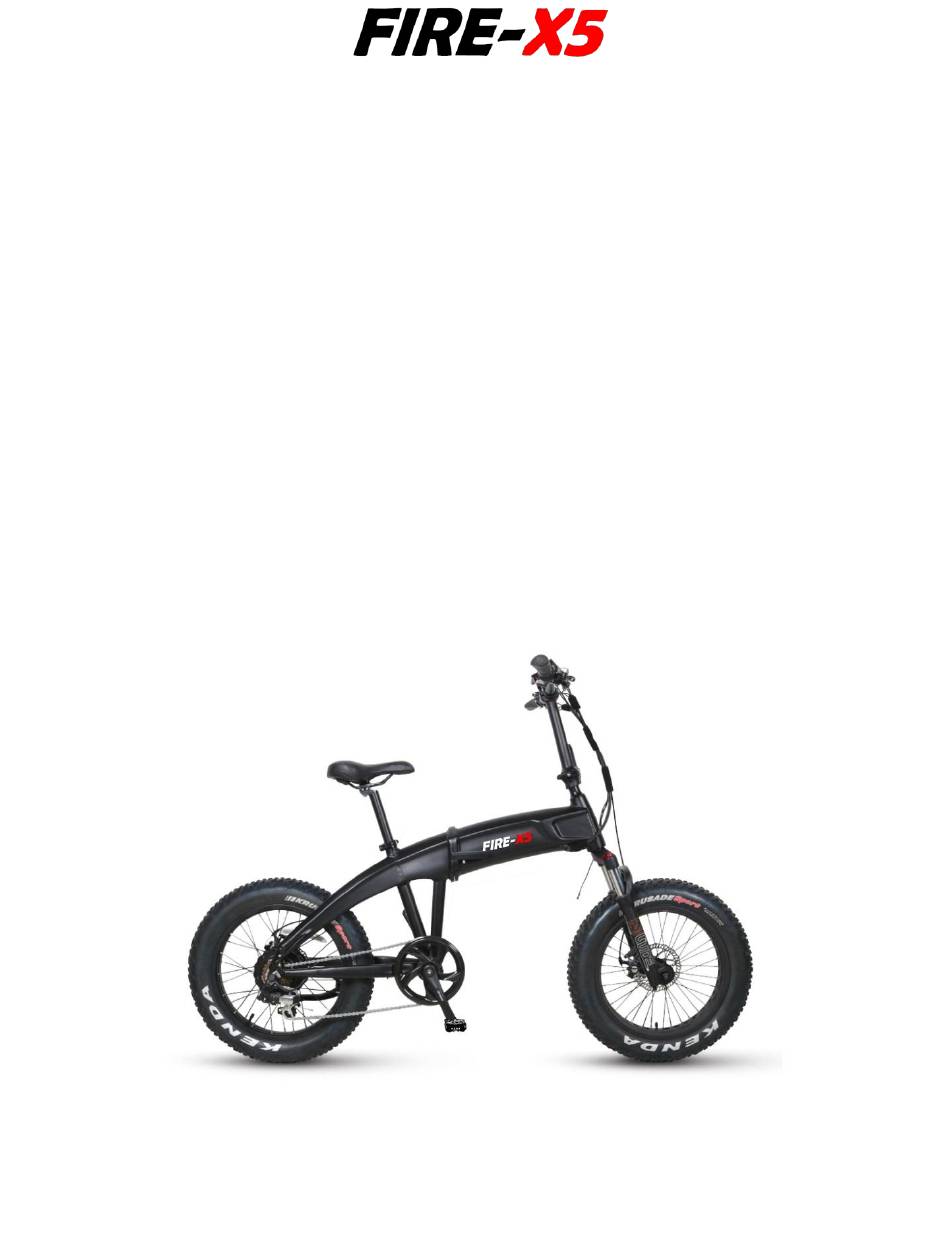

OPERATION MANUAL
Please read this manual in its entirety before operating your new e-Bike.
By proceeding, you agree that you fully understand the contents of this manual
and the operation and maintenance instructions contained within.
2021 © www.fire-x5.com
Advertisement
Table of Contents
Summary of Contents for FIRE-X5 FIRE-X5
- Page 1 __________________________________________________________________ OPERATION MANUAL Please read this manual in its entirety before operating your new e-Bike. By proceeding, you agree that you fully understand the contents of this manual and the operation and maintenance instructions contained within. 2021 © www.fire-x5.com...
- Page 2 As a parent, you should read this manual before letting your child ride the bicycle. Please make sure that your child always wears helmet when riding. 2021 © www.fire-x5.com...
-
Page 3: Specifications
– SHIMANO GEAR, SHIFTER TOURNEY (7-SPEEDS) – MAXIMUM CRUISE SPEED ON FLAT GROUND: 32 KM/H (THROTTLE ONLY) – MAXIMUM CRUISE DISTANCE ON FLAT GROUND: 45 KM (THR) – 70 KM (PAS) – GROSS WEIGHT: 30-32 KG – DIMENSIONS UNFOLDED: 68″/48″/25″, FOLDED 40″/29″/24″ 2021 © www.fire-x5.com... -
Page 4: Battery Charging
Install the battery: please make sure that the lead rail on frame gets into the slot in battery. And make sure the battery is placed completely upon the conductive contact inside. To charge installed battery you need just open the cover on frame: Charging Green - Fully charged Red - 2021 © www.fire-x5.com... - Page 5 9. When charging is complete, unplug the charger from the wall before removing it from the charger port. Use only we provided authorized Li-Ion charger. Using any other charger will damage the battery and void your warranty. 2021 © www.fire-x5.com...
- Page 6 Ensure chain is oiled, clean and runs smoothly. Extra care is required in wet or dusty conditions. 5. Bearing Ensure pedals are securely tightened to the cranks. Check headset, wheel bearings, pedals bearing and bottom bracket bearings. 2021 © www.fire-x5.com...
- Page 7 It is strongly advised that a proper safety helmet be worn at all times when riding your bicycle. In addition, if you are carrying a passenger on a child safety seat, they must also be wearing a helmet. 2021 © www.fire-x5.com...
- Page 8 The best indication of how much battery life is remaining is to check the LCD display, after reaching cruising speed, on a flat straight road as this will allow the battery voltage to stabilize and give a much more accurate reading. 2021 © www.fire-x5.com...
- Page 9 Gear 1 is for the minimum power while 5 is for the highest. Gear 0 is without boost function. 6 KM/H walking assistant: hold for 2 seconds to activate walking assistant. It can assist you when you push the bike forward or up on a slope. 2021 © www.fire-x5.com...
- Page 10 ERROR 04: Hall sensor signal abnormal ERROR 05: Brake signal abnormal ERROR 06: Under voltage ERROR 07: Motor protection; please do not block the motor from rotating ERROR 08: Controller communication abnormal ERROR 09: LCD communication abnormal 2021 © www.fire-x5.com...
- Page 11 In this mode, motor power is only active when the pedals are in forward motion. Begin riding as you would on a normal non-electric bicycle, and while the pedals are in motion, the motor is activated to make it easier to pedal the bike. Available 5 levels of assist. 2021 © www.fire-x5.com...
-
Page 12: Taking Care Of Your Battery
Do not throw them in the garbage. Frequent “stops and starts” will drain a battery more quickly than sustained long term use. Even with proper care, rechargeable batteries do not last forever. Average battery life depends on use and conditions. 2021 © www.fire-x5.com... - Page 13 The charger and charger port should be regularly inspected for damage (cord, plug, enclosure, etc.). If damage is found stop using until the damage part can be repaired or replaced. CAUTION RISK OF ELECTRIC SHOCK, DRY LOCATION USE ONLY 2021 © www.fire-x5.com...
-
Page 14: Battery Storage
A: Battery will self-discharge when not in use. The self-discharge rate depends on the temperature at which battery stored. Excessively cold or hot storage temperature will drain the battery faster than normal. Ideally the battery should be stored at room temperature. 2021 © www.fire-x5.com... - Page 15 BATTERY DISPOSAL Please recycle your old batteries Do not dispose of batteries in a fire due to risk of explosion. In the event of disposal, dispose only in accordance with federal, state and local regulations. 2021 © www.fire-x5.com...
- Page 16 The chain should be lubricated with light oil at least every month, or more often in wet, muddy, or dusty conditions. Take care to wipe off excess oil, and not to get oil on the tires or rim braking surfaces. 2021 © www.fire-x5.com...
-
Page 17: Troubleshooting
Clean or Replace charger charger plug and the charger socket socket Headlights doesn’t Switch of the headlights doesn't Replacing of the switch, work work or connection check connection Controller does not short-circuit in the controller Replacing of the controller function 2021 © www.fire-x5.com... - Page 18 You will be instructed how to proceed. A copy of invoice is required. Carsman Private Garage Partnership 100, 2250 162 Ave. SW Evergreen Pro. # 24054 Calgary, AB Canada T2Y0J9 Tel: 1(587) 887-9955 www.fire-x5.com 2021 © www.fire-x5.com...
- Page 19 HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THE PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Carsman Private Garage Partnership 2021/05/25 2021 © www.fire-x5.com...
