Summary of Contents for AiDriving G5M

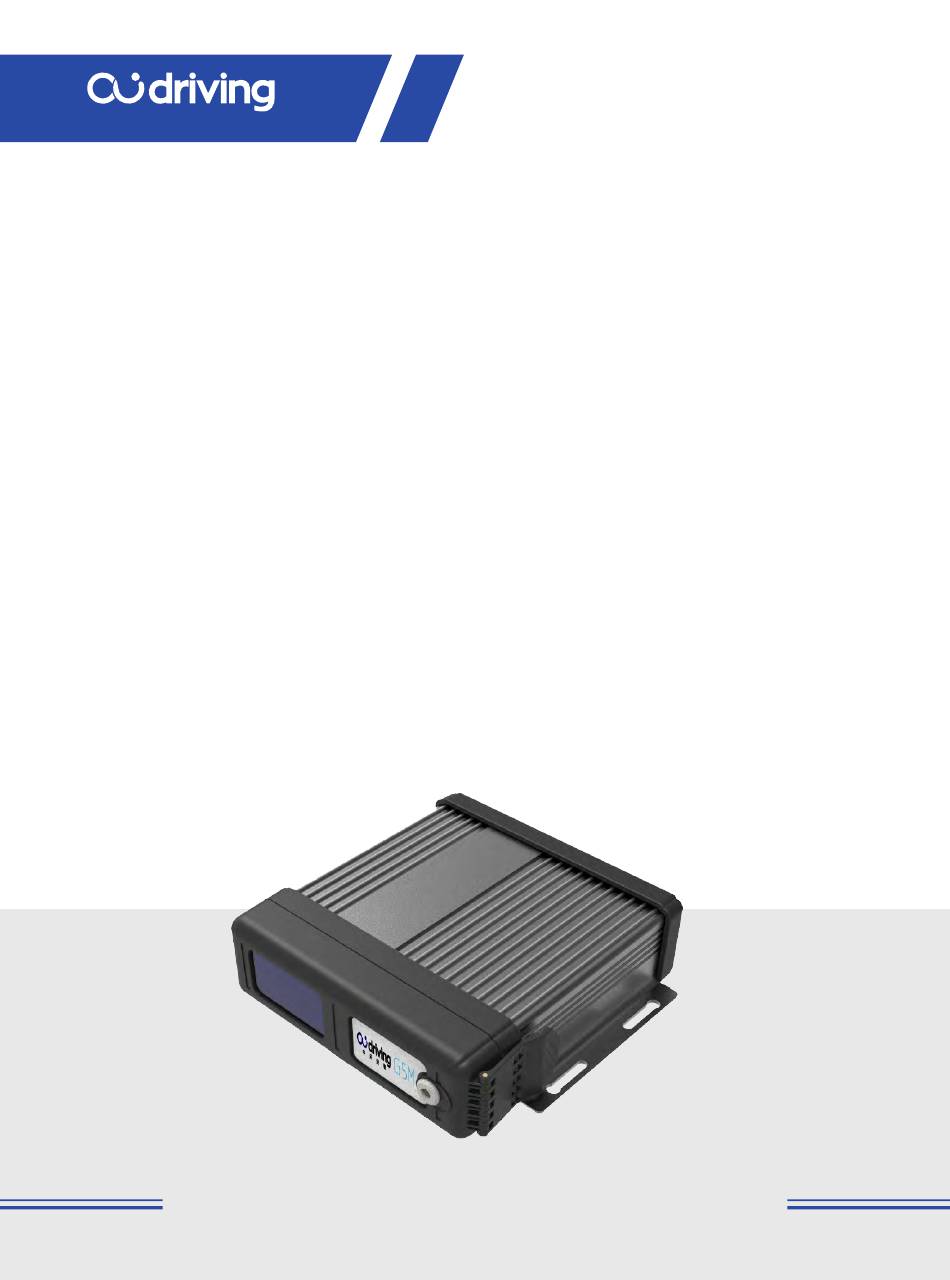

- Page 1 G5M User Manual Name: Smart vehicle camera Model: G5M Manual version : V 1 . 0 Shenzhen aidriving Co., Ltd www.ai-safer.com...
- Page 2 To cutomerse Thanks for your purchase! We are glad to support Copyrights All documents are property of Shenzhen aidriving Co., Ltd. All copyrights are reserved by our company. Our registered logo and trade mark www.ai-safer.com Shenzhen aidriving Co., Ltd ...
-
Page 3: Table Of Contents
MENU Chap.1 Introduction 1.1 Overview 1.2 Features 1.3 Packing list Chap.2 Parameters 2.1 Dimension 2.2 Interface 2.3 Parameters Chap.3 Operation 3.1 Install position 3.2 Wiring 3.3 Online parameters 3.4Maintenance Chap.4 Troubleshooting Chap.5 Notice www.ai-safer.com Shenzhen aidriving Co., Ltd... -
Page 4: Features
2 channels 1080P / 720P / D1 Video with audio. G5M can diagnose device errors in real-time, which makes remote trouble-shooting and maintenance much easier. G5M also utilizes the latest high accuracy GPS tracking technology. 1 . 2 Features Hisilicon latest solution/H.264 encrypt /Super image processor/Clear image... -
Page 5: Packing List
AHD camera extension cable 4PIN 6M AHD camera extension cable 4PIN 8M ADAS Camera extension cable 6PIN 1M 24PIN COM port 1M, For connect external sensors GT1 high accuracy GPS antenna 4PIN, 2M SD Card 64GB www.ai-safer.com Shenzhen aidriving Co., Ltd... -
Page 6: Dimension
Chapter 2 Parameters 2 . 1 Dimension Name Size Host 158mm*168mm*47mm 119mm*63mm*47mm ADAS Camera 100mm*58mm*74mm DSM Camera G5M host dimension ADAS Camera dimension DSM Camera dimension www.ai-safer.com Shenzhen aidriving Co., Ltd... - Page 7 Mark Power POWER Power socket GPS antenna port Locate Network 4G antenna port Speaker External speaker port Com port RS485/RS23/MIC/Ethernet ADAS Cam ADAS algorithm camera Camera DSM Cam DSM algorithm camera AV3/AV4 AV AHD Camera www.ai-safer.com Shenzhen aidriving Co., Ltd...
- Page 8 C, dsm Camera Video Power 5V D, AHD Camera Power 12V Audio Video E, Communication MIC- MIC+ IN5_AD2 RS232_TX_DBG Power 12V Power 5V RS232_RX_DBG Mx2- 485A/CANL Power12V 485B/CANH IN4_AD1 Mx2+ RS232_TX_RES ALM_KEY Mx1+ RS232_RX_RES Mx1- www.ai-safer.com Shenzhen aidriving Co., Ltd...
- Page 9 12V/1A, 5V/1A Power output Others 15W, 12V/1.25A, 24V/0.6A Consumption Work Temp. -20 ~ 70℃ D1: 500M/hour/CH, 720P: 1GB/hour/CH, 1080P:2GB/hour/CH Storage Cap. Manual upgrade, FOTA, Auto upgrade Upgrade Upgrade USB, SD Card, Wireless network Upgrade method Shenzhen aidriving Co., Ltd www.ai-safer.com...
-
Page 10: Wiring
3 . 1 Installation Item Essential Host Fix G5M to dashboard or other place, fasten screws and lock slot cover. ADAS Cam Below front windshield， horizon center, road and sky 50/50 DSM Cam Above wheel, 80CM to driver head, face in the center of camera vision, wheel cannot be shot；... - Page 11 Terminal ID According to platform registered terminal ID Vehicle color and others Vehicle color and other platform required info Two ways settings Optional: (1) through wechat mini program ; (2) through screen and remote control www.ai-safer.com Shenzhen aidriving Co., Ltd...
- Page 12 Vehicle is underground, in tunnel Move vehicle to good signal area Antenna is too close to G5M host Antenna need be over 50CM from G5M host Antenna is covered by metal or other s Remove metal or other kind obstacle...
- Page 13 Antenna lines cannot be mixed together with other cables like power cable or camera cables. Antenna line need be placed singly. Antenna cannot be covered by metal and need be over 50CM from G5M host. When change SD card or SIM card, terminal need be powered off.
- Page 14 CONTACT Offical Website Shenzhen aidriving Co., Ltd Postcode: 518052 Phone: 0755 - 26600406 E-mail ：info@ai-safer.com Site ：www.ai-safer.com Address: No.5, Furui Rd ,Baoan District, Shenzhen, Guangdong Province, China, 518052 www.ai-safer.com Shenzhen aidriving Co., Ltd...
