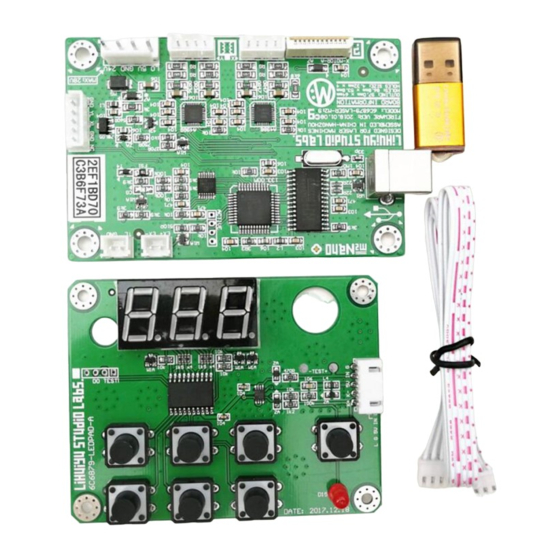

LIHUIYU M2 Nano Laser Controller Set
Features:
M2 motherboard is a square port USB interface motherboard:
1. Support carving, cutting, image engraving, slow marking
2. Support for receiving unlimited number of engraving data
3. Support USB dropped breakpoints continued
4. Support unlimited engraving formats
5. Support USB dropped detection
6. Supports accidental breakpoints

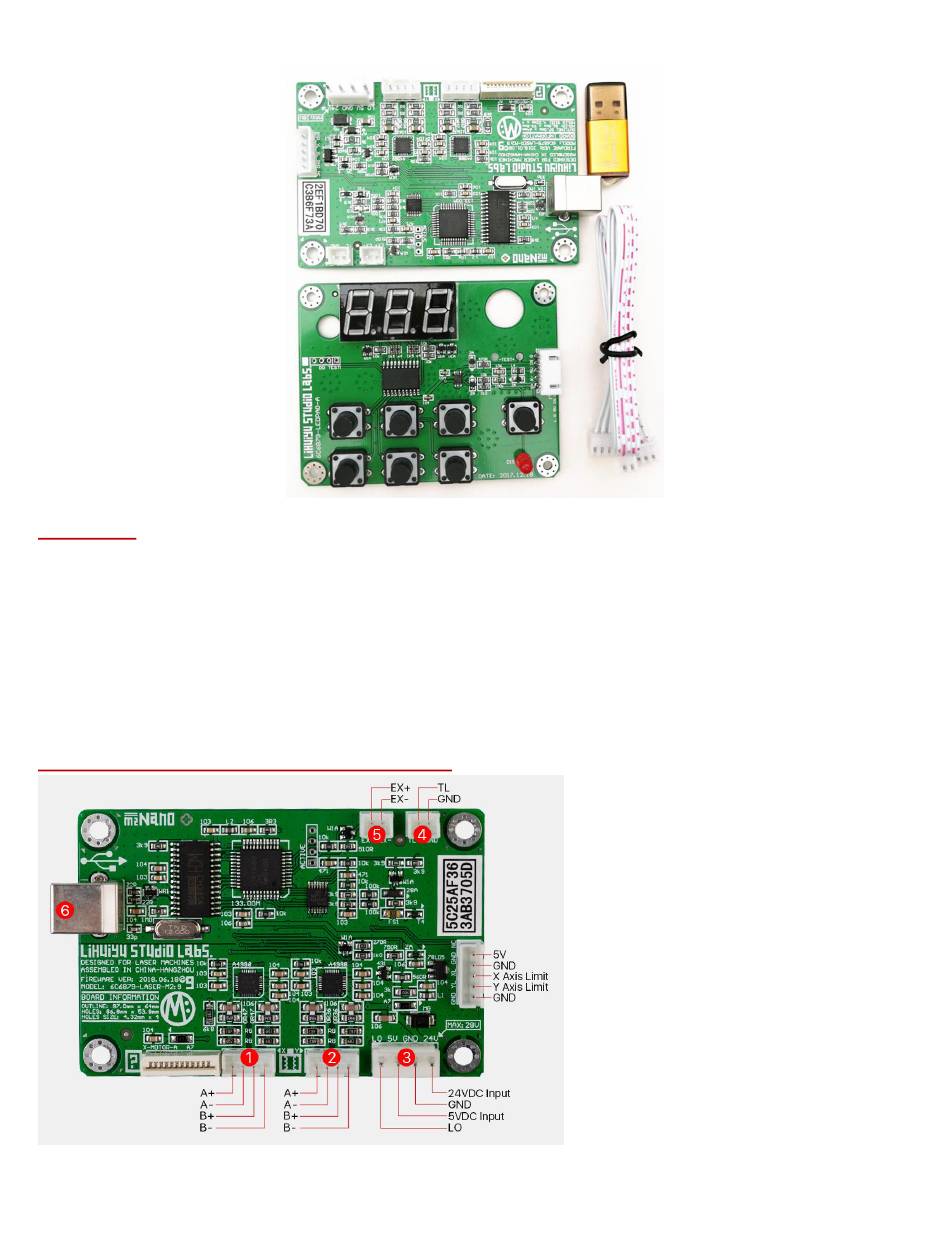

M2 Nano Laser Controller Motherboard:
1. X-Axis Stepper Motor
2. Y-Axis Stepper Motor
3. LO: Laser Control Signal Output. Low Level (≤0.3V), Laser On. High Level (5V), Laser Off.
Advertisement
Table of Contents
Summary of Contents for LIHUIYU M2
- Page 1 LIHUIYU M2 Nano Laser Controller Set Features: M2 motherboard is a square port USB interface motherboard: 1. Support carving, cutting, image engraving, slow marking 2. Support for receiving unlimited number of engraving data 3. Support USB dropped breakpoints continued 4. Support unlimited engraving formats 5.
- Page 2 4. LO: Connect to Power Supply ‘TL’ Port 5. External Synchronous Control Signal Output 6. USB Port M2 Controller Panel: 1. Digital Display for Laser Energy Percentage 2. Laser Energy Settings Button: used to set laser energy, with a range of 0% to 99.9%. The setting accuracy is 0.1%.
- Page 3 Wiring Diagram:...
- Page 4 Packaging List: 1PCS M2 Nano Laser Controller Motherboard 1PCS M2 Controller Panel 1PCS Cable 1PCS USB Dongle Made in China...
