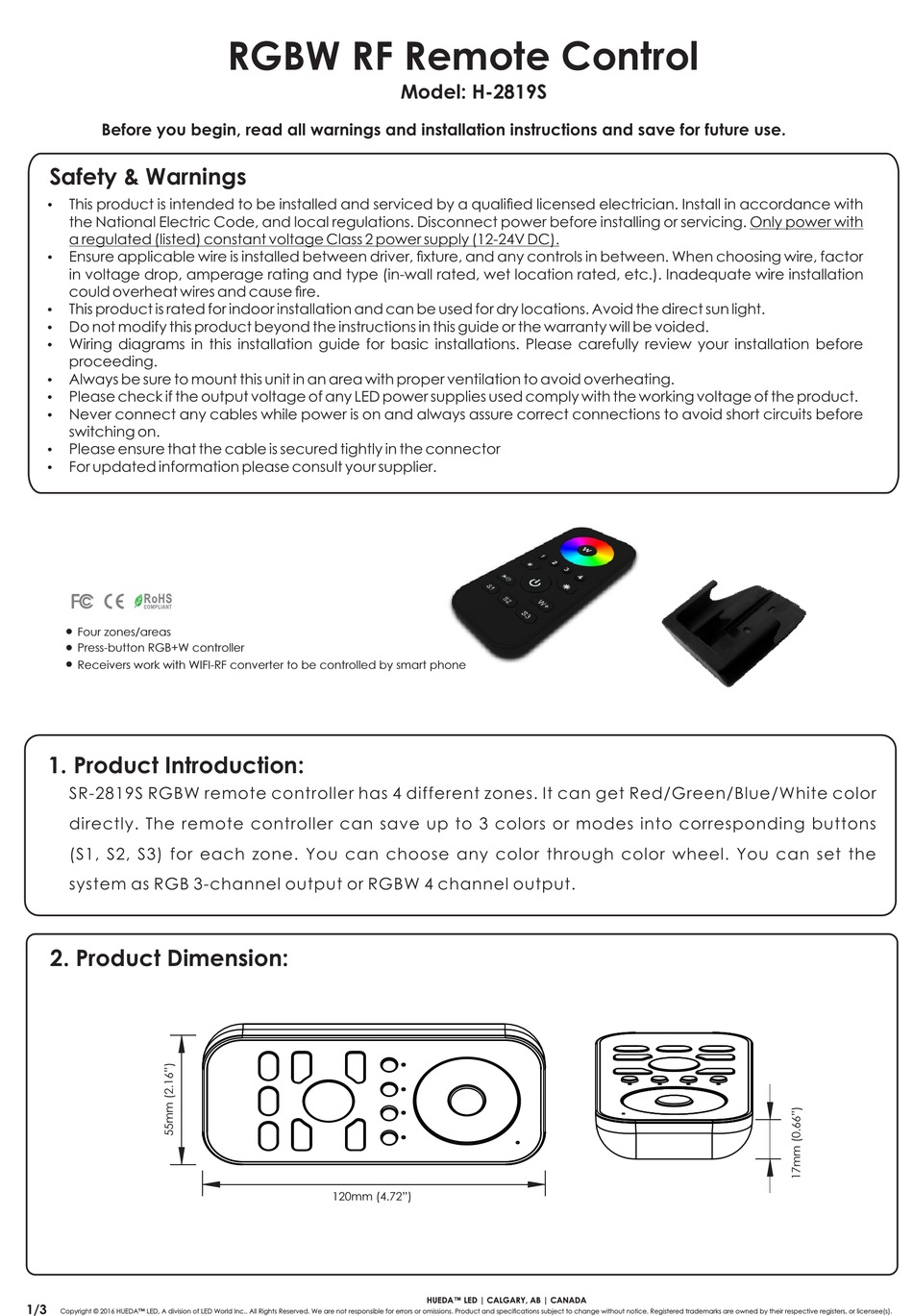

HUEDA LED H-2819S Installation Instructions

Before you begin, read all warnings and installation instructions and save for future use.
Safety & Warnings
This product is intended to be installed and serviced by a qualied licensed electrician. Install in accordance with
Ÿ
the National Electric Code, and local regulations. Disconnect power before installing or servicing. Only power with
a regulated (listed) constant voltage Class 2 power supply (12-24V DC).
Ensure applicable wire is installed between driver, xture, and any controls in between. When choosing wire, factor
Ÿ
in voltage drop, amperage rating and type (in-wall rated, wet location rated, etc.). Inadequate wire installation
could overheat wires and cause re.
This product is rated for indoor installation and can be used for dry locations. Avoid the direct sun light.
Ÿ
Do not modify this product beyond the instructions in this guide or the warranty will be voided.
Ÿ
Wiring diagrams in this installation guide for basic installations. Please carefully review your installation before
Ÿ
proceeding.
Always be sure to mount this unit in an area with proper ventilation to avoid overheating.
Ÿ
Please check if the output voltage of any LED power supplies used comply with the working voltage of the product.
Ÿ
Never connect any cables while power is on and always assure correct connections to avoid short circuits before
Ÿ
switching on.
Please ensure that the cable is secured tightly in the connector
Ÿ
For updated information please consult your supplier.
Ÿ
Four zones/areas
Press-button RGB+W controller
Receivers work with WIFI-RF converter to be controlled by smart phone

1. Product Introduction:

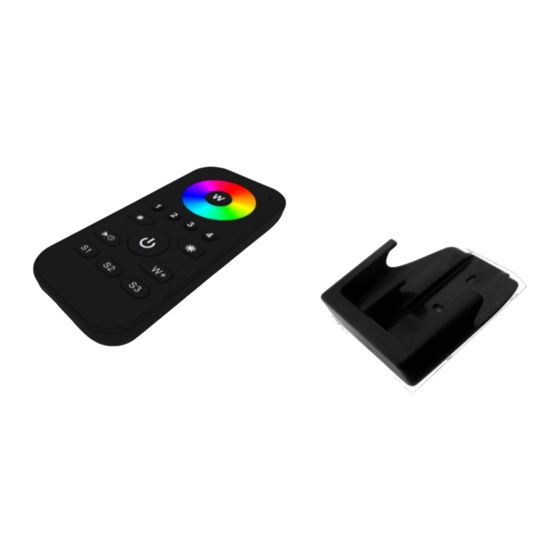

SR-2819S RGBW remote controller has 4 different zones. It can get Red/Green/Blue/White color
directly. The remote controller can save up to 3 colors or modes into corresponding buttons
(S1, S2, S3) for each zone. You can choose any color through color wheel. You can set the
system as RGB 3-channel output or RGBW 4 channel output.

2. Product Dimension:

1/3
Copyright © 2016 HUEDA™ LED, A division of LED World Inc.. All Rights Reserved. We are not responsible for errors or omissions. Product and specications subject to change without notice. Registered trademarks are owned by their respective registers, or licensee(s).
RGBW RF Remote Control
120mm (4.72")
Model: H-2819S
HUEDA™ LED | CALGARY, AB | CANADA
