Summary of Contents for EUNICYCLES SC-350

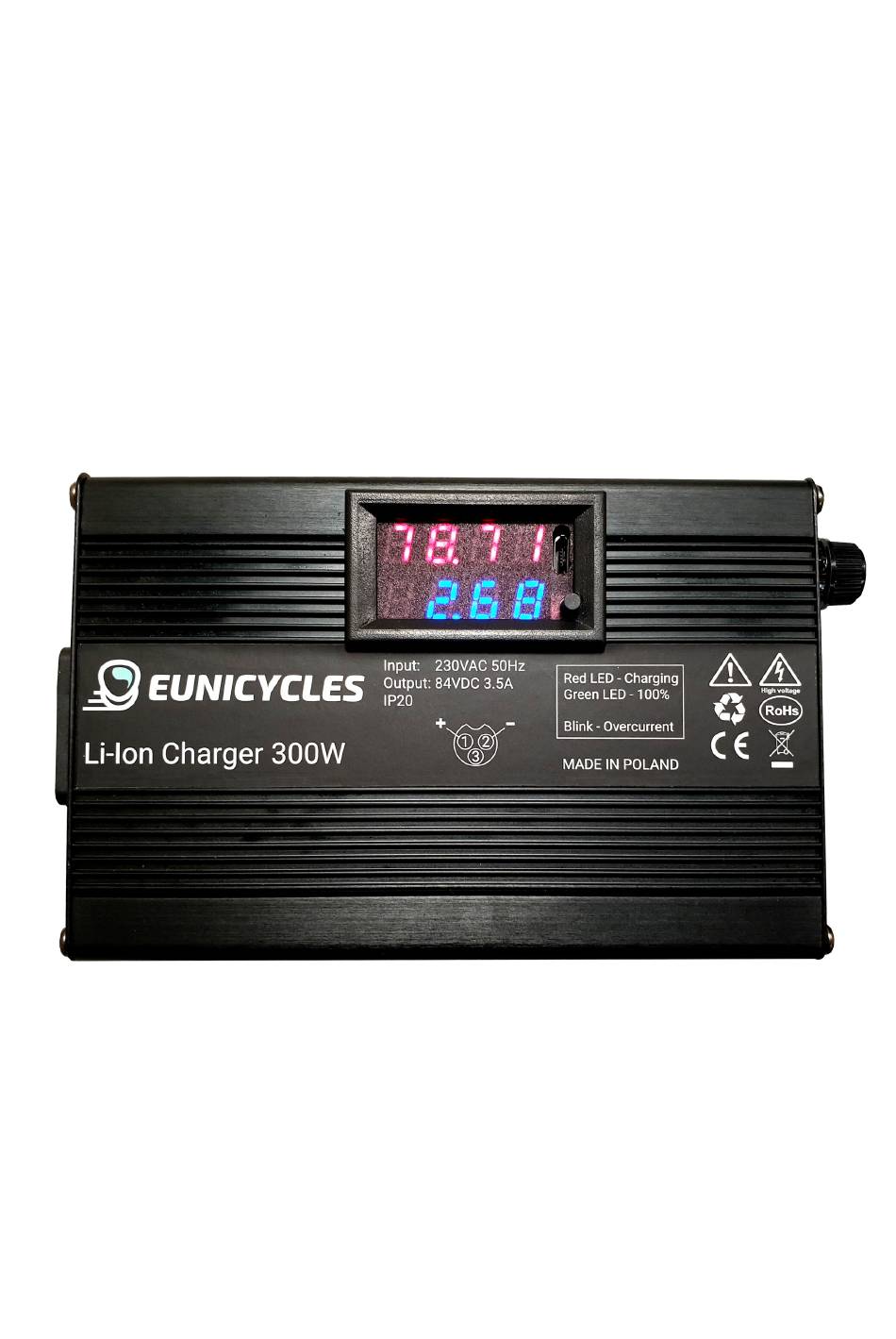

- Page 1 SMART CHARGER SC-350/360/380(L/V)/580(L)/500 Version v3.12 Advanced Li-Ion battery charger dedicated to popular electric unicycles on the maket with battery capacity higher than 600Wh...
-
Page 3: Basic Information
1. Basic information Model SC-350 SC-360 SC-380 SC-380L SC-380V SC-580 SC-580L SC-500 Operating 0 … 40°C temp. Input 230 VAC ±10% voltage Charge 58.8V 67.2V 100.8V 84V ±0.2V voltage ±0.2V ±0.2V ±0.2V Max. 5.1A 4.4A 5.0A charge 3.5A ±0.1A 6.0A ±0.1A ±0.1A... - Page 4 ① 230VAC power socket ② LED display ③ Settings button ④ USB port ⑤ Fuse socket ⑥ Charge cable ⑦ LED diode ⑧ Cooling fan King Song Poland...
-
Page 5: User Interface
2. User interface ② When charger is powered on the LED display shows information about charging voltage and current: SC-350 SC-360 SC-380(L/V) / 580(L) 58. 8 0 67. 2 0 84. 0 0 0. 0 0 0. 0 0 0. 0 0 or information about battery charge level given in percent [%] and energy transferred to battery given in Wat hours [Wh]. -
Page 6: After Charging
③ When button is pressed the LED display shows second information set. 476. 3 The value in upper line is the battery charge level given in percent [%]. The value in lower line of display is the total energy transferred to battery given in Wat hours [Wh], measured from the charger power on. -
Page 7: Default Screen
ATTENTION: when charging up to 100%, it may happen that the LED diode ⑤ turns green before "End" appears on the display. The actual end of charging will however takes place only when "End" appears on the display. Switching between fast and slow charging The charger give possibility to charge with two configurable modes: fast and slow. -
Page 8: Settings Menu
Settings menu ③ When the user wants to enter to settings menu the button should be pressed and held for 3 seconds until „cut” appears in the top line of the display. ③ By quick pressing button the user can scroll through the menu options. ③... - Page 9 Fast charge current fa5t 4. 4 0 Currents settings for fast charging mode. Value of settings can be changed in range of Slow charge current + 0.1A, up to maximium of permissible current for each type of charger. Slow charge current 5low 2.
- Page 10 Display maximum brightness bMax Percentage value of maximum power for display brightness. Maximal brightness occurs when the user touches the device (pressing the button and changing the settings). Display minimal brightness bmin Percentage value of minimal display brightness. Minimal brightness occurs when the screen is not active (none of the buttons is pressed) for a longer period of time time.
- Page 11 Log entry interval Ilog 30 5 Specifies the time in seconds as to how much the log in the flash memory should be written. Declared battery capacity (Wh) CAPA The capacity of the battery being charged. The value is used for the algorithm that predicts the charging time.
- Page 12 You can import a CSV file into an Excel spreadsheet or LibreOffice Calc. The sign separating the columns is tab. For analyzing logs, you can use our chart generator available at: https://eunicycles.eu/SmartCharger King Song Poland...
-
Page 13: Firmware Update
If the version on the website is newer, download it, unpack it and carry out the process of updating the charger software. The update process: 1. Download and install the USB DFU drivers https://eunicycles.eu/SmartCharger/DFU_Drive r.zip 2. Then Activation of the firmware update in the charger settings menu 3. -
Page 14: Charger Errors
4. Charger errors Charger shortcut or overload: When the charger detects a dangerous condition, the LED will flash green or red. This state will be maintained until the charger is powered off and on again. Exceeding the current: When the measuring system detects a charging current higher than the one determined for the given charger model, the charging process will be switched off and the information regarding the overload will appear on the display screen. -
Page 15: Tips For Use
5. Tips for use Depending on the preferences, select the appropriate charge mode and cut-off level. Charging Set level of cut-off Approximate charging time from 0% (680Wh) Full 3.5 h Optimal Fast 2.5h Charging characteristics for Li-Ion 680Wh To avoid the second charging phase of Li-Ion (charging with constant voltage), the charging must be stopped below 87% of full charge. - Page 16 6. Comments • There is life-threatening voltage inside the device. Please do not open the charger. Please contact us if in the event of the failure. • First connect the charger to the 230VAC mains voltage, then to the unicycle. •...
