Summary of Contents for HIPOTRONICS KVM-W Series
- Page 1 Operating Instructions KVM-W Series Wireless Series Kilovolt Meters Version 1.1...
- Page 2 Title Wireless KVM Date 02/2018 Authors Layout Part number KVM-W Revision History V1.0 02/2018 Initial draft of the document V1.1 01/2020 Added Waveform Capture description...
- Page 3 Note HIPOTRONICS has a policy of continuing improvement on all their products. The design of this instrument will be subject to review and modification over its life. There may be small discrepancies between the manual and the operation of the instrument, particularly where software has been upgraded in the field.
- Page 4 Manual Conventions In the manual, the following conventions are used: Indicates a matter of note. If it refers to a sequence of operations, failure to follow the instructions could result in errors in measurement. Indicates hazards. There is a risk of equipment damage or personal injury or death. Carefully read and follow the instructions.
- Page 5 Foreword Welcome, new user of the “KVM-W Series”. Thank you for placing your confidence in our product. With the purchase of this measuring instrument you have opted for all the advantages that have built a world-wide reputation for a HIPOTRONICS Instrument: robustness, performance and quality. As a result, this instrument provides a solution which achieves the optimal combination of traditional know- how and leading edge technology.
-
Page 6: Table Of Contents
Contents Introduction Receiving Instructions .................. 4 General ......................4 Scope of Supply ................... 4 1.2.1 Standard Scope of Supply ............... 4 Technical Data: KVM-W ................5 1.3.1 Physical and Environmental Specifications ........5 1.3.2 Measurement .................. 5 Safety General ......................6 Essential Safety Recommendations ............ - Page 7 8.0.1 Cleaning the Instrument ..............22 8.0.2 Instrument Calibration ..............22 Instrument Storage ..................22 Packing and Transport ................23 Recycling ....................23 Customer Support Declaration of Conformity................25 Hipotronics, Inc......................25 Warranty ....................26 Introduction...
-
Page 8: Introduction
A suitable remark should be recorded on the delivery documents. A claim for damage must be reported immediately to the transport company and to the Customer Support Department of HIPOTRONICS or the local agent. It is essential to retain the damaged packing material until the claim has been settled. -
Page 9: Technical Data: Kvm-W
Technical Data: KVM-W 1.3.1 Physical and Environmental Specifications Power Input for Charging 5VDC 2A 14…122° F (-10 .. 50°C) Operating temperature -4…158° F (-20 .. 70°C) Storage temperature Humidity 5 .. 95 % r.h. non-condensing Wireless Module: 7.3”x4.25”x3.3” (18.5cm x 10.8cm x 8.4cm) Dimensions (W x D x H) KVM100W-DO: 11”x11”x25”... -
Page 10: Safety
The unit should only be operated after carefully reading the user manual which is an integral part of the instrument. HIPOTRONICS and its sales partners refuse to accept any responsibility for consequential or direct damage to persons and/or goods due to none observance of instructions contained herein or due to incorrect use of the equipment. -
Page 11: Essential Safety Recommendations
Essential Safety Recommendations Before connecting the instrument ensure that the device-to-be tested is completely de- energized and isolated from both line and load. Every terminal should be checked and verified before connection of the instrument. Ground connections may be left in place. Never operate the equipment in an explosive environment or where there are flammable gases or fumes The instrument must always be grounded (i.e. -
Page 12: Theory
3 Theory Introduction Each KVM high voltage divider is calibrated to a specific low-arm wireless module to ensure the highest accuracy and precision of the device. These systems can measure DC and AC waveforms, up to 1kHz, and transmit measurement data to our mobile KVM-W application. The remote app is designed to be simple, user friendly, and informative. -
Page 13: Wireless Module

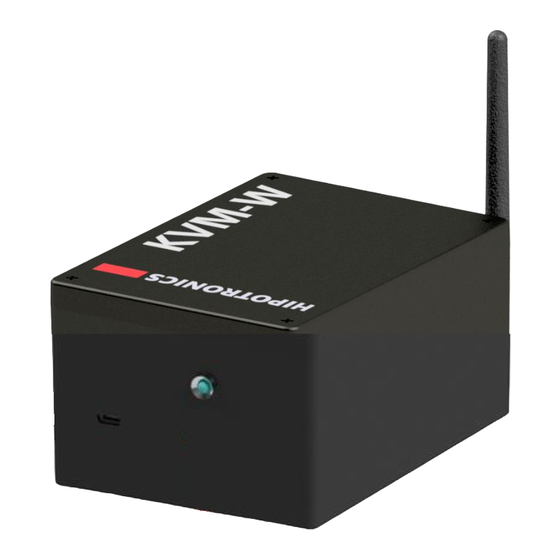

4 Wireless Module Ports USB-C Port: Insert USB-C cable from 5V power module adapter to re-charge the KVM-W LED Indicator: • Programmable color from app • Will turn off when app is not connected to it and not charging, and blink every 30 seconds while in sleep mode •... - Page 14 Antenna: Increases wireless transmission range Ground Stud: Attach ground cable to this in order to ensure proper reference grounding BNC Port: Attach BNC from HV Divider to here Wireless Module...
-
Page 15: Connection And Setup
To get the KVM-W app on your mobile device, go to the Apple App Store. Search for KVM-W or Hipotronics, and download the app. Upon opening the KVM-W app, if you are not already connected to a KVM-W device through WiFi, it will prompt you to connect to one. - Page 16 Once returned to the KVM-W app, it will indicate that it is establishing measurement communication with the device as seen below. If this connecting times out the first try, then press Retry. It should connect within a couple of seconds. If measurement connection is unable to be established, go back to the iPhone Settings menu and make sure you are still connected to the device’s WiFi.
-
Page 17: Operating Modes
6 Operating Modes Measurement Displays Press the drop-down arrow on either of the top left or right measurement titles to choose from a list of available measurements, as seen in the image below. Both displays update constantly at a rate of 4 times per second. -
Page 18: Graph
Graph The app can record test data values for RMS, DC, and Absolute Average. To start recording, press the Play button located to the bottom left of the graph display. The graph will then begin updating automatically with incoming data values once per second. There are three selectable measurements to display on the graph. -
Page 19: Waveform Capture
To save a report of the recorded values, press the Save icon in the bottom right side of the screen. You can then find these tests by pressing the Load icon. Waveform Capture To view a snapshot of the signal that is currently being measured by the KVM-W, click the waveform button on the app, next to the graph play/pause button. -
Page 20: Reports
Reports After pressing the Load icon in the main measurement screen, it will bring up the Reports menu screen where all of the saved tests will be listed. When you select a report, there will be an option to view, share, edit the name, or delete the report. -
Page 21: Settings
Settings To get to the settings window, press the Settings icon in the lower right corner of the main measurements screen, as seen below. Once in settings, you will have the ability to change the LED color display of the wireless module that you are connected to, and the SSID display name of the device. -
Page 22: Troubleshooting
7 Troubleshooting Diagnostics Trouble connecting to the wireless KVM module from mobile device: - Make sure your mobile device that you are trying to connect is within 50ft of the KVM wireless module. - Make sure the wireless module has enough charge, the LED should blink once every 30 seconds if it is in sleep mode and waiting to be connected to. - Page 23 2. Run the KVM-W_Programming_Tool that was included on your USB drive with the KVM-W a. Click ‘Browse…’ and select the file on that same USB drive with the extension “.hex” Troubleshooting...
- Page 24 b. Select the correct COM Port from the drop down menu, which should appear as “USB Serial Port (COM#)” c. Click Program, and the application will start to establish communication with the wireless module Troubleshooting...
- Page 25 d. Do not close the application or unplug the module while programming is in process e. Once the programming is complete, it will display ‘Programmed Successfully’, and you may then close the application and unplug the device Troubleshooting...
-
Page 26: Miscellaneous
An annual calibration of the instrument is recommended. As the calibration process is fairly extensive, the instrument is recommended to be calibrated and, if necessary, adjusted at HIPOTRONICS’s factory. An updated calibration report will then be issued. Instrument Storage If the instrument is to remain unused for any length of time, it is recommended to leave the wireless module on trickle charge so that the internal batteries do not completely drain and become unuseable. -
Page 27: Packing And Transport
Packing and Transport The packing of the KVM instrument provides satisfactory protection for normal transport conditions. Nevertheless, care should be taken when transporting the instrument. If return of the instrument is necessary, and the original packing crate is no longer available, then packing of an equivalent standard or better should be used. -
Page 28: Customer Support
All error messages appear on the display of the HVT measuring instrument. If persistent problems or faulty operation should occur then please contact the Customer Support Department of HAEFELY HIPOTRONICS or your local agent. The Customer Support Department can be reached at the following address:... -
Page 29: Declaration Of Conformity
So, the product complies with the requirements of the EMC directive 2004/108/EC and the low voltage directive 2006/95/EC. Product: KVM-W Description: The KVM-W Series AC/DC Wireless Kilovoltmeters are highly accurate, portable and modern voltage measurement and calibration systems. Standards: EN 61010-1: 2001 EN 61326-1: 2006... -
Page 30: Warranty
Hipotronics, Inc. and if, in the sole discretion of Hipotronics, Inc., Purchaser's claim relates to any materials of a component part, or of the manufacturer of a device of which the defective part is a component, Hipotronics, Inc.
