Summary of Contents for ViewPlay SmartShare mini

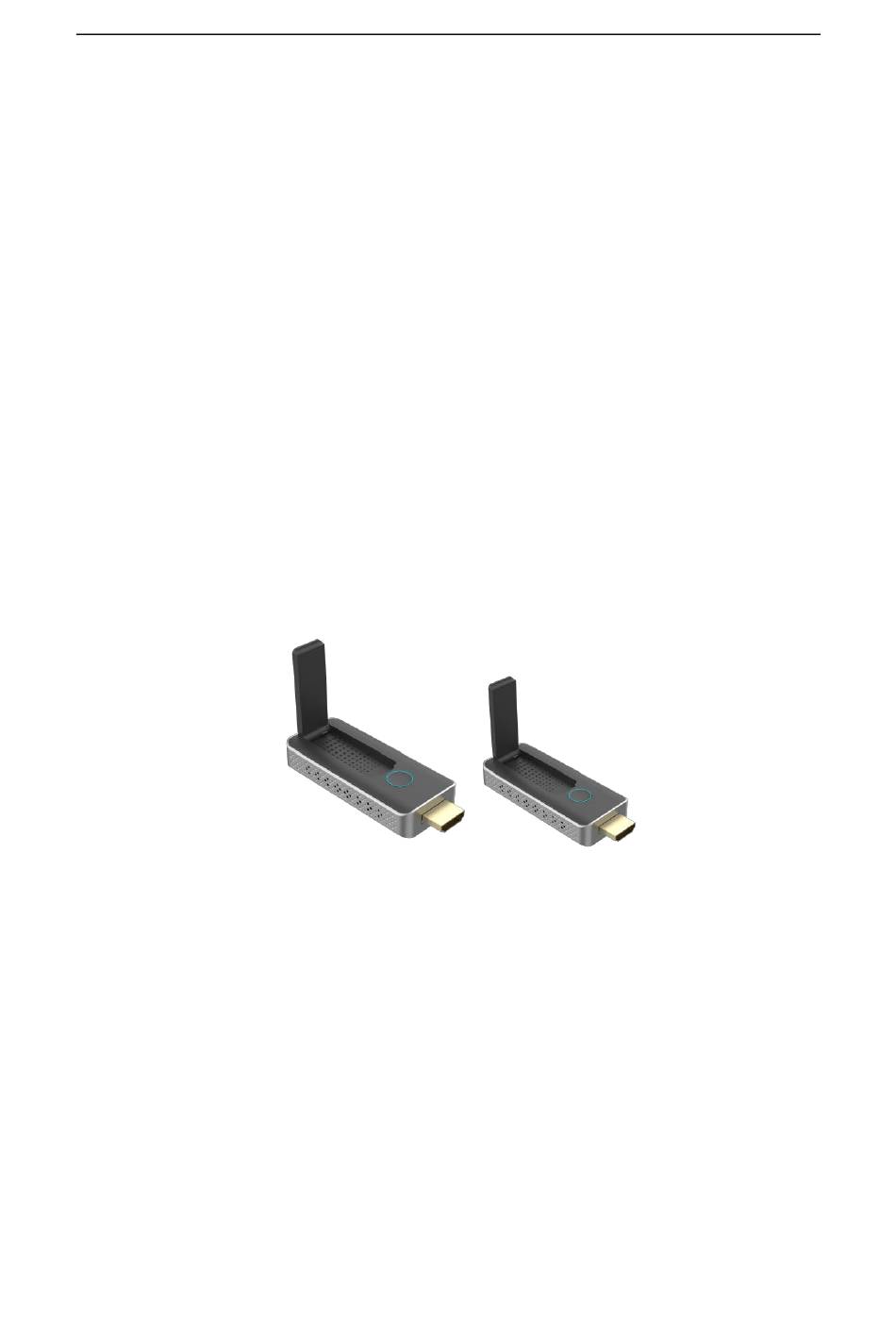

- Page 1 Wireless Presentation and Collaboration System for the modern enterprise SmartShare mini G102RX User Guide Version 1.0 ViewPlay Co., Ltd. 1 / 14...
- Page 2 APP required, no set up, no messy cables, just click and share. SmartShare mini support up to 30 presenters to share their contents instantly without wasting valuable meeting time.
-
Page 3: Product Features
Simple connect the transmitter with the PC HDMI ports, then click the Plug and play button to start the streaming. SmartShare mini doesn’t need any software or app installation, no setup, App Free no IT team. Support iOS/Android/Windows system, support Blu-ray DVD player, All in one media player and any devices with HDMI jack. -
Page 4: Package Included
Package Included: Transmitter x1 Receiver x 1 USB cable x 2 HDMI extender cable x 1 Devices Requirement Please ensure the devices meets the following requirements: iOS 9.0 or above Android 5.0 or above Product Specification Feature Video input Up to 1080P/60 Video decode and output Up to 1080P60... - Page 5 3. LED: to display different statue. 4. Micro USB: for power supply. Remark: if the source devices HDMI with 5V power output, then no need connect USB cable for power. LED indicator of the SmartShare mini TX Description Static red TX system is booting on...
-
Page 6: Receiver Installation
5. HDMI out: connect with monitor or projector. 6. Button: switch to different mode, TX/airplay/dlna mode or miracast mode. 7. LED: to display different statue. 8. Micro USB: for power supply. LED indicator of the SmartShare mini RX Description Flashing blue Waiting for connection... - Page 7 2）Miracast mode: for android phone which support miracast mode. 3) Connect to internet: Connect the RX SSID with your smart devices, the SSID and password are showed on the left upper corner of the screen. 7 / 14...
- Page 8 Open the browser with your phone, and input the IP address which show on the right upper corner of the screen to enter to the RX management platform. Remark: when connect to router, the IP address will be update accordingly. 8 / 14...
- Page 9 Select the network and connect in the management platform, the RX will link to the network and show the network SSID on the middle of the screen. (to get a better performance, we recommend to connect with 5G router) 9 / 14...
- Page 10 Select the network and connect in the management platform, the RX will link to the network and show the network SSID on the middle of the screen. (to get a better performance, we recommend to connect with 5G router) 4）AP password management: user can change AP password in the management page.
- Page 11 If the RX HDMI OUT size is not compatible with the display, user can use Screen Position to adjust the zoom in and zoom out the screen. 7）Airplay mode: you can select to use streming mode or mira mode. Stream from TX: SmartShare mini TX Installation 11 / 14...
- Page 12 TX with PC by USB cable for power. 2. The LED indicator of the SmartShare mini TX will turn red when it’s booting up. 3. The LED indicator will become blue and flashing when SmartShare mini is ready to stream.
- Page 13 Stpe2: Search RX SSID and connect. (SSID: RXxxxxx, Password: 12345678), the SSID show on the left upper corner of the screen. Or if the RX already connect with your network, and make sure your devices is in the same ...
- Page 14 Remark: there are different name on difference brand phones or tablets: WIFI Display, WLAN Display, Wireless Display, Allshare Display, Allshare Cast, Wireless Display 14 / 14...
- Page 15 FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation.
