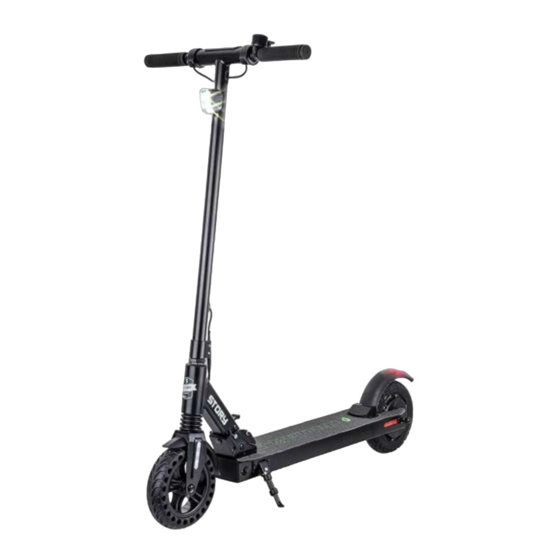

Summary of Contents for STORY E-motion YTE-F02
- Page 1 USER MANUAL Please read the user instructions carefully before usage. Manual V.2.0 www.storyoriginal.com...
-
Page 2: Table Of Contents
Thank you for choosing ™ E-motion Scooter! Safety instructions ..............................2 Diagram ................................... 4 Packing list ................................5 Assembling your scooter ............................6 How to Ride?................................7 Charging .................................. 8 Folding and carrying ............................... 9 Warnings ................................10 Maintenance ................................. 14 Specifications .............................. -
Page 3: Safety Instructions
The scooter is a recreational transporter. Before mastering riding skills, you need to practice. Neither Story™ Originals nor the retail seller/dealer of this product is responsible for any injuries or damage caused by a rider's inexperience, failure to follow the instructions in this document or not complying to the national regulations of electrical scooter usage. - Page 4 As with any electronic device, use a surge protector when charging to help protect your scooter from damage due to power surges and voltage spikes. Only use the charger supplied by Story™ Originals. Do not use a charger from any other product or model.
-
Page 5: Diagram
2. Diagram Electric throttle Electric brake Headlight Battery capacity Speedometer Power button Stem Folding pedal Speed mode Foot brake / rear fender Motor Hub Kickstand Display and power button The display/dashboard shows you the following information related to riding and when parked. Speedometer: Indicates the current speed and displays error code when faults are detected (see section 11 for more about troubleshooting and error codes) Speed mode: 1 to 3 (click the power button once to switch the mode) -
Page 6: Packing List
3. Packing list Grips/handles x2 Mainframe User Materials User Quick start manual Accessories Umbraco key x2 Battery Charger When unboxing your scooter, please verify that the above items are included in the package. If you are missing any components, please contact your dealer. After verifying that all components are present and in good condition, you can assemble your new scooter. -
Page 7: Assembling Your Scooter
4. Assembling your scooter 1. Unfold the scooter by pushing the stem forwards 2. Install the handlebars by turning each handle until you hear a click. Afterwards, unfold the kickstand towards the rider (se illustrations). Left (L) handlebar to support the scooter. must be turned clockwise, whereas the right (R) handlebar must be turned counterclockwise. -
Page 8: How To Ride
5. How to Ride? Always wear approved helmet and protective gear to 1. Power on the scooter by holding power button 0.5 sec. descrese the risk of injury. Check the display and charge the scooter if battery capacity is low. Switch speed mode to 1 (1=ECO mode should be used by beginners learning to ride the scooter) by clicking the power button once. -
Page 9: Charging
4. Slow down by releasing the throttle and press the 5. To turn, shift your body weight and turn the handle electrical brake on the left hand side. Simultaneously, slightly. step on the brake fender to engage the mechanical brake. WARNING! When releasing the throttle suddenly or heavy braking you risk serious injury due to loss of traction, balance and/or fall. -
Page 10: Folding And Carrying
7. Folding and carrying Step on the folding pedal (1) and simultaneously push the handlebar forwards (2). Then fold the handlebars (3) backwards until it locks into place. When your scooter is folded simply lift the scooter byt the stem and carry it along. -
Page 11: Warnings
8. Warnings WARNING! DO NOT ride over speed bumps, WARNING! DO NOT ride the scooter in rain. thresholds, or other bumps at HIGH SPEED. WARNING! Watch your speed when traveling WARNING! Watch your head when passing downhill. Use both brakes together when through doorways. - Page 12 WARNING! DO NOT press the throttle when WARNING! Avoid contacting obstacles with walking with the scooter. the wheels. WARNING! DO NOT carry objects on the WARNING! DO NOT ride the scooter only one handlebar. foot.
- Page 13 WARNING! DO NOT ride on public roads, WARNING! DO NOT rotate the handlebar motorways, or highways. violently while riding high speed. WARNING! DO NOT ride through puddles or WARNING! The scooter is for one rider only! other water masses deeper than .08 inches DO NOT ride the scooter with multiple (2 mm).
- Page 14 WARNING! DO NOT step on folding pedal WARNING! DO NOT touch the motor hub after while riding. riding - the motor hub can be hot. WARNING! DO NOT take your hands off the WARNING! DO NOT attempt to ride up and handlebars while riding.
-
Page 15: Maintenance
9. Maintenance Cleaning and Storage Use a soft, wet cloth to wipe the mainframe clean. Hard to remove dirt can be scrubbed with a toothbrush and toothpaste, then cleaned with a soft, wet cloth. Scratches on plastic parts can be polished with fine grit abrasive paper. -
Page 16: Specifications
Specifications Unfold: Height x width (bars) x length 96 x 50 x 105 cm Product specification Folded: Height x width (no bars) x length 33,5 x 20 x 108 cm Weight 12 kg Max Load 100 kg Max Speed 25 km/h Product performance Climbing ability Max Range... -
Page 17: Troubleshooting And Error Codes
Troubleshooting and Error Codes My scooter is not charging when plugged in: Problem: Most possible cause of this problem is LOW VOLTAGE of the battery due to not charging the scooter after usage. This problem occurs more often if the scooter was not charged before storge for a period of time - more than 7 days. -
Page 18: Certification
Certification EC DECLARATION OF CONFORMITY (EC DoC) As an importer and authorized representative within the EU responsible for the electrical scooter identified as Story E-motion YTE-F02 (product name and model), Boarddistribution ApS hereby declare that the specified product(s) conforms with all requirements in the particular directives and standards in the European Community (EC) which applies to the product. - Page 19 The manufacturer reserves the right to make changes to the product, release firmware updates, and update this manual at any time. Visit www.storyoriginal.com to check for latest user materials. You must obtain the latest updates and safety instructions. www.storyoriginal.com...
