HydraBed Reel Lift Retrieval System Installation Manual

Reel Lift Retrieval System Installation Guide

This guide will assist you in the installation of the Reel Lift Retrieval System. Before any work is

performed, make certain that all pre-cautions are followed to insure the safety of others and to prevent

damage of equipment.

Arm assembly

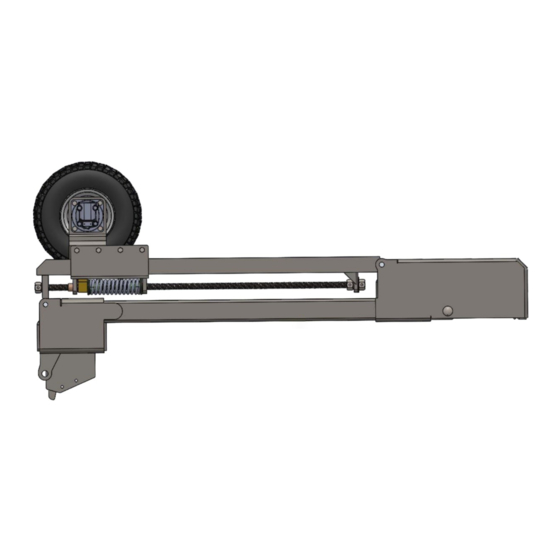

Mount the retrieval system onto the arm assembly as shown in the picture above.

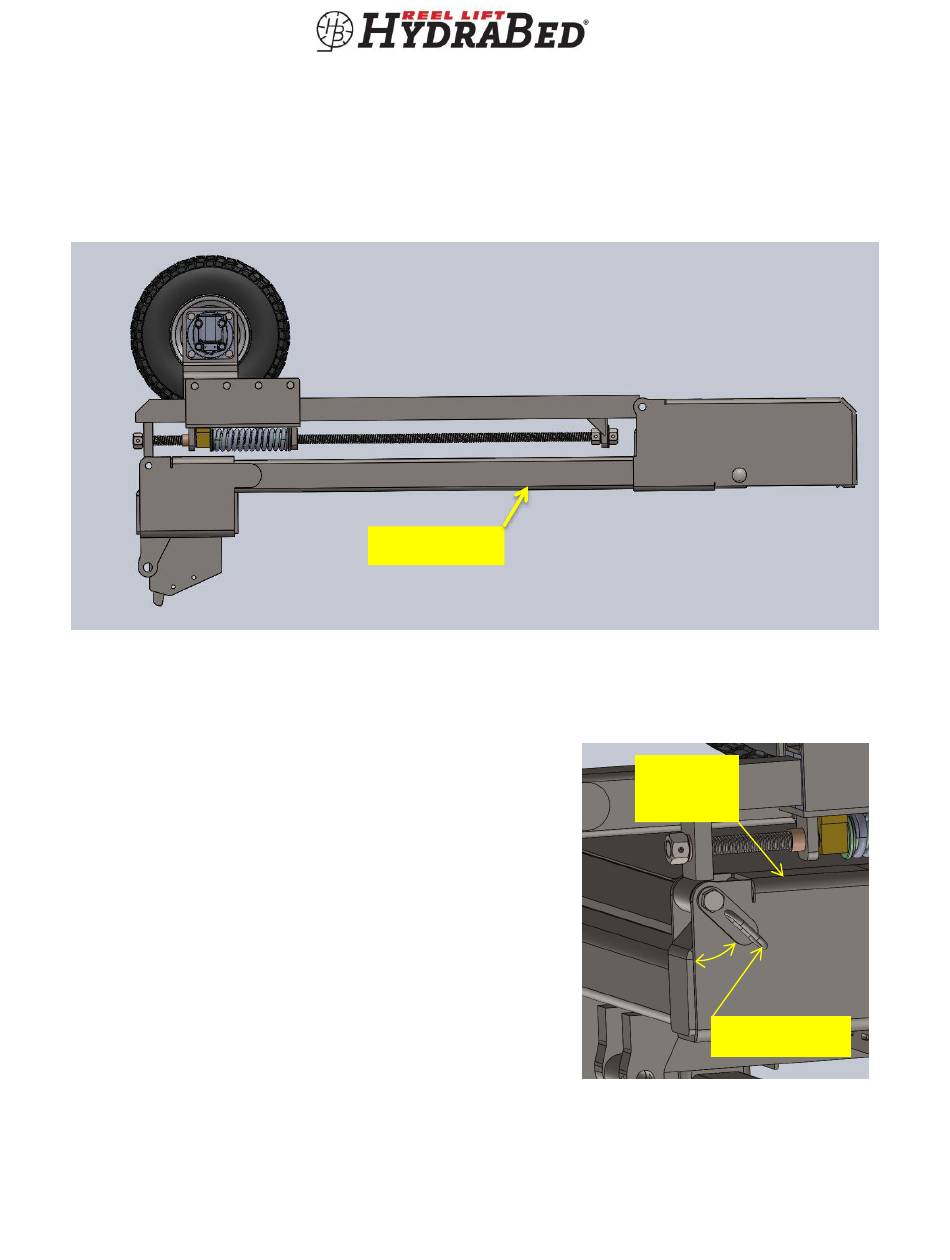

Install the hose bracket onto the rear mounting hole of the arm

Arm

assembly at a 45° angle from the rear edge of the arm assembly

assembly

as shown. Use one (1) of the two (2) provided ¾" x 5-1/2" bolts

to secure the hose bracket and the retrieval system onto the

arm assembly. Figure 2

45°

Hose bracket

Figure 2

Table of Contents

Do you have a question about the Reel Lift Retrieval System and is the answer not in the manual?

Page 1 Reel Lift Retrieval System Installation Guide This guide will assist you in the installation of the Reel Lift Retrieval System. Before any work is performed, make certain that all pre-cautions are followed to insure the safety of others and to prevent damage of equipment.
Page 2 Assemble the needle valve assembly as follows. Leave all connections loose until the assembly is complete to aid in the installation onto the Reel Lift bed: Connect the two (2) JIC to O-ring branch tees and the two (2) 90° swivel elbow fittings.
Page 3 Connect the two (2) 90° O-ring adjustable street elbows to the open end of the 8-1/2” hoses. Connect the two (2) male flat faced quick couplers to the O-ring elbows. Figure 6 Figure 6 To mount the needle valve assembly, connect the quick couplers;...
Page 4 Install the hydraulic motor bracket assembly onto the retrieval sliding assembly as shown using the hardware provided and into the Sliding vacant holes. (Wheel and hub removed for assembly clarity) Figure 8 Vacant holes Figure 8 Install the two (2) straight JIC to O-ring fittings into the hydraulic motor.
Page 5 Operation of the retrieval unit is as follows: Use a 1-5/8” socket on the end of the acme rod to make the tire on the retrieval system contact the reel. Start the vehicle engine and open the valve tool box to activate the clutch pump. The valve handle that operates the tool circuit will operate the retrieval system.
