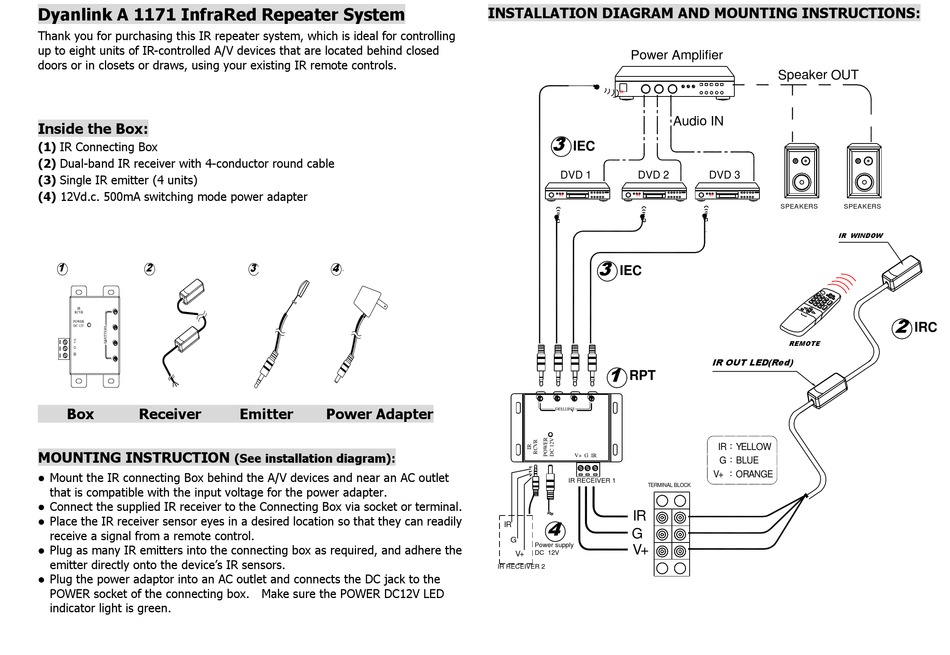

Dyanlink A 1171 Quick Start Manual

Dyanlink A 1171 InfraRed Repeater System
Thank you for purchasing this IR repeater system, which is ideal for controlling
up to eight units of IR-controlled A/V devices that are located behind closed
doors or in closets or draws, using your existing IR remote controls.
Inside the Box:
(1) IR Connecting Box
(2) Dual-band IR receiver with 4-conductor round cable
(3) Single IR emitter (4 units)
(4) 12Vd.c. 500mA switching mode power adapter
RPT-104-7 IRC-3856K16-1
1 2
IR
RCVR
POWER
DC 12V
Box Receiver
MOUNTING INSTRUCTION
Mount the IR connecting Box behind the A/V devices and near an AC outlet

that is compatible with the input voltage for the power adapter.
Connect the supplied IR receiver to the Connecting Box via socket or terminal.

Place the IR receiver sensor eyes in a desired location so that they can readily

receive a signal from a remote control.
Plug as many IR emitters into the connecting box as required, and adhere the

emitter directly onto the device's IR sensors.
Plug the power adaptor into an AC outlet and connects the DC jack to the

POWER socket of the connecting box. Make sure the POWER DC12V LED
indicator light is green.
3 IEC-3502F 4 PWS-1205
Emitter Power Adapter
(See installation diagram):
INSTALLATION DIAGRAM AND MOUNTING INSTRUCTIONS:
Power Amplifier
IR
3
IEC
DVD 1 DVD 2
IR IR
3
IEC
1
RPT
V+ G IR
IR RECEIVER 1
TERMINAL BLOCK
IR
4
IR
G
G
Power supply
V+
DC 12V
V+
IR RECEIVER 2
Speaker OUT
Audio IN
DVD 3
IR
SPEAKERS SPEAKERS
IR WINDOW
REMOTE
IR OUT LED(Red)
：
IR YELLOW
：
G BLUE
：
V+ ORANGE
2
IRC
