PARTS INCLUDED • DESCRIPTION • QTY.
1
Skyrack Trunk Bike Carrier
2
Small Strap with Small Hook (2' x 1")
3
Long Strap with Big Hook (5' x 1")
4
Safety Strap (6.5' x 1")
WARNINGS / LIMITATIONS
• Number of bicycles carried should not exceed 3.
• Do not exceed the maximum carrying capacity of 100 lbs (45kg).
• Verify periodically that all bolts and knobs are tight.
• Verify the wear of the straps and change it if needed.
• Do not use this bike carrier off-road.
• Do not use this bike carrier for tandems or recumbents.
• Do not install the bike carrier on trailer or towed vehicle.
• If you don't use the safety strap, it may result in loss of bicycles.
• Failure to follow above guidelines voids warranty.
MOUNTING INSTRUCTIONS
➊
1- Loosen the two-adjustable knob to open the bike carrier and retighten as shown.
2- Simply tighten the nut of the of the 6-metal buckle in the direction as shown.
3- Attach the Small Strap with Small Hook (#2) on the upper buckle and the lower buckle and attach the Long Strap with Big Hook
(#3) on the lateral buckle.
INSTALATION INSTRUCTIONS
1- Clean the trunk and the rear of your car.
2- Loosen the two-adjustable knob to open the bike carrier.
3- Move the upper supports leg until he is slighty upwards about 15 to 20 degrees and retighten.
4- When you have assembled the bike carrier to is proper setting, place it on the vehicle. Now attach the two upper hooks (#2) into
the slot at the leading edge of the trunk. Adjust the straps lengths so the bike carrier stays in place on the car.
5- Now attach the two lateral hooks (#3) to the outside edge of the trunk lip. The straps should always be at a 90-degree angle from
the attached edge.
6- Now attach the two lower hooks (#2) on the bottom edge of the trunk.
7- Tighten all the straps. We also recommend making a simple knot at the end of the cam buckle with the extra length of the straps.
__________________________________________________________________________________________
Skyrack Canada • (514) 919-6134• info@skyrack.ca • www.skyrack.ca
SKYRACK TRUNK BIKE CARRIER - 3 BIKES
MODEL # SR-BR-101
➋

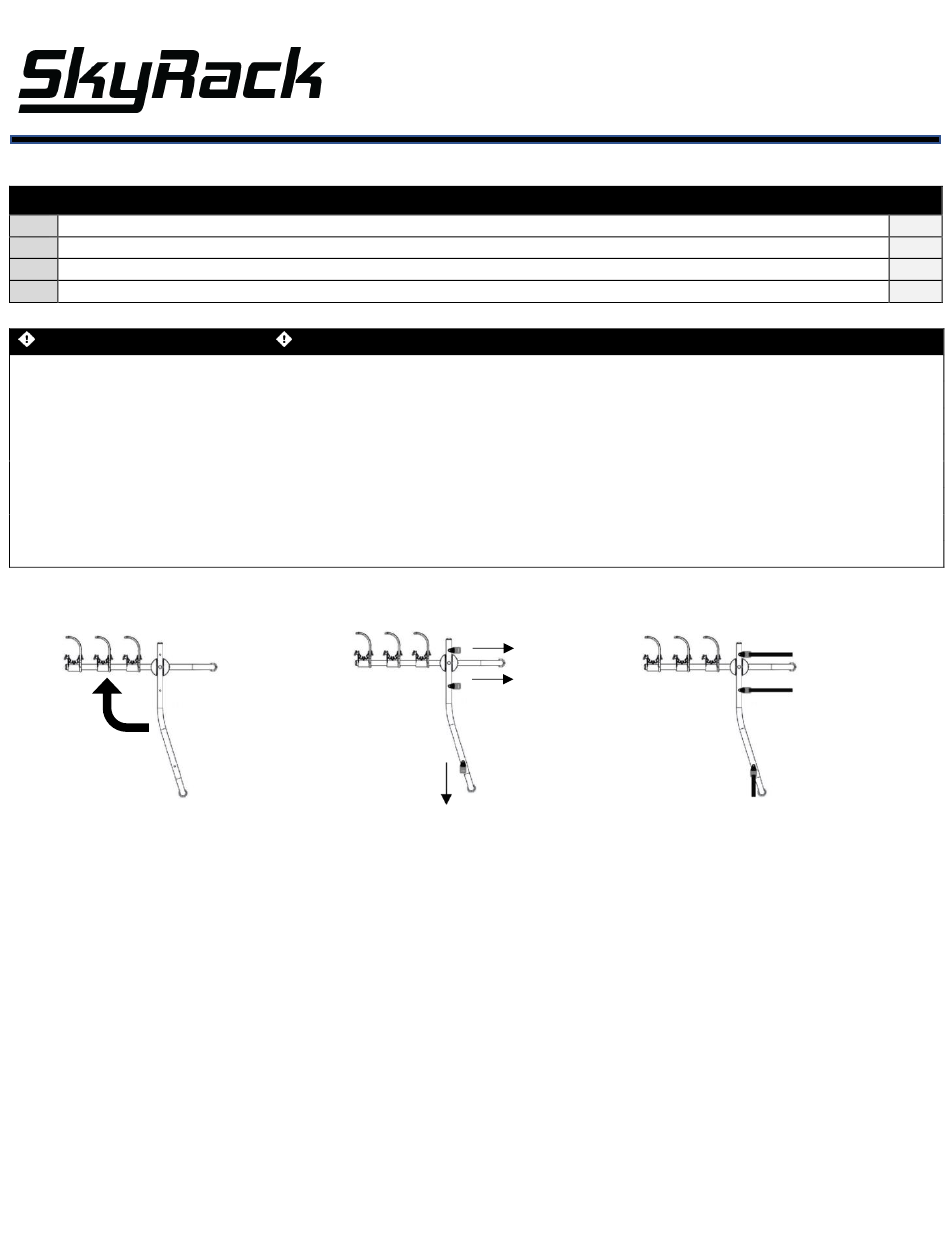

INSTRUCTON & ASSEMBLY SHEET
➌
Lower buckle (#2)
1
2
4
1
Upper buckle (#2)
Lateral buckle (#3)
1
