LCD UNIT
UX-R9000

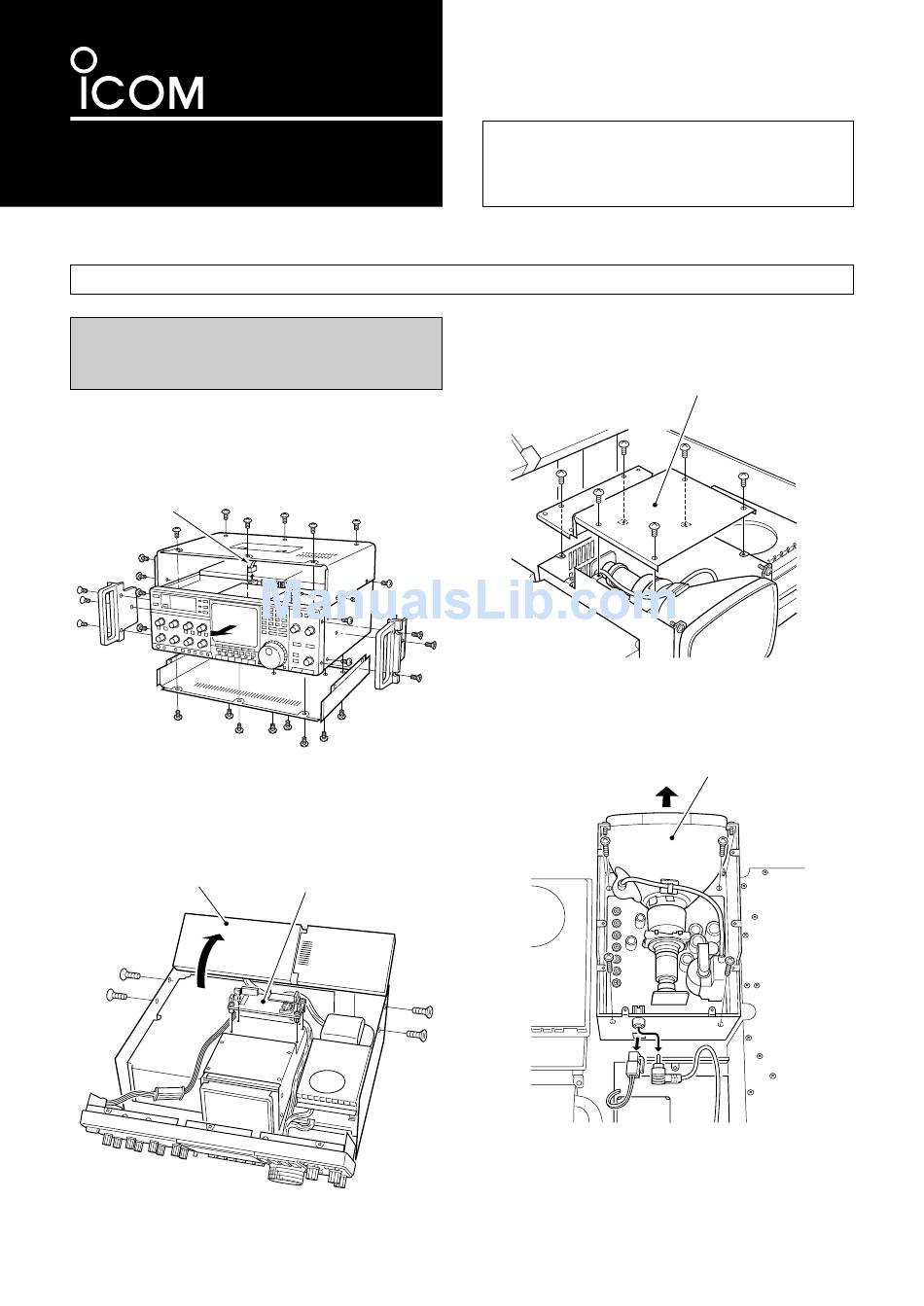

RWARNING:
DISCONNECT the AC power
cable and wait several minutes before opening the
receiver.
q Remove the rack mounting handles, top/bottom cov-
ers and front panel as shown in the diagram below.
w Remove the speaker cable as shown in the diagram
below.
Speaker cable
e Remove the 4 screws and open the RF A/TV units
as shown in the diagram below.
r Remove the 4 screws and remove the SW-D unit as
shown in the diagram below.
RF A/TV unit
INSTRUCTIONS
INSTALLATION
SW-D unit
Thank you for purchasing the UX-R9000 LCD UNIT.
Please read these instructions before installing and
using this product.
t Remove the 6 screws from the DISPLAY unit (CRT)
and remove the cover as shown in the diagram
below.
y Remove the 4 screws and 2 connectors from the
DISPLAY unit (CRT) and remove the unit as shown
in the diagram below.
DISPLAY unit cover
DISPLAY unit
