STIF VIGIBELT TOUCH ATEX (II 2 D) Instruction Manual

www.stifnet.com

FUNCTION

®

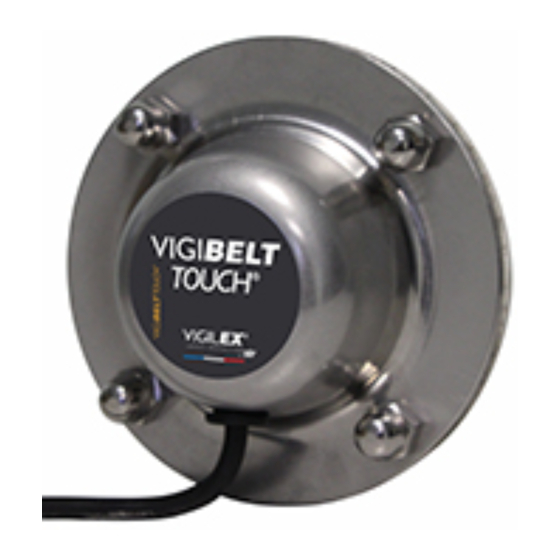

- The VIGIBELT TOUCH is a lateral movement sensor that detects run-out of elevator belts or conveyor belts, and
at the same time the run-out of the lift pulley. It reacts to the pressure of the belt coming into contact with the front
face of the sensor. Baffle plates are usually fitted opposite each other, preferably on the upward leg close to the
pulleys for elevators, and on the load bearing side close to the drums for conveyors.
The sensors can be connected directly to a PLC, or for absolutely safety, to an independent "monitoring M-JET"
central unit. The electrical circuit can control an alarm or a machine shut down.
For elevators more than 20 meters long, we recommend fitting the head with a second VIGIBELT
-
on the upward leg.
The sensors trigger when the belt applies a force of approximately 5 daN.
-

DESCRIPTION

®
- The VIGIBELT TOUCH kit comprises two sensors, four elastomer spacers (3mm NBR) and the fastenings (M6).
Composition :
2x VIGIBELT
23mm
PRECAUTIONS
®
The VIGIBELT TOUCH must be installed, connected and put into service by competent personnel. The personnel
should be qualified electricians and know the regulations and requirements concerning the installation of these
appliances, especially when installed in ATEX areas.
- Carry out a study prior to the electrical connection of the VIGIBELT
diagram, PLC control, electricity supply and protection).
- Define the sensing distance between the belt and the elevator shaft (confirmation of the triggering distance by the
person in charge of the site).
- Before any installation or intervention on the VIGIBELT
elevator is shut down (intervention warning to be posted on the machine).
®
- When the VIGIBELT TOUCH is dismantled, the user should ensure that the appliance is scrapped properly and
that the components are passed to the appropriate specialist collection centres according to their nature (stainless
steel, electrical equipment, seals, etc.).
Z.A. de la lande - 49170 Saint-Georges-sur-Loire - France
Siège social, achats et usine :
Service commercial France Export :
Email : sales@stifnet.com - Site internet :
SAS au capital de 800 000 € - R.C.S. Angers B 328 876 503 - 84B12 APE 2511Z - N° TVA FR 35 328 876 503
INSTRUCTION MANUAL VIGIBELT
- VER. 01/16 - N° DOC BE0455041
®
TOUCH 4x elastomer spacers (th.3mm)
tél.: +33 2 41 72 16 80 - Fax +33 2 41 72 16 85
tél.: +33 2 41 72 16 82 - Fax +33 2 41 39 32 12
www.stifnet.com
®
TOUCH ATEX (II 2 D)
®
TOUCH sensors (standardised electrical
®
TOUCH, it is essential to make sure that the bucket
GB – 1/4
®
TOUCH kit, still
8x mounting bolts (M6)
