STIF VIGIBELT TOUCH Instruction Manual

INSTRUCTION MANUAL
www.stifnet.com

USE

®
- The VIGIBELT TOUCH is a lateral displacement detector that prevents the offset of elevator straps or conveyor
belts, and or incidentally the elevator pulley offset. It reacts to the pressure of the strap or strip, which comes into
contact with the front face of the detector. The detectors are normally installed face to face in pairs preferably on the
rising leg near the pulleys for the lifts, and on the stretched strand side near the drums for the conveyors.
The detectors can be directly connected to a programmable logic controller, or for total safety to an independent
central unit "monitoring M-JET". The electrical circuit can thus control an alarm or a machine stop.
For elevators taller than 20 meters, we advise to equip the head with a second kit VIGIBELT
sheath side.
The sensors are triggered when the strap exerts a load of about 5 daN.

description

®
- The VIGIBELT TOUCH kit is composed of two detectors, four elastomeric wedges of 3mm (NBR), and the fixing
screws (M6).

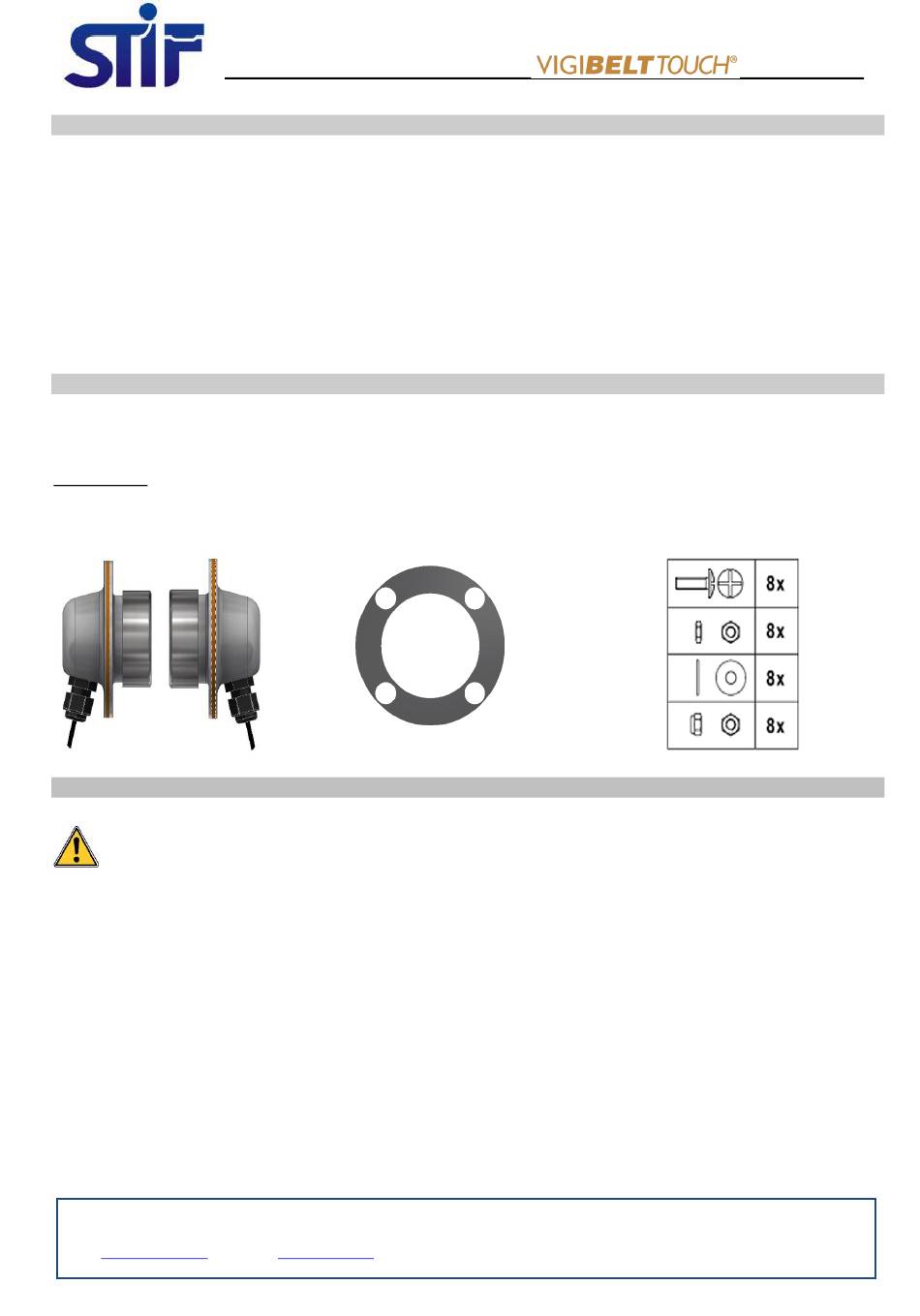

Composition:
®
2x VIGIBELT Touch
PRECAUTIONS
®
The VIGIBELT TOUCH kit must be installed, connected and put into service only by competent personnel. The
personnel need to have electrical accreditation, a knowledge of the regulation and the disposition concerning
the installation of those device, especially for Ex II3D version integrated in ATEX zones.
- Carry out beforehand an electrical connection study to install the VIGIBELT
diagram, power supply and electrical protection, plc control, ATEX zones).
- Check that the temperature range of use of the VIGIBELT
at application.
- Check during the first commissioning of the bucket elevator in the handling phase, that there is no sealing defect
(dust leak) between the sheath of the elevator and the VIGIBELT
- Shut down the bucket elevator or belt conveyor to a standstill (off) before any installation or intervention on the
®
VIGIBELT TOUCH (intervention information to be indicated on the machine).
Z.A. de la lande - 49170 Saint-Georges-sur-Loire - France
Head office, purchasing and factory:
France Export Commercial Service:
email: sales@stifnet.com - Website:
SAS with a capital of € 800,000 - R.C.S. Angers B 328 876 503 - 84B12 APE 2511Z - VAT number FR 35 328 876 503
- DOC NO. BE0455061-A
4x elastomeric wedges (ep.3)
tel.: +33 2 41 72 16 80 - Fax +33 2 41 72 16 85
tel.: +33 2 41 72 16 82 - Fax +33 2 41 39 32 12
www.stifnet.com
8x Fastening Bolts(M6)
®
TOUCH (standardized electrical
®
TOUCH (variable according to version) corresponding
® TOUCH.
GB
–
1/5
®
always on the rising
