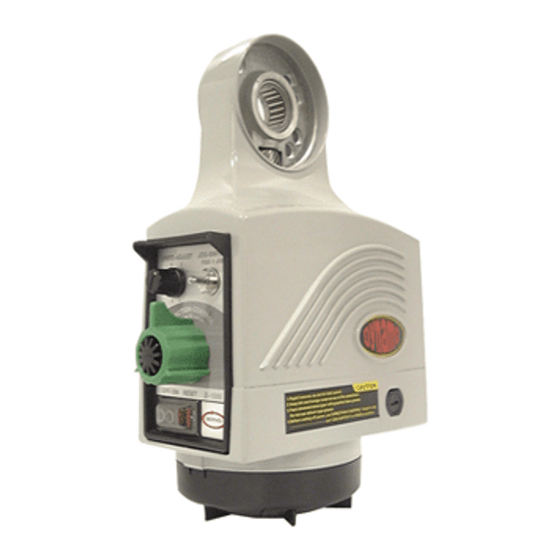

SERVO D-1000X Installation & Operation Manual
  1. Manuals
  2. Brands
  3. SERVO Manuals
  4. Industrial Equipment
  5. D-1000X
  6. Installation & operation manual

SERVO D-1000X Installation & Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INDEX
WARNINGS BEFORE INSTALLATION
INSTALLATION
OUTSIDE DIMENSIONS
ACCESSORIES & PARTS LIST
PLEASE READ THE OPERATION MANUAL BEFORE USE.
KEEP THE MANUAL AND INSTALLATION DIRECTIONS FOR REFERENCE.
INSTALLATION & OPERATION MANUAL
MODEL:D-1000X
D-1000XLD
D-1000Y
D-1000YLD
D-1000Z
OPERATION
MAINTENANCE
PARTSLIST
TROUBLE SHOOTING

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D-1000X and is the answer not in the manual?

Questions and answers

Summary of Contents for SERVO D-1000X

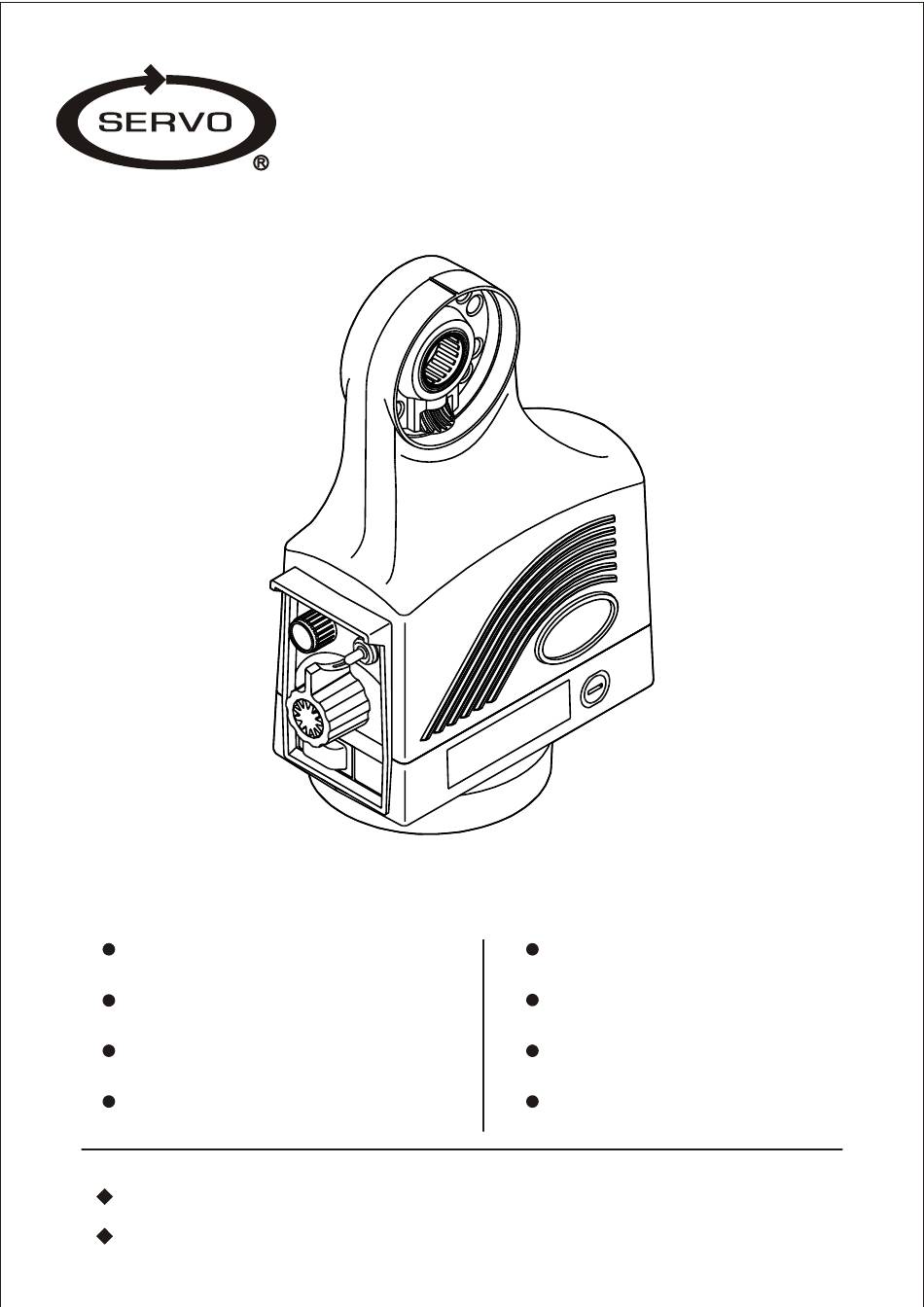

  • Page 1 INSTALLATION & OPERATION MANUAL MODEL:D-1000X D-1000XLD D-1000Y D-1000YLD D-1000Z INDEX WARNINGS BEFORE INSTALLATION OPERATION INSTALLATION MAINTENANCE OUTSIDE DIMENSIONS PARTSLIST ACCESSORIES & PARTS LIST TROUBLE SHOOTING PLEASE READ THE OPERATION MANUAL BEFORE USE. KEEP THE MANUAL AND INSTALLATION DIRECTIONS FOR REFERENCE.

  • Page 2: Warnings Before Installation

    Opening the power feed may cause injury to operator or damage to machine and will invalidate the warranty. INSTALLATION D-1000X & D-1000XLD REPUBLIC LAGUN PREPARATION Step1:Gather together the following items that you will need to complete this installation. a) Soft hammer b) 3/4"...
  • Page 3 WORK TABLE SMALL SHIM ( 1-1/32" 5/8" ) X-AXIS ADAPTOR BEVEL GEAR LARGE SHIM ( 1-23/32" 1-5/16" ) DIAL HANDLE EXISTING SCREW-4 pcs LEAD SCREW DIAL NUT SCREW (M6P 1.02 5(mm))-2 pcs X-AXIS BEARING RACE HANDLE WASHER POWER TABLE FEED BOTTOM COVER 59331 BEVEL GEAR (LAGUN) D-1000XLD...

  • Page 4: Limit Switch Installation

    DIAL AND HANDWHEEL INSTALLATION Step 1: After getting the proper gear backlash, the dial should be adjusted to obtain .005" spacing from the face of the power feed. This is important in order to keep chips from entering the gear train. Washers are provided for this.

  • Page 5: Outside Dimensions

    OUTSIDE DIMENSIONS 4-1/16" 3-3/4" ACCESSORIES & PARTS LIST ACCESSORIES SPECIAL FOR D-1000X & D-1000XLD 07256 X-AXIS ADAPTOR 07159 BEVEL GEAR(X/Y-AXIS) 59254DIAL NUT 07164 LIMIT STOP2 pcs 59332 LIMIT STOP 2 LAGUN 59331 07237 T-NUT2 pcs BEVEL GEAR LAGUN 07251 NUT 1/2-20...
  • Page 6 INSTALLATION D-1000Y POWER FEED INSTALLATION Step 1: Move the table to the front of the knee. Step 2: Remove the nut, crank, dial assembly, and key from the lead screw. Step 3: Remove bearing retainer from bearing housing Step 4: Install bearing retainer supplied using existing screws. NOTE: IF EXISTING SCREWS ARE SHORT REDRILL AND TAP 1/4-20 AND INSTALL USING 1/4-20 X 1.00 (3) SUPPLIED.
  • Page 7 SMALL SHIM ( 1-1/32" 5/8") EXTENSION SHAFT(Y-AXIS) ROLL PIN( 5/32"9 /16") BEVEL GEAR LARGE SHIM( 1-23/32" 1-5/16") DIAL HANDLE WASHER HANDLE AXIS SHAFT FIX STAND(Y-AXIS ADAPTOR) DIAL NUT EXISTING SCREW 1/4"-20UNC1 "-3 pcs BEARING RACE(Y-AXIS) SCREW (mm) (M6P 1.02 5 )-2 pcs POWER TABLE FEED BOTTOM COVER...
  • Page 8 SADDLE 59326 (2) L/S SPACER 05125 (2) 5/16-18X1.5 59566 (1) L/S BRK'T 07160 (2) TRIP RAIL 07164 (2) L/S STOP, T-NUT & 00622 (2) 8/32X1/2 P.H. M8X1.25X30mm 1004 L/S MTG PLATE 00670 (2) 5/16-18 X 5/8 07193 INSTALLED BACK SIDE 10-24 3/4 B.H.C.S-4 pcs KNEE...
  • Page 9 INSTALLATION D-1000YLD CROSS FEED POWER FEED INSTALLATION Step 1: Move the table to the front of the knee. Step 2: Remove the nut, crank, dial assembly, and key from the lead screw. Step 3: Remove bearing retainer from bearing housing Step 4: Install bearing retainer supplied using existing screws.
  • Page 10 # 1262 SPACER (1) # 59329 ADAPTOR (1) # 59328 BEARING RACE (1) # 1169 DIAL (1) # 01318 WOODRUFF KEY (1) 5mm x 6.5mm # 2418 SHAFT EXT. (1) # 00564 ROLL PIN 1/8 x 5/8 (1) # 59327 BEVEL GEAR (1) FEED 0 JOG FEED 0 JOG SADDLE...
  • Page 11 ACCESSORIES FOR D-1000YLD 07160 TRIP RAIL-2 pcs 59329 ADAPTOR 07237 T-NUT2 pcs LAGUN 07251 NUT 1/2-20 59254 DIAL NUT 07177 HANDLE WASHER - 2pcs 07238 SOCKET SCREW 59331BEVEL GEAR LAGUN M8 P1.25 30(mm )-2pcs 05125 SOCKET SCREW 5/16"-18UNC 5/8" -2pcs 07164 LIMIT STOP2 pcs 07176 SOCKET SCREW 2418 EXTENSION SHAFT...
  • Page 12 BEVEL GEAR INSTALLATION Step 1: Install shim washers approximately .080 thick. See FIG.A Step 2: Install bevel gear, nut, spacer and hand wheel. NOTE: With feed in neutral turn hand wheel. If it turns freely in one direction but catches in the other direction backlash is too large.
  • Page 13 SMALL SHIM( 1-7/32 7/8") BEVEL GEAR(Z-AXIS) 1-23/32 1-5/16" LARGE SHIM ( DIAL DIAL NUT 7/8-14 NUT THREAD AXIS SHAFT SPACER P/N 59333 1" O.D. 5/8" I.D. 1-1/16 LONG ADAPTOR(Z-AXIS) P/N 00586 ( 1/4"-201 "S.H.C.S )-3 pcs SCREW ROLL PIN (mm) )-2 pcs (M6P 1.02 5 ( 0.2"...
  • Page 14 STANDOFF. 1/2" O.D. 3/8" I.D. 2.2 LG.-2pcs P/N 05292 5/16-18 2-1/2 S.H.C.S.-2pcs 07160 (2) TRIP RAIL 07193 07164 (2) L/S STOP 10-24 3/4B.H.C.S-4 pcs 07237 T-NUT KNEE 07238 M8P 1.253 0mm ACCESSORIES FOR D-1000Z 07160 TRIP RAIL-2 pcs 07237 T-NUT2 pcs 07260 HEX NUT 7/8-14 07166 EXTENSION SHAFT (Z-AXIS) (Z-AXIS)
  • Page 15 OPERATION (FIG.10) AVAILABLE FOR LONGITUDINAL / CROSS / KNEE TRAVEL POWER CONNECTION 1.Power feed requires 120VAC 50/60 Hz electrical service. Please be sure input power is in compliance with this requirement. If the input power is not 120VAC 50/60Hz please use an appropriate transformer.

  • Page 16: Maintenance

    DIRECTION CONTROL AND RAPID BUTTON 1.Position direction-control to direction you want the power feed to move. 2.The rapid button is in the center of direction-control. SPEED ADJUST KNOB 1.The speed can be adjusted according to operator's requirement. The speed range is 0 to 9. JOG SWITCH 1.For jog movement, move jog switch to 0 position 2.Set speed-adjust to 0...
  • Page 17 ASS'Y BOTTOM GEAR 07245 CLUTCH' MOTOR SHAFT DRIVE SHAFT SPIRAL GEAR 07247 THRUST BEARING 07264 BUSHING B.G. (3) BOTTOM GEAR 07265 SCREW B.G. (3) 07248 GEAR ASSY' SPACER BOTTOM GEAR ADAPTER ASS'Y 07246 ASS'Y BOTTOM GEAR ADAPTER 07249 07262 NEEDLE PIN WASHER BOTTOM GEAR ( .12 .56") 07250...
  • Page 18 PARTS LIST PART NAME PART NO. TOP HOUSING NEEDLE BEARING BEVEL GEAR SET (18T) THRUST BEARING T ALLOY BRASS MOTOR BRACKET ARMATURE SET STATOR SET CIRCUIT BOARD SET SWITCH BRACKET SET SPEED ADJUST KNOB JOG SWITCH SET MICRO SWITCH BOTTOM HOUSING CARBON BRUSH HOLDER CARBON BRUSH CARBON BRUSH COVER...
  • Page 19 (FIG. 11)? engaged. Power feed slipping 2.Open bottom cover and check Replace spiral gear. (FIG. 11)? SERVO PRODUCTS CO if spiral gear is worn out. 3.Carbon brush wore out. Open the carbon brush caps and HEADQUARTERS (Less than 0.2".)
