Summary of Contents for Air Star Comfort 20

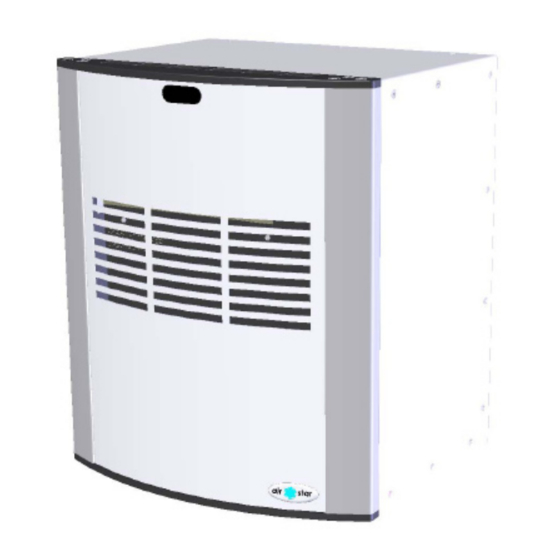

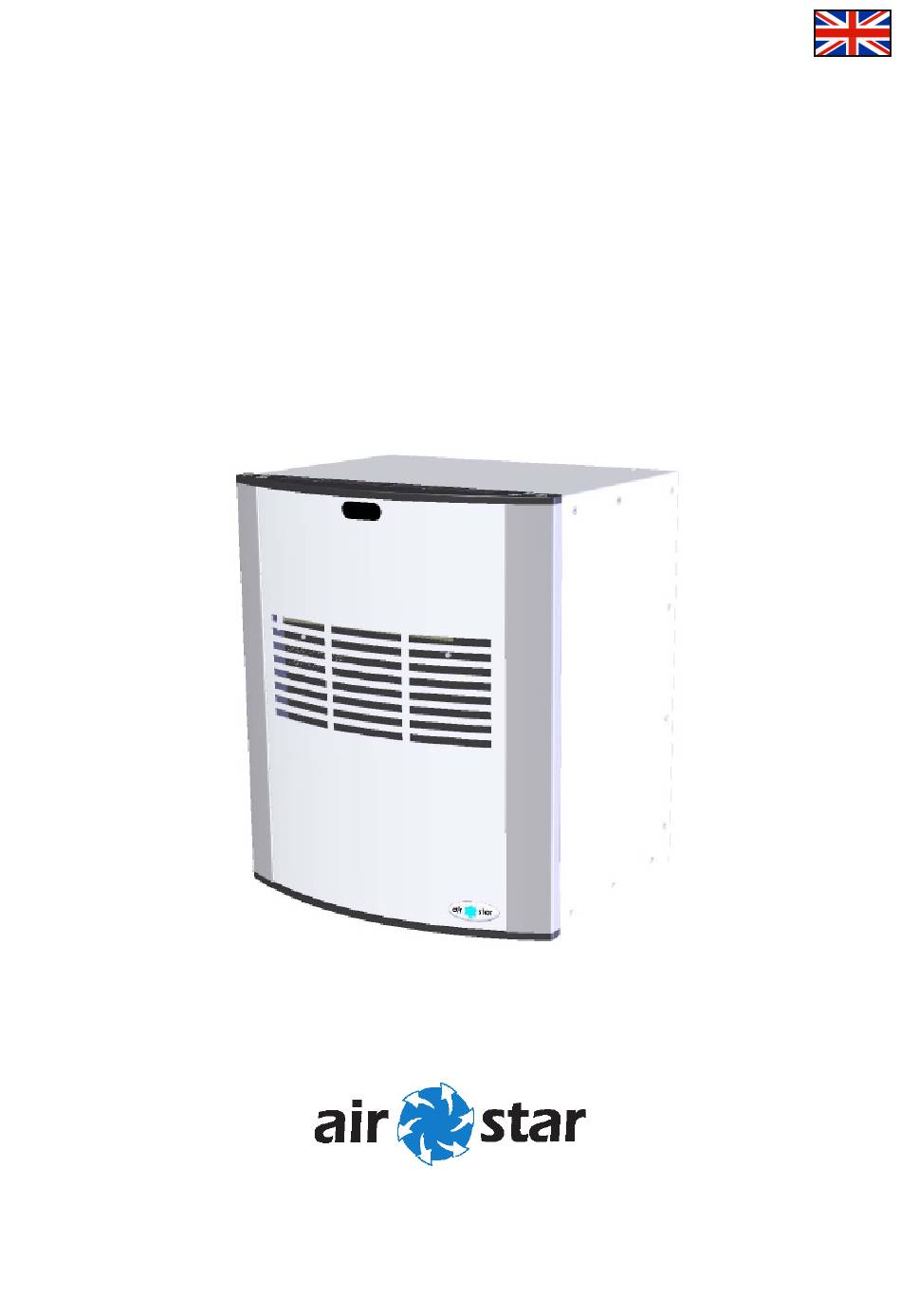

- Page 1 Air Star Comfort 20 / 30 User Manual...
-
Page 2: Table Of Contents
Table of Contents Package Contents Technical data Comfort 20 Comfort 30 User Guide Precautions Comfort 20/30 Open and Close the Unit Manual Settings Adjust the Ventilation Capacity Adjust the temperature LEDS Installation Placement of the ventilation unit Worksequence for Installation Against the Wall... -
Page 3: Package Contents
Package Contents 1 piece of Air Star Comfort 20 / 30 1 piece of door opener with 1,5 m electric cable. 1 piece of Spiro tube 2 st Air supply filters 2 st Exhaust air filters Technical data Comfort 20... -
Page 4: User Guide
・換気ユニットのドアを開ける場合は、電源をオフにした後、15分間待ってから開けてください。 • It is possible that the element and the Heat charger is still warm after ・ご使用後、熱交換素子がまだ温かい場合でもフィルター交換は可能です。 usage. Comfort 20/30 1. Hole for door opening 2. Communication window 3. Exhaust air 4. Supply air 換気ユニットの開閉 Open and Close the Unit ... -
Page 5: Manual Settings
Adjust the ventilation capacity by using control nr. 3, on page 8. The graduation above 量を調整できます。コントロールの上の目盛りは、卒業の最小16m3/h、最大32m3/hの換気量を the control is suited for the room in which the Comfort 20/30 is installed. The minimum 供給できます。 value of the graduation can supply air up to 16 m /h. -
Page 6: Installation
Installation 施工方法 The Air Star Comfort 20/30 can be installed in two different ways, into- or against the wall. The result of the air change is the same, regardless of which way it is installed. エアースターは、壁の中か、壁に接してかの2つの異なった方法で施工できます。換気量はど Installation against the wall is the easiest way. Into the wall is preferable in の方法で施工しても同じになります。 ... -
Page 7: Worksequence For Installation Against The Wall
Installation ご注意 Precautions 危険ですので、壁コンセントから、たこ足配線で本体に電源を供給しないでください。 • The aggregate must not be located immediately bellow a socket outlet ヒーターのオーバーヒートを避けるため、ユニット本体、またはヒーターを何かで覆わないでく • In order to avoid overheating, do not cover the heater ださい。 • Do not place the ventilator behind furnitures or in any other place 部屋全体に換気がいきわたるよう、換気ユニットの吹き出し付近に妨げになるような物を置かな... -
Page 8: Maintenance
After cleaning inside the Outer Case, put the Ventilator back in place. Connect the door cable to the Ventilator and also connect the electric cable. Comfort 20/30 ventilation system is now installed and ready to use. Go to Manual Settings on page 5 to set the system correctly. Maintenance 注意点 ... -
Page 9: Remove & Replace The Ventilator
Remove & Replace the Ventilator 4ページにおける記述に従って、エアースターの手前のドアを開けてください。 電源ケーブル(10)を外してくだ Open the Comfort 20/30 front door according to the description on page 4. Disconnect the door cable さい。 次に、ファンボックスをつかみ、上に持ち上げて静かに引っ張って下さい。マウントボックスとスパイ (10). Then grab the Ventilator on its upper part and gently pull. Make sure the Outer Case and the ラル管が引っ張られないよう注意して下さい。 ... -
Page 10: Drawing For Installation
Drawing for Installation NOTE: Frontview of Outer case. All dimensions in millimeters. User Manual Version 1....
