Summary of Contents for C INVERTER BP300-UL

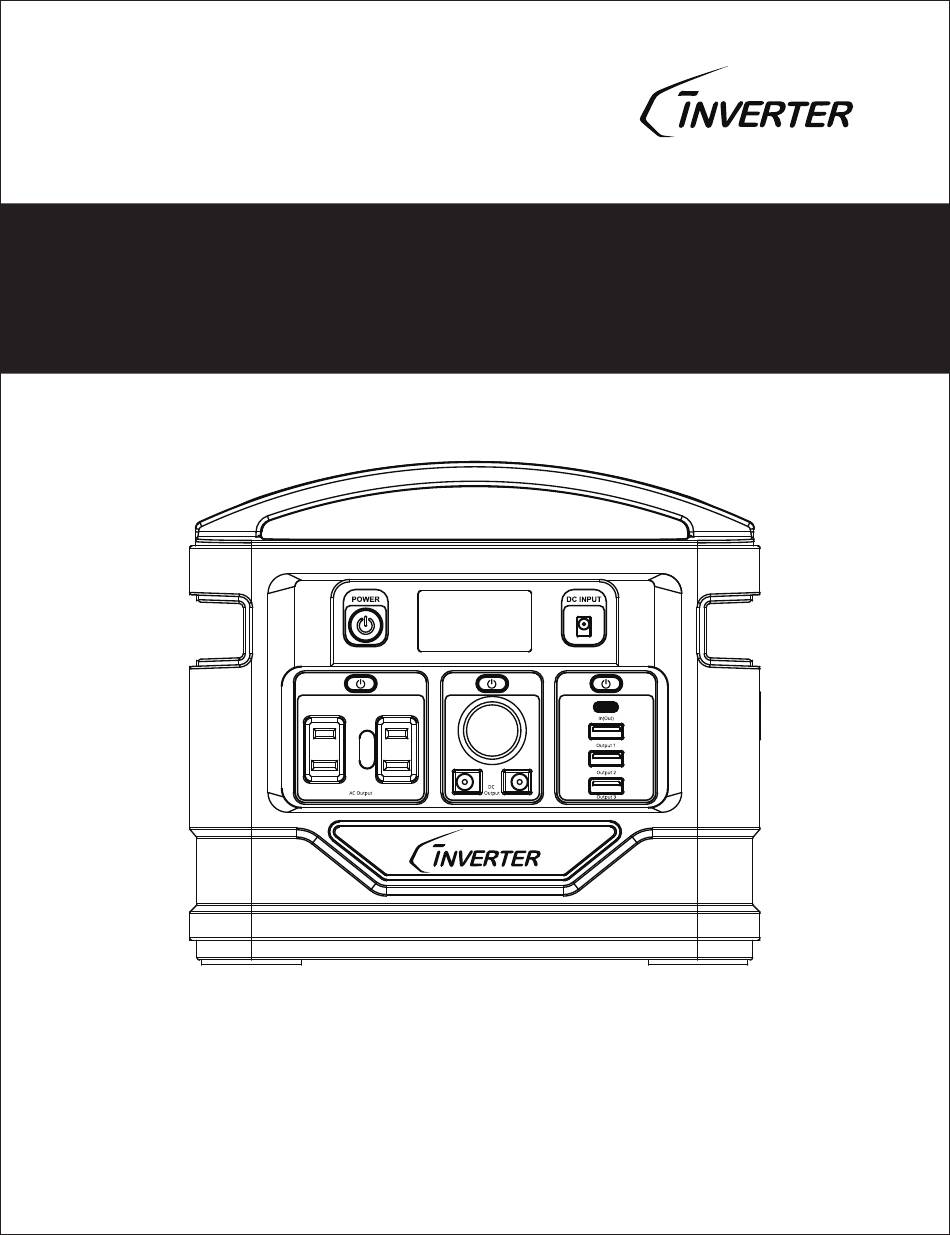

- Page 1 PORTABLE POWER STATION User Manual Model: BP300-UL...
-
Page 2: About The Product
ABOUT THE PRODUCT Thank you for using the multi-functional portable Power Station developed and produced by C INVERTER. This product has the function of a AC output and multi-interface DC output, which can meet the power supply requirements of mobile phones, projectors, juicers, small fridges, subwoofers, laptops, video cameras, CD players, various chargers, game consoles, fans, mini-drones, lights, and other equipments. -
Page 3: Specification
Do not place the machine on flammable objects such as carpets, upholstery, paper, cardboard, etc. When the machine is in operation, please stay away from items easily affected by high temperature, such as blankets, pillows, sleeping bags, etc. SPECIFICATION BP300-UL Model 296Wh Capacity Size(LWH) -
Page 4: Product Overview
DISPLAY SCREEN SYMBOL DESCRIPTION 1. Charging indicator 5. QC3.0 output 9. AC output 2. Electric quantity indicator 6. 12V DC output 10. Output indicator 3. USB output 7. Cigarette lighter output 11. Warning 8. LED light 4. Type-C output PRODUCT OVERVIEW 1. - Page 5 GUIDE TO OPERATE For any functions to work, please make sure the ‘Master Switch’ is turn on. 1) How to supply power from DC 5.5mm output and cigarette output? Connect your product to this DC 5.5mm port or cigarette port. Press ‘DC’ switch to turn on, LCD screen will show ‘...
- Page 6 3) How to use AC ports? Press the ‘AC’ switch to turn on, and connect AC devices, the icon ‘ ’ will light up on LCD screen. Press ‘AC’ switch again to turn off. Pay attention to AC power for the appliances. Make sure the total power consump tion for all appliances is less than 300W.
- Page 7 4) How to use flashlight? 1. Press ‘ ’ ‘ ’ button for 2 seconds to turn on the LED light, the icon will light up on LCD screen; 2. Press ‘ ’ button again to SOS mode; 3. Press ‘ ’...
- Page 9 B. How to charge with Type-C PD? Insert the ‘Type-C’ connection to the proper port, plug the AC adapter to wall outlet. Step2: Step1: In(Out) Plug the charging cable The other end is connected to the into the In(Out) port. AC power source for charging through the power adapter.
-
Page 10: Product Accessories
When there is a failure, corresponding icon and ‘ ’ will flash on LCD screen. Support charging with DC and Type-C input simultaneously. PRODUCT ACCESSORIES BP300-UL Portable AC Adapter User Manual power station USB Cable... -
Page 11: Troubleshooting
EXCEPTION - LCD WARNING SYMBOL Symbol flashing Alarm way Cause Solution Unplug the charger, after the Charging fault(high and battery temperature returns to Keeps flashing once low temperature protection) normal, reconnect the charger per second. for charging. Flashing once per After the battery temperature Discharge high temperature second, goes to... -
Page 12: Operation Method
Problem Solution Probable cause Battery under-voltage protection Charge the unit. Discharge overcurrent protection Make sure loads are within allowed range. AC output fault Overheating protection Turn unit off, allow to cool down and then restart. Machine damage Contact customer service. Abnormal load Remove the load. - Page 13 USAGE AND HANDLING GUIDELINES If the product is stored for more than 3 months, please recharge the product for maximum performance. Using a charger produced by non-OEM manufacturing, may cause damage to this power station. This product is not allowed to be near a heated source. Please use approved accessories from factory.
-
Page 14: Statement Of Limited Warranty
STATEMENT OF LIMITED WARRANTY Our company warrants that each device 1) is free from defects in materials and workmanship and 2) conforms to our company’s official Published Specificationsv which are available on request. The warranty period for the device starts on original date of purchased;...
