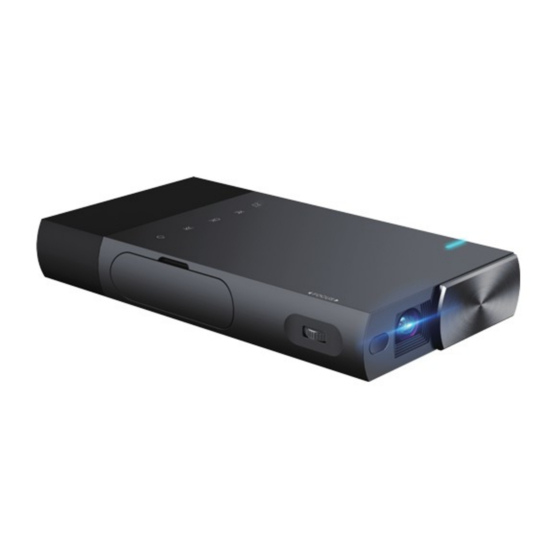

ExquizOn S1 User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
User Manual
Due to continuous improvement, actual product may different from the manual,
manual is for reference only.
1. Safety Notice:
1.1. Please read Manual carefully before you use the projector.
1.2. To ensure stable power supply, please use national standard power cable and
power cord with grounding.
1.3. Please use the same power voltage as the projector marked.
not open the projec
1.4. Please do
tor, otherwise the supplier will not afford
warranty service.
1.5. Do not look directly at the projector lens while the machine is working to avoid
damage your eyes.
1.6. To avoid clog of the projector vent, please do not cover with cloth, carpet and
other materials.
1.7. This projector does not have waterproof function, please keep it away from rain,

Advertisement

loading
Need help?

Need help?

Do you have a question about the S1 and is the answer not in the manual?

Questions and answers

Summary of Contents for ExquizOn S1

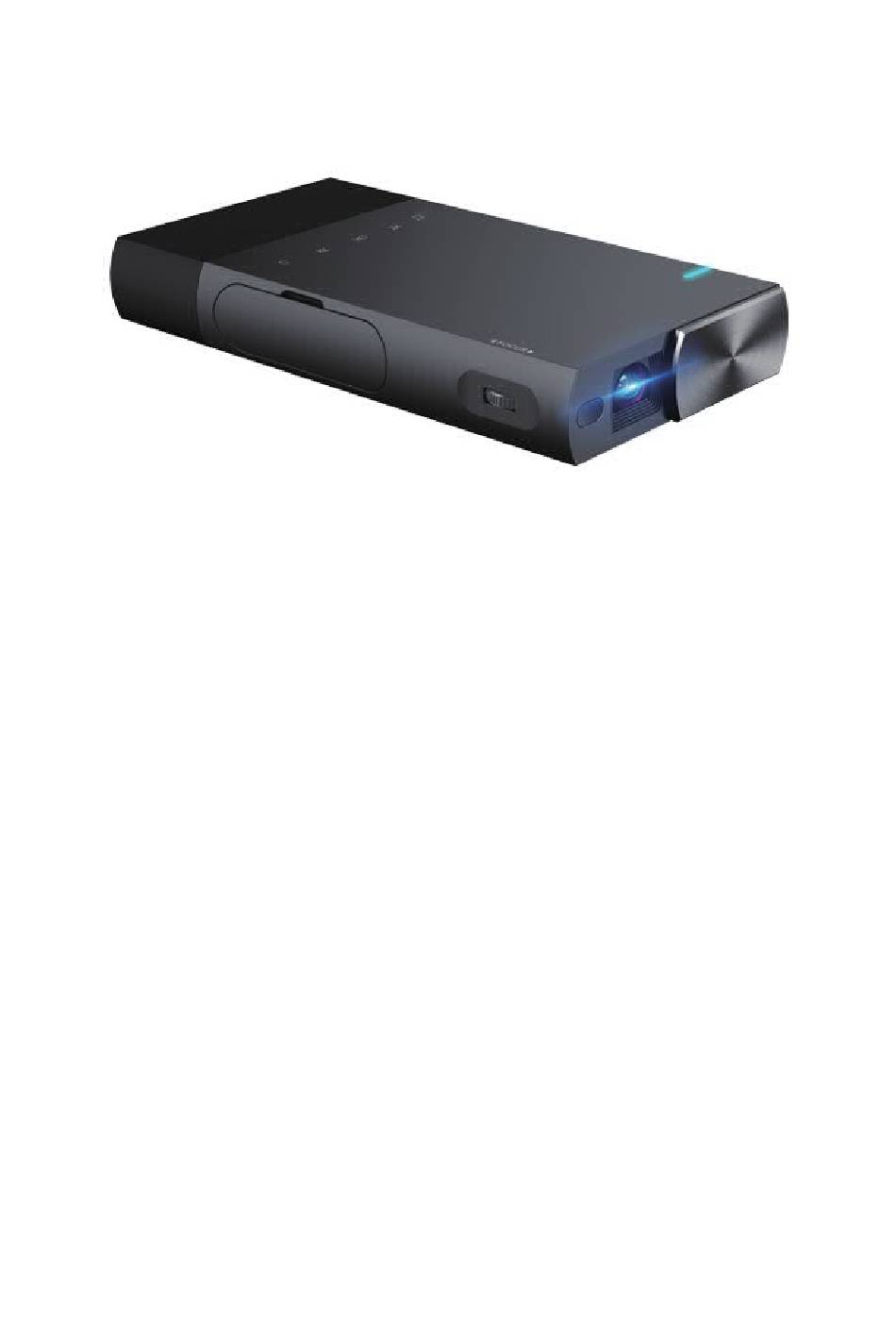

  • Page 1 User Manual Due to continuous improvement, actual product may different from the manual, manual is for reference only. 1. Safety Notice: 1.1. Please read Manual carefully before you use the projector. 1.2. To ensure stable power supply, please use national standard power cable and power cord with grounding.

  • Page 2: Interface Introduction

    moisture and other items containing liquid such as vase, cup, etc. 1.8. To prevent power breakdown, please keep the projector away from rain or water or moisture. 1.9. Turn off and cut off the power supply if do not use this project for a long time. 1.10.

  • Page 3: Remote Control Introduction

    1. Signal Source 2. Left 3. OK 4. Right 5. Return 6. Light on 7. Manual focus 8. HDMI input slot 9. TF input slot 10. Earphone slot 11. USB input slot 12. Power input 13. Lens 14. IR receiver 3.Remote Control Introduction...
  • Page 4 Play/Pause Return Power Mute Notice: To avoid power Left shortage, Right Down please don’t Signal Source mixed use the Vol- Vol+ old and new Menu/shortcut battery. If do not use remote control for a long time, please take the batteries out, to avoid batteries leakage...
  • Page 5 window. 4.Operating instructions 4.1 Preparation before turning on 4.1.1 As following picture, connect the AC power cord to port . 4.1.2 As following picture, the projector body will have an indicate light on after connecting the AC power cord, and the machine enters standby mode. 4.2 Power on/Power Rotate the baffle of lens, or press’...
  • Page 6 Projector Remote control 4.3 Boot screen As the projector start working, after screen display 2 to 5 seconds of boot screen, then come into the multimedia screen. 4.3.1 Multi- screen Press’ ‘on remote control and select ‘Multi-screen’ (See below picture)
  • Page 7 4.3.2 device connection Smartphone connected with projector① Please follow as below Installation step for Mirascreen Wire Wire+: Step 1: Please connect IOS devices and projector by IOS USB cable as picture ① *NOTE: Support iOS 9+devices. Step 2: Please press‘’ on remote control switch to Multi-screen mode as picture ②.
  • Page 8 4.3.3 For iOS (iPhone/iPad) devices Airplay Mirroring If the connection is right, iOS device popups a ‘Trust This Computer’ message please select ‘Trust’. Please wait for a few seconds, your iOS device screen will mirror to the screen, as picture③. *NOTE: Some iOS devices may popup ‘This accessory may not be supported’.
  • Page 9 Step2: Please turn on the ‘Personal Hotspot’on iPhone for connection, as picture⑤. Step Please connect your phone projector（refer to picture① （, you will see a message (refer to picture⑥). If it connects successfully, you will see the picture ‘ ‘ shown on your screen. If it shows an icon ‘...
  • Page 10 Step 4: Turn on EZCast app, then click the ‘firmware Upgrade’button on the menu page (refer to picture⑦) and wait for the update(refer to picture⑧). *NOTE: Please DO NOT power off or unplug your Mirascreen Wire+ power cable during upgrade and make sure your cellular data (3G/4G) is available.
  • Page 11 Step 5: After the upgrade, click the ‘OK’ key on remote control switch to ‘Plug and Play’ mode, try the mirror function after the upgrade. *NOTE: If the MiraScreen Wire+ is abnormal due to mobile phones or tab software upgrade, please try as above step (1 to 5) 4.3.5 For Android functional operation (only for MiraScreen Wire+).
  • Page 12 *NOTE: If MiraScreen Wire+ is abnormal due to mobile phones or tab software upgrade, please use EZCast app/Upgrade to do firmware upgrade online. Step 2: Android Mirror function: method 2 (turn on USB debug mode): USB Mirror mode is an alternative for supporting more Android devices (4.4 and above).
  • Page 13 *NOTE: Supports Android 4.4 and above *NOTE: USB debugging should be turned on for activating USB Mirror. *NOTE: Not all Android 4.4 devices support USB Mirror. *NOTE: Not all smartphone supports USB audio, and consequently the sound may come from the smartphone instead of TV/Projector. *NOTE: Due to the EZCast app will update time to time to compatible with up- to-date devices.
  • Page 14 Technical Support: Support@mirascreen.com 4.4 Focus & keystone correction 4.4.1 Image focus Put the projector vertical to the projector screen or white wall, adjust the focus ‘⑦’ （ until the image is clearly enough, then the focus is finished. During focusing, you could display video the menu to check the focus adjust. Projector connection introduce 5.1 Connection introduce...
  • Page 15 *Could connect multi-device and applications. 5.2 Multi-media connection 5.2.1 Insert the USB/TF card into the accordingly slot. (refer to picture below) 5.2.2 Choose multi- media signal source (factory setting...

  • Page 16: Supported Format

    USB/SD card outlet). Multimedia Supported format Audio file MP3/WMA/OGG/AAC/FLAC/APE/WAV Audio file JPEG/BMP/PNG Video file 3GP (H.263, MPEG 4)/AVI (XVID, DIVX, H.264)/MKV (XVID, H.264, DIVX) /FLV(FLV) /MOV (H.234)/MP4(MPEG4, AVC)/ Multi-media MPG(MPEG1)/VOB (MPEG2)/MPG (MPG- PS) /RMVB(RV40)/RM Text file 5.2.3 Choose the content which you need display: Video, Music, Photo Text. 5.2.4 Choose the file which...
  • Page 17 Support files: 576P, 480P, 720P, 1080P, 640*480, 800*600, 1024*768, 1280*1024, 1280*720, 1440*900, 1920*1080, 1366*768, 1280*800, 1440*960, 1600*1200, 1680*1050 5.4.2 Our projector support HDMI slot and MHL cable and, connect your mobile and tablet to projector. *Please consult your mobile’s factory or agency for this function. *This function may be affected by device and cable.
  • Page 18 Notice: Due to Dolby copyright, this projector not support Dolby related decode. 6 Menu guides...
  • Page 19 6.1 Menu set 6.1.1 Image menu Remote control use guide: press ‘‘ key, then the main menu come out, press ‘‘ key, choose to come into the image sub-menu, press ‘‘ key, choose the key program which you want to adjust, then press ‘OK’ key into setting. In the image, you could set the following...

  • Page 20: Technology Features

    key, choose time sub-menu, press ‘‘ key, choose the items which you want to adjust, then press ‘OK’ key into setting. In the setting, set the language in menu language set, back to factory set and software upgrade. 6.1.4 Set Sub-menu Press ‘‘...
  • Page 21 Projector Size 15----100 inches Projection Ratio Projection Distance 0.5M----3M Support Airplay DLNA Miracast Compatible Storage Device USB/TF card Standard HD interface (input & output) Headphone port 3.5mm Stereo Jack Speaker 1.5W Power Input 12V 1.5A Power Output 5V 0.5A Battery 5200mAh Power Consumption Working Temperature...
