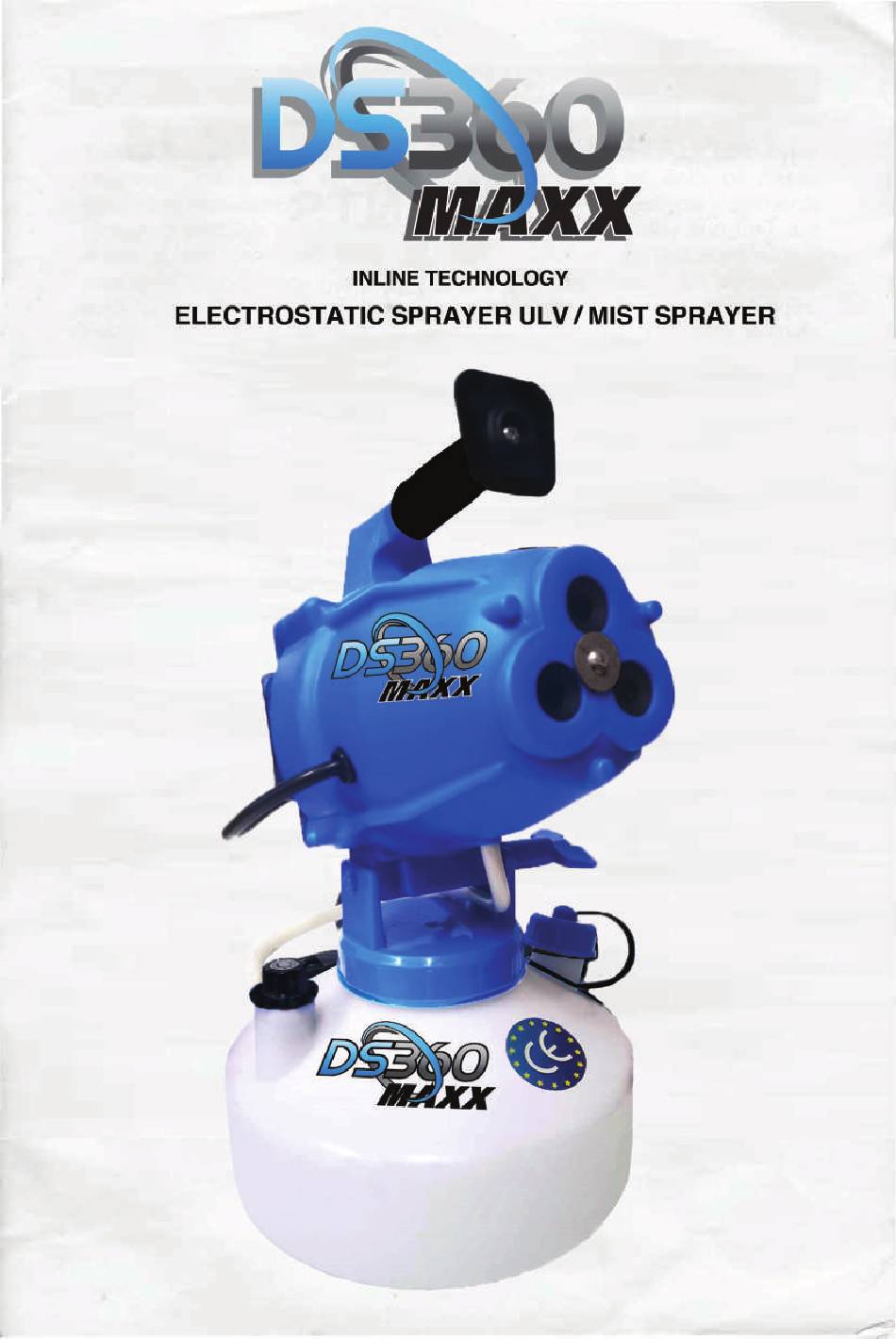

Summary of Contents for DS360 MAXX ELECTROSTATIC SPRAYER ULV/MIST SPRAYER
-
Page 3: Specifications
� SPECIFICATIONS This is an electrostatic "Cold Fog" ULV/Mister with three rugged nylon nozzles. This device is STRICTLY intended for WATER BASED chemical treatments including wettable powders and wet flowables. The body and tank are made of high-density chemical resistant polyethylene. -
Page 4: Major Components
MAJOR COMPONENTS HANDLE � GROUNDED COMPONENT LOCKING HANDLE METERING VALVE � POWER CORD � FORMULATION TANK ELECTROSTATIC SWITCH ON-OFF � FOAM GRIP TUBE VENTED CAP FORMULATION NOZZLES DIRECTION The machine allows adjusting the ° ° range, up to 40 angle in a 60 °... -
Page 5: Working Principles
WORKING PRINCIPLES The machine consists of a motor/blower assembly, a nozzle system, nozzle housing, a formulation tank and a metering valve, The various components are identified in a diagram below. The blower is a single stage/centrifugal impeller/axial flow driven by a universal motor operating at a speed of about 20,000 RPM. - Page 6 Safety Precautions (It is the Operator's responsibility to read and understand the Cautions and Warnings in this manual before attempting to operate the machine. Importan t: The DS360MAXX has been designed and engineered to be very s afe during normal operation. As with all AC powered equipment, certain safety precautions should be taken.
- Page 7 Safety Precautions (continued) This machine contains an alectrostatlc dtvice that may lnterfel'a wlh senalllve medical devices such as sland feet pacanakers, defib�Uators, or similar devices. 00 NOT opeialelhls maohlna or within 10 mallll's) If you use any such medlcal devices. Contact your phystclan p!1or operatton If l,'OU are unsure If lhts machine wll lnlerfere Wltl\ ywr medlcal de\lloe.
-
Page 8: Safety Precautions
SAFETY PRECAUTIONS WARNING READ AND UNDERSTAND THESE SAFETY PRECAUTIONS BEFORE OPERATING MACHINE. FAILURE PROPERLY FOLLOW THESE PRECAUTIONS MAY LEAD TO A FIRE, EXPOSION OR ELECTRIC SHOCK HAZARD. ELECTRIC POWER. This machine uses electrical power at common commercialty available voltages. When directly contacted, such voltages are hazardous to human life. - Page 9 Where a high flash point or "no" flash point liquid formulation will ignite far less readily than a low flash point liquid and for this reason is strongly advocated .The higher or "no" flash point formulation can ignite if the proper conditions exist. These conditions are basically two: 1.
- Page 10 DO NOT DO NOT USE ANY OIL-BASED CHEMICALS IN THIS MACHINE. Do not Use a machine that is broken or damaged in any way. Do not Alter the machine by adding or removing parts. Do not Restrict the motor blower inlet area. Do not Tamper with the output nozzle.
-
Page 12: Machine Parts Diagram
MACHINE PARTS DIAGRAM -- :- l ';(- @... - Page 13 PARTS LIST PART NUMBER ITEM DESCRIPTION ITEM 62130-10 TANK 63156 LABEL 62135-1 CAP ASSEMBLY CLEVIS 62131-1 LABEL, 220V 62151-2 20180 STRAIN CONNECTOR 62051 POWER CORD 86855 63261-2 SCREW SCREW 62378 GROUNDED WASHER 62053-54 HOUSING 62001-54 SWITCH ON-OFF ELECTROSTATIC 62006-1 NOZZLE ASSEMBLY 62045-54 62366 GASKET...
- Page 14 VALVE ASS EMBLY, •' SPARE PARTS KIT ITEM PART NUMBER ITEM DESCRIPTION 64956-2 KNOB ASSEMBLY 62134-1 VALVE INDICATOR, METERING 62195 VALVE AY., BRASS (WITH FILTER) ELECTRICAL SCHEMATICS LINE BLUE GREEN/YELLOW THE VERSION NUMBER: DS360MAXX - 01...
