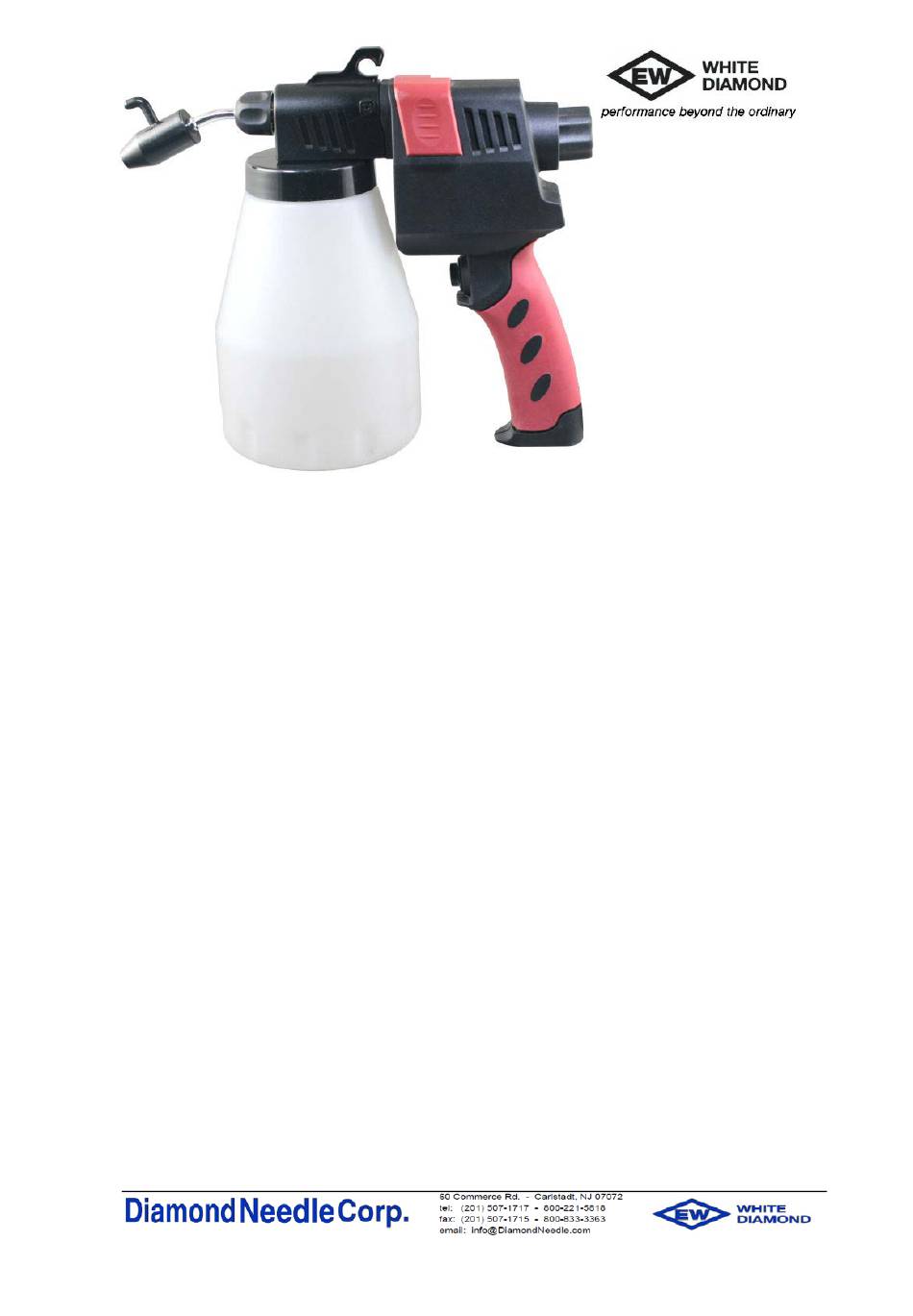

MODEL No. CG-750AJ

Introduction

·This spray cleaning gun works on the principle that air pressure is created by

the reciprocating motion of an air cylinder piston and under this pressure the

fluid is sprayed onto objects at very high speed.

·This spray cleaning gun has been expertly engineered using a streamlined

nylon housing. It is relatively lightweight, durable, and produces a strong spray.

·This spray cleaning gun is designed for industrial use with clothing, screen

printing, and embroidery. It also can be used for screen cutting, machine oiling,

flower watering, laundering and kitchen cleaning.

Rated voltage: 110V / 60Hz or 220V / 50Hz (See the label)

Power: 50W (110V / 60Hz) or 65W (220V / 50Hz)

Flow rate: 100CC/min

Container Volume: 1000CC

Diameter of spray nozzle: Adjustable range 0.25 – 0.3mm

Do not use impure fluids. TCE cleaners, pure water and other neutral solutions

are highly recommended. The use of inferior cleaners could result in damage

to both the spray gun and fabrics.

- Adjustable Nozzle: for high pressure straight spraying and for radial mist

spraying.

Table of Contents

Do you have a question about the White Diamond CG-750AJ and is the answer not in the manual?

Page 1 MODEL No. CG-750AJ Introduction ·This spray cleaning gun works on the principle that air pressure is created by the reciprocating motion of an air cylinder piston and under this pressure the fluid is sprayed onto objects at very high speed. ·This spray cleaning gun has been expertly engineered using a streamlined nylon housing.
Page 2 Operation 1. Fill the reservoir container with spray liquid. Plug into the power supply and trigger on. The spray gun starts up with a blast of vibration. Initially only a small amount of liquid sprays out. After 2-3 seconds the spray gun reaches optimal performance and noise level subsides.
Page 3 spray gun. 5. Knurled Adjusting Ring: The knurled adjusting ring is used for positioning the front part of gun body. When the push rod is in the right position for the pump cylinder, the air pressure created by its reciprocating motion will reach the most appropriate spraying force for cleaning.
Page 4 2. when power failure occurs check the power cord, trigger switch and motor. 3. When the spray dispersion is forked, it means the nozzle is blocked or clogged. Take off the nozzle and remove debris using a thin sharp, needle-like tool.
