Icom AG-2400 Instruction Manual page 2

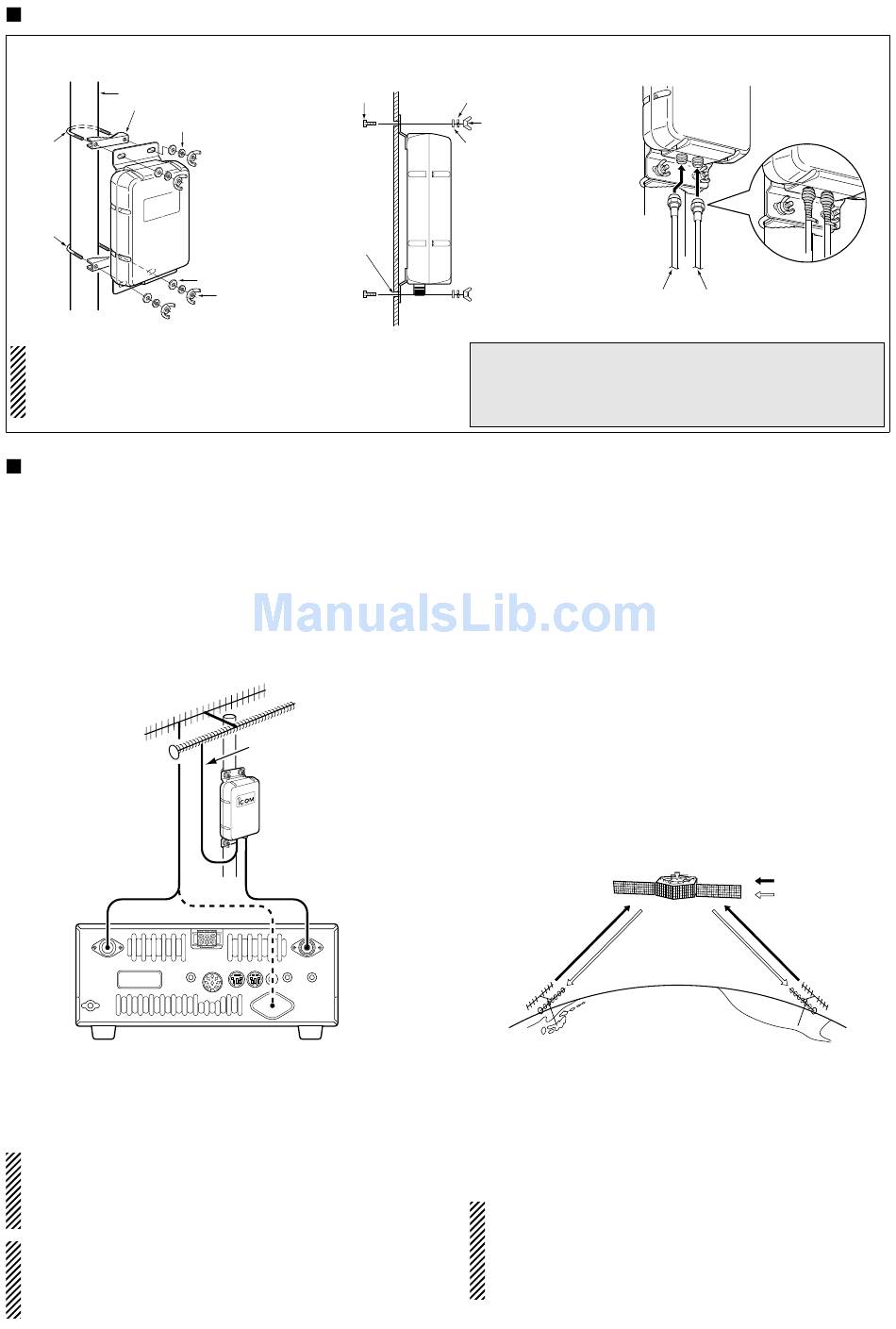

Installation
• Use the U-bolts
Pole
Pole clamp
S-washer
U-bolt
U-bolt
The AG-2400 can also be installed with self-tapping
screws.
Tighten the U-bolts, Wing nuts, etc. about 2 weeks
after initial installation.
Connections
Satellite communications via the AO-40 can be made
when using the IC-910H satellite function mode and
the AG-2400.
For satellite communications, an antenna rotator which
adjusts the antenna direction (azimuth), and an eleva-
tion angle rotator which adjusts the angle above the hori-
zon, are necessary.
See back page on how to operate.
• Connect AG-2400 and IC-910H
430MHz
band
To 430MHz
ANT connector
1200MHz band
* 1200 MHz band operation also available with AO-40.
ï Converting frequency with the AG-2400
• 2400.225–2400.475 MHz to 144.225–144.475 MHz
• 2401.210–2401.495 MHz to 145.210–145.495 MHz
NOTE: Turn the pre-amplifier controller for 144 MHz
ON during satellite operation with the AG-2400, be-
cause the external pre-amplifier control voltage is
used as the AG-2400's main power.
CAUTION! NEVER transmit on the 144 MHz band.
The AG-2400 may be damaged. The built-in protec-
tor may not function correctly when accidental trans-
mission such as continuous transmission is applied.
• Use the nuts
Hex-Head
bolt
AG-2400
6.6–7 mm
Hole
Washer
Wing nut
2400MHz band
AG-2400
144MHz band
To 144MHz
ANT connector
IC-910H
• About waterproofing
S-washer
Wing nut
Washer
AG-2400
To 2400MHz
antenna
NOTE: Cover the type-N connector with self valcan-
izing tape to avoid water seeping into the unit. Bind-
ing the type-N connector with self valcanizing tape
increases the waterproofing of the connection mold.
ï Before setting
Test to operate on the ground before installation is rec-
ommended.
q Connect AG-2400 and IC-910H. (See the figure at
left.)
w Turn the IC-910H power ON.
• Push [M/S] to set the 144 MHz as in the MAIN band.
e Push [SSB/CW] to select SSB or CW mode.
r Push [ATT•P.AMP] for 1 sec. to turn the AG-2400
power ON.
• When the AG-2400 functions correctly, the noise level
rise up.
ï Orbit information
Orbit information describes satellite location, wave an-
gles, etc. This information may be available in ham
magazines or organization issues, such as from ARRL
or RSGB handbook, etc.
Use of satellite tracking software is also convenient.
435 MHz
band
2400 MHz
band
ï AO-40
• Uplink frequency : 435.780–435.495 MHz
• Downlink frequency: 2400.225–2400.475 MHz (S1 BAND)
• Downlink frequency: 2401.210–2401.495 MHz (S2 BAND)
• Beacon frequency : 2400.338 MHz (S1 BAND)
Confirm a satellite's operating mode in advance
through documentation (magazines, etc.) or via ap-
propriate satellite tracking software. In the wrong
mode, you cannot use the satellite even if you re-
ceive its beacon signal.
AG-2400
To IC-910H
144MHz ANT connector
AO-40
Uplink
Downlink
435 MHz
band
2400 MHz
band
2401.323 MHz (S2 BAND)
