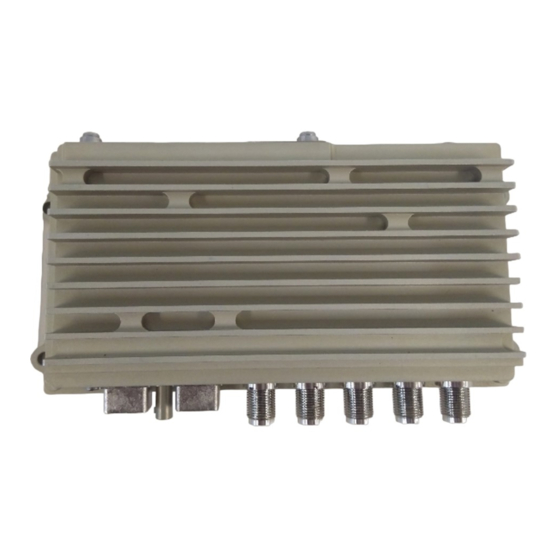

Connectivity module

AFS6360 User Manual

The operator of the connectivity module or AFS6360 must comply with the following usage constraints.

Product Constraints

WARRANTY CAUTIONS:

Professional installation of the AFS6460 is required.

Please see the Installation Control Document ICD13150K or later to properly install the unit in an

air vehicle.

The Connectivity module does contain interior components that are susceptible to damage due to

electrostatic discharge when handling directly. The operator is not to open the connectivity module

and handle the interior components.

The connectivity module has no operator adjustable settings for power or frequency channels.

All power and frequency settings are set by Astronautics and a tamper resistant VOID IF

REMOVED LABEL (PN: 280755) is placed on the connectivity module before the Certificate of

Conformity is issued. The operator is not allowed to modify radio module input power levels, add

frequency ranges, or the certification license(s) labeled on the modified connectivity module will

be void.

NOTICE:

Changes or modifications made to this equipment not expressly approved by (manufacturer

name) may void the FCC authorization to operate this equipment.

The connectivity module must be configured with Astronautics software. Please refer to the Air-

vehicle Maintenance Manual (AMM) and / or any corresponding Service Bulletins (SB) for the

certified and approved configurations of software.

The connectivity module contains the following labeling for software configuration notice to the

installer.

ACA PN: 199324-1

ACA PN: 263620-1

Table of Contents

Do you have a question about the AFS6360 and is the answer not in the manual?

Page 1 AFS6360 User Manual The operator of the connectivity module or AFS6360 must comply with the following usage constraints. Product Constraints WARRANTY CAUTIONS: Professional installation of the AFS6460 is required. Please see the Installation Control Document ICD13150K or later to properly install the unit in an air vehicle.
Page 2 RADIO EMITTER NOTICE: Exposure to Radio Frequency Radiation This connectivity module and its antennas must not be co-located or operating in conjunction with any other antenna or transmitter other than the certified and approved equipment provided by air vehicle manufacturer. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.
