READ THIS GUIDE BEFORE RIDING YOUR EBIKE
USER GUIDE
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pulse and is the answer not in the manual?

Questions and answers

Related Manuals for Hikobike Pulse

Summary of Contents for Hikobike Pulse

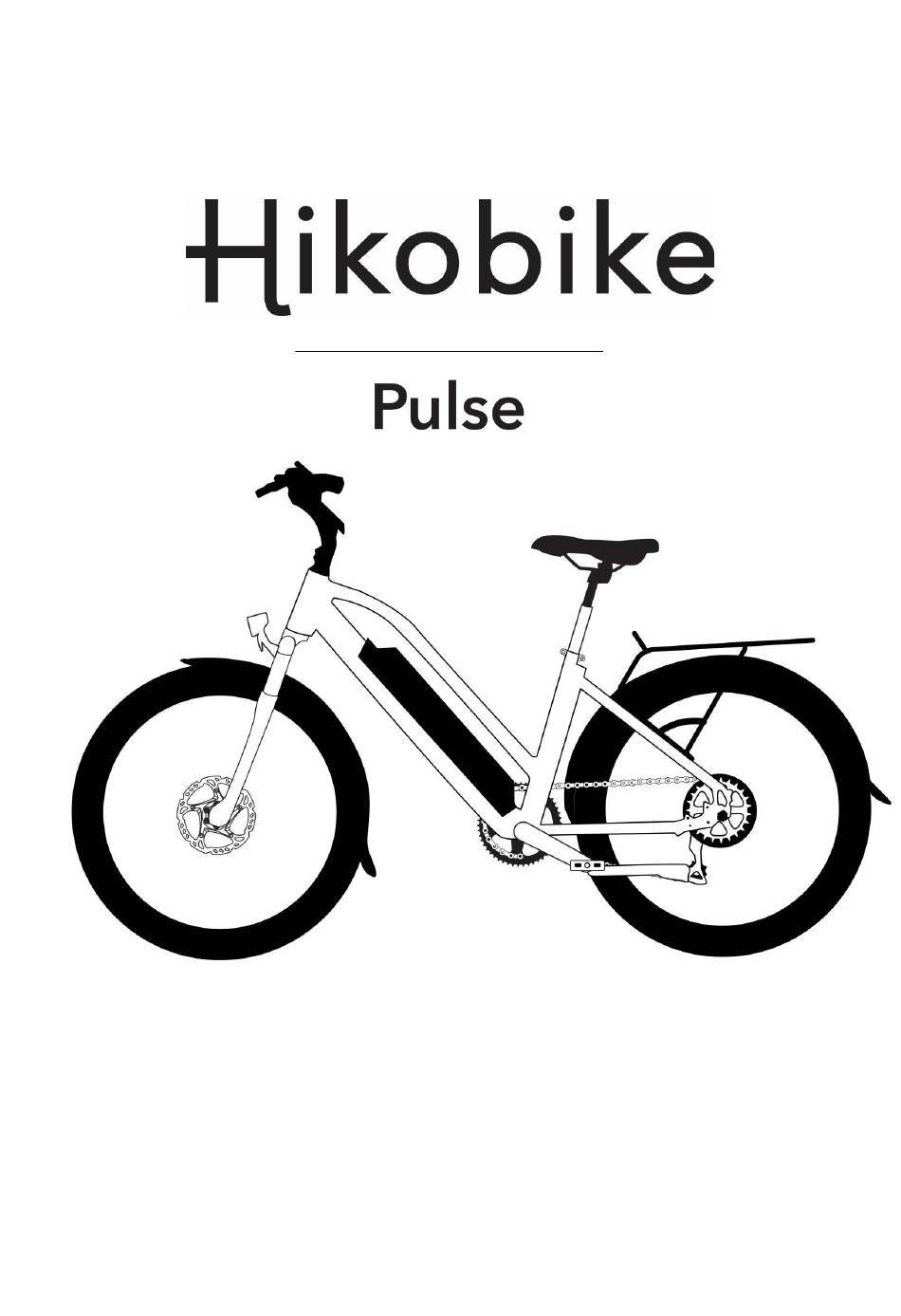

  • Page 1 READ THIS GUIDE BEFORE RIDING YOUR EBIKE USER GUIDE...

  • Page 2: Table Of Contents

    CONTENTS GENERAL PRECAUTIONS BEFORE RIDING SPECIFICATIONS BATTERY BATTERY CHARGING BATTERY STORAGE INSTALLING AND REMOVING THE BATTERY BATTERY WARNINGS LED DISPLAY C600 CONTROL PANEL QUICK START NORMAL OPERATION ON/OFF POWER ASSISTS PAS SELECTION HEAD LIGHT / REAR LIGHT AND BACKLIGHT DISPLAY INDICATOR CURRENT DISPLAY SET OPERATION (RIDING MODE,TRIP RESET,MAX SPEED, KM/H OR MPH) BATTERY CAPACITY INDICATOR...

  • Page 3: General Precautions Before Riding

    ASSEMBLY The assembly of your HIKOBIKE must be performed and safety checked by a HIKOBIKE dealer or bicycle mechanic. Assembly of the stem, handle bars, and tuning of the gears and brakes requires expert bicycle mechanic knowledge. GENERAL PRECAUTIONS BEFORE RIDING...

  • Page 4: Battery

    BATTERY HIKO bikes come standard with a 13Ah Samsung Li-Ion Battery with a built in Battery Management system (BMS). The BMS is important component as it allows the charger to charge the Samsung Cells evenly which will maximise the life expectancy and storage power of the battery. HIKO bikes can be upgraded with either a 15.4Ah Samsung BMS equipped, or 17Ah Panasonic BMS equipped batteries.

  • Page 5: Battery Storage

    BATTERY STORAGE Store your battery at dry temperatures between 15-25 deg C. Your battery likes the same temperature you do. When storing the battery for periods longer than 2 months, Fully charge the battery and remove the charger from the wall socket. The Battery has a 4 bar Charge indicator on the battery pack. Push the Button to see how many bars light up.

  • Page 6: Installing And Removing The Battery

    INSTALLING AND REMOVING THE BATTERY To remove the battery from the frame, unlock the battery using the key, at the same time using the battery lift out handle, pull the battery up and out. To install the battery, insert the battery into the bottom of the battery frame, then push down on the top the battery to locate the locking pin.

  • Page 7: Led Display C600

    LED DISPLAY C600 AND CONTROL PANEL...

  • Page 9: Quick Start

    QUICK START - RIDING THE BIKE Before riding the bike, check the battery capacity. Press the button on top of the battery. The 4 LEDs on the battery below the button show the battery charge level. Turn on the C600 display by pressing down the ON button on the handlebar keypad. Select the level of assist from 1- 5.

  • Page 10: Normal Operation

    NORMAL OPERATION ON / OFF Push ON/OFF to start the display. The display will provide power to the controller. Push ON/OFF again to operate the backlight. With the display on, press ON/OFF for 3 seconds to turn the power OFF. The panel will go to sleep when the speed is o Km/h for 5 minutes PAS LEVEL SELECTION Click UP and DOWN to change the PAS level of assistance from 1 - 5.

  • Page 11: Current Display

    6KM/H PUSH MODE This mode is handy when pushing your HIKO bike uphill. Hold the DOWN button for 2 seconds to get into 6KM/H PAS mode, and keep the button pressed. Release the button to stop 6KM/H mode. CURRENT DISPLAY This represents the amount of current used by the motor.

  • Page 12: Set Operation (Riding Mode,Trip Reset,Max Speed, Km/H Or Mph)

    SET MENU OPERATION Hold the SET button for 2 seconds and enter the setting interface. Number 0 is displayed, and the display will flash. Click the SET to cycle from 0 to 4. Press UP or DOWN to select the desired parameter, and hold the SET for 1 second to exit.

  • Page 13: Battery Capacity Indicator

    BATTERY CAPACITY INDICATOR The battery indicator has 5 segments each representing 20% battery capacity. When the battery is full the 5 segments all light up. When the battery is severely low the last segment will flash. It is recommended to charge the battery immediately.

  • Page 14: Error Codes

    ERROR CODES Error Definition Trouble Shooting code Normal Current error or Controller damage Check Controller Throttle error Check Throttle Motor No Phase position Check Motor Hall sensor error Check Motor Brake Error Check Brakes Under Voltage Check Battery Motor Stalling Check Battery / Motor Communication error from controller Check Controller Connections...

  • Page 15: Torque Settings

    5. Torque Settings Check bolts are tightened according to the following recommendations before you set off for the first time. a. Seat pillar clamp nut/bolt 5N.M-8N.M b. Brake cable anchor bolt 5N.M c. Brake centre bolt 11N.M d. Seat angle clamp bolt 24N.M e.

  • Page 16: Warranty

    Warranty work should only be carried out by authorised HIKO bike agents, and does not cover the any transport costs. The warranty does not cover normal wear on parts, or parts that have been damaged through improper used or lack of maintenance. CONTACT www.hikobike.nz Email: info@hikobike.co.nz...
