Environmental Lights rgbw-mini-RF User Manual

Mini IP68 Multi-Zone
RGBW LED Controller
rgbw-mini-RF / rgbw-mini-RF-receiver
RGBW 4-Ch Output
Wireless Sychronization
Multi-Zone Control

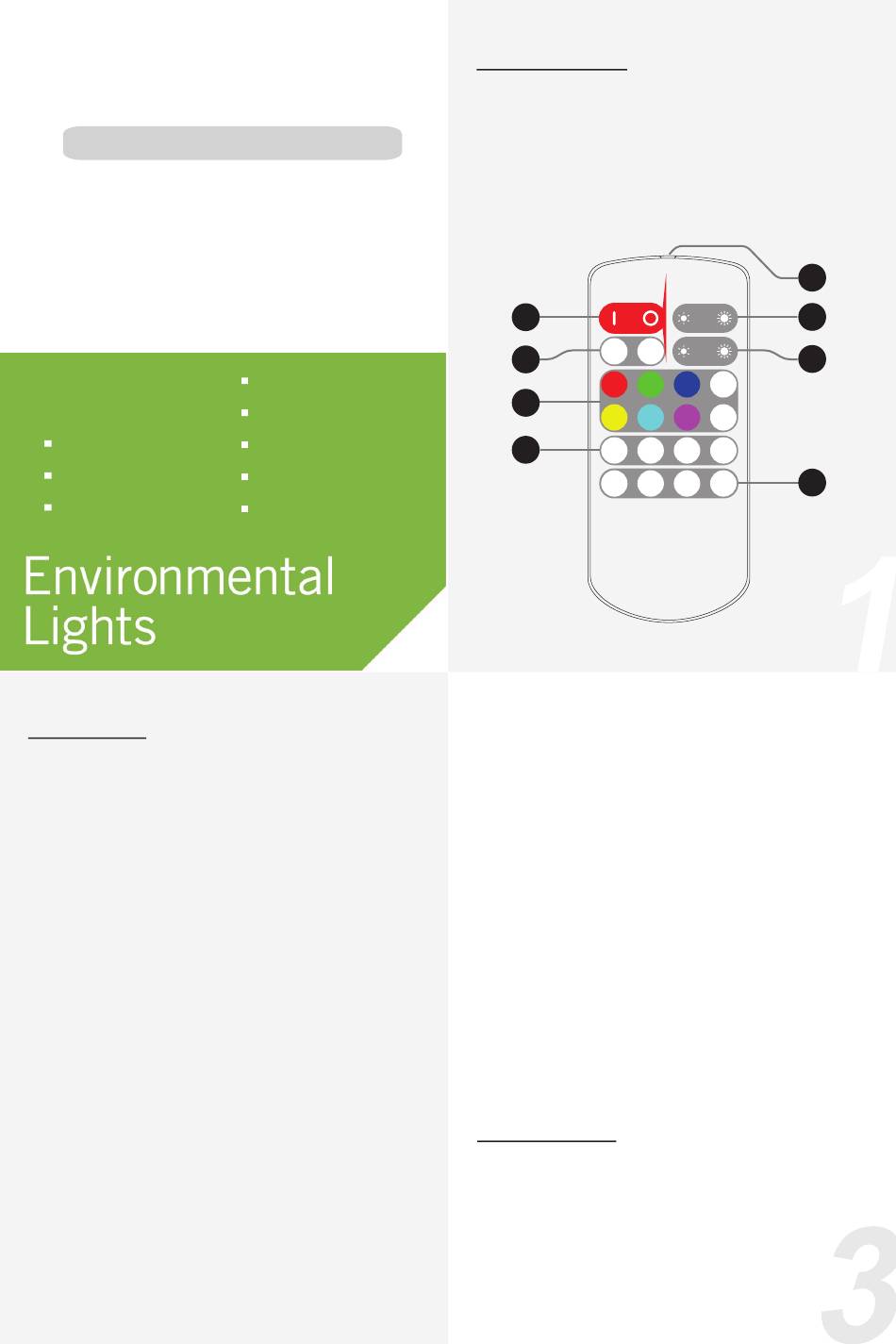

Functions

1. Turn On/ Standby
Press the 'I' key to turn the unit on press the 'O' key to turn it
off. The controller and receiver feature power-on memory
and will return to the previous setting when powered back
on.
2. White Mode
These two keys enable/disable "WHITE ONLY" mode, which
enables only the W channel and "WHITE OFF" mode, which
enables only RGB channels.
3. White Brightness
Adjusts the W channel brightness. Press the right side key to
increase and the left side key to decrease brightness.
4. Static RGB Color Selection
These keys control static RGB LED colors.
a) The six colored shortcut keys will set the RGB LEDs to red,
green, blue, yellow cyan or magenta.
b) The 'COLOR+' and 'COLOR-' scroll over all preset static
colors, including the 6 shortcut key colors.
5. Color Brightness
Adjusts RGB color brightness. Press the right side key to
increase and the left side key to decrease brightness.
User Manual
Full Circuit Protection
IP68 Waterproof
RF Remote Control
Ultra-Slim Design
Easy Setup
2

Introduction

The Mini IP68 Multi-Zone RGBW LED controller and
matching receiver are designed to drive constant voltage LED
products from 6-24VDC. The rgbw-mini-RF is the master
controller with an RF remote. The rgbw-mini-RF-receiver acts
as a slave receiver and can be used to set up wirelessly
synchronized multi-zone systems.
1
WHITE
2
ONLY
4
6
MODE
-
All
Zone
6. RGB Dynamic Modes
These keys control RGB dynamic color-changing modes.
a) Press 'MODE+' and 'MODE-' key to cycle through preset
dynamic modes.
b) Press 'SPEED+' and 'SPEED-' to control the speed of the
dynamic mode.
7. Zone Control
The zone control buttons allow the user to select the
specific zone they want to control at any time. Simply press
the corresponding zone button and adjust the desired
settings. The rgbw-mini-RF controller unit is always zone 1
and the rgbw-mini-RF-receiver units can be programmed to
any zone. At power-on, the remote default setting is "All
Zones".
8. Remote Controller Indicator
This blue indicator will blink when the remote is sending a
command. The remote operates using an RF signal, so it does
not need to be aimed at the controller or receivers.

Installation

The rgbw-mini-RF is a master controller that receives signals
from the remote and sends out wireless commands to any
paired rgbw-mini-RF-receiver units. The rgbw-mini-RF-
receiver can only be programmed through the rgbw-mini-RF
controller and must be within the wireless coverage area,
about 15 meters (50 feet) in open space.
8
3
WHITE
WHITE
COLOR
5
OFF
COLOR
+
COLOR
-
MODE SPEED SPEED
-
+ +
1 2 3 7
ZONE ZONE ZONE
