TECHNICAL INFORMATION:
Rated Power:
Voltage:
Heating Element:
Reflector:
Dimensions:
Remote control (2600R
only):
Warm-up time:
Useful wavelength range:
Weight:
Warranty:
Protection:
Waste electrical products should not be disposed of with household waste. Please recycle where
facilities exist.
The product complies with Safety Standards EN60335-2-30, RoHS and EMC EN 50336 and EN 62233.
These cover the essential requirements of EEC Directives 2006/42/EC, 2011/65/EC and 2004/108/EC.

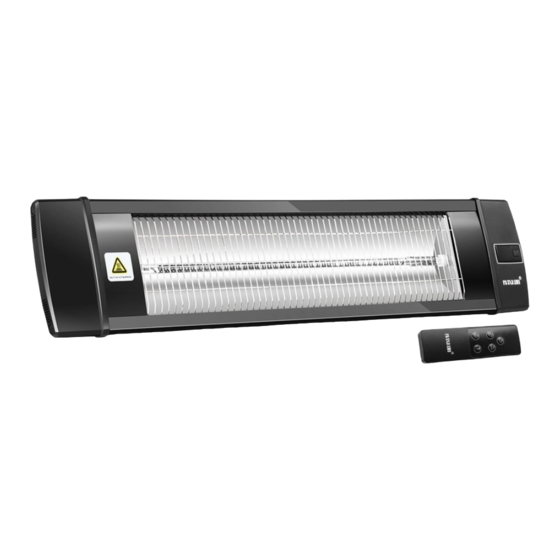

RAINBOW2000 & RAINBOW2500
Ceiling or Wall-mounted Infrared Heaters
Installation & OPERATING INSTRUCTIONS
2000W
2500W
220-240V
Ultra long life Carbon heating lamp (10,000 hours)
Mirror Aluminium (98% reflection preventing rearward heat loss)
879 x 195.3 x 84.7 mm
4 power levels (25% power increments) & 24 hour time (24x1 hour
increments)
5-10 seconds
2 - 5μm
3kg
1 Years (excludes lamp & remote control)
IP55
3000W
Advertisement
Table of Contents
Related Manuals for Maxkon RAINBOW 2000
Summary of Contents for Maxkon RAINBOW 2000
- Page 1 RAINBOW2000 & RAINBOW2500 Ceiling or Wall-mounted Infrared Heaters INSTALLATION & OPERATING INSTRUCTIONS TECHNICAL INFORMATION: Rated Power: 2000W 2500W 3000W Voltage: 220-240V Heating Element: Ultra long life Carbon heating lamp (10,000 hours) Reflector: Mirror Aluminium (98% reflection preventing rearward heat loss) Dimensions: 879 x 195.3 x 84.7 mm Remote control (2600R...
- Page 2 IMPORTANT SAFETY PRECAUTIONS READ THESE INSTRUCTIONS CAREFULLY AND RETAIN FOR FUTURE REFERENCE. Failure to observe these instructions will invalidate the warranty. This unit may be a source of possible shock. Disassemble only to replace lamp. No user-serviceable parts inside. Source of possible ignition. WARNING TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY: 1.
- Page 3 Any plug, sockets and switches intended for use outdoors must have water ingress protection ratings as good as, or better, than the protection rating of the heater (IP55). Table 1. Electrical Specification Model Rated Power Voltage Current Frequency Fuse (Minimum) RAINBOW 2000 2000W 220- 8.7A 50/60Hz 240V RAINBOW 2500 2500W 220- 10.9A...
- Page 4 MOUNTING POSITION: Diagram 1: RAINBOW heated area and applications Mediumwave Infrared heat is characterised by a strong central beam that dissipates to a gentler intensity heated area outside the central beam. The zone heated by heater will increase in size the higher the heater is installed from the floor, but the warmth experienced from the heater will be lower.
- Page 5 INSTALLATION: Diagram 2: Correct Wall / Ceiling Position...
- Page 6 The heater incorporates a tip-over function which will cut the power if the unit detects an angle greater than 45°. CAUTION: Ensure mains power is OFF before commencing installation. The supplied mains cable must not contact the top surface of the heater during operation. ...
- Page 7 Remote Control Function Butto Function (Heater On) Function (Heater LED Display on Off) Heater Turns heater on or off Increase Heat Level or Turns heater on to Timer hours Level 1 (minimum) Decrease Heat Level or Turns heater on to Timer Hours Level 4 (Maximum) Enable Heat Level...
