HUMA Hi-150 User Manual

User Manual HUMA Hi-150

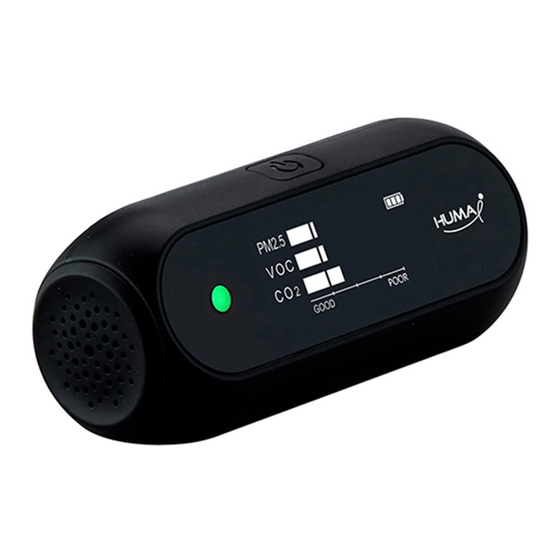

We thank you for having chosen the HUMA HI-150.
You are now in possession of a device with which you can immediately monitor the air quality EVERYWHERE, both indoors and o
to check. HUMA HI-150 measures: CO2 - VOCs - PM2 - PM1 - TEMPERATURE and HUMIDITY.
Un mode d'emploi en français peut être téléchargé sur le site www.pinewoodelectronics.com
Een nederlandstalige handleiding kan gedownload worden van www.pinewoodelectronics.com

Main Functions

1. Control knob

On / Off
You can switch on the device by pressing the control button for 1 second. If the device is not in
off, the LED(2) will blink. A short press on the button keeps the device switched on for another
10 minutes and will not change the mode.
Change function
When the device is switched on, the mode can be changed by pressing the button.
Each press changes the display mode in this order:
iAQl mode => Integrated Display mode (PM2.5 / VOC / Co²) iAQI (=indoor Air Quality Index)
=>WHO mode =>PM Mode (PM2.5 / Pm10) => VOC Mode
=> Co² Mode => Temperature / Humidity Mode

2. LED Status

The Status button gives
an indication of the
current air quality
Unit measurement
PM2.5
µg/m³
Pm10
VOC
ppm
Co²
2
3
Good
0 - 15
0-30
0.221 - 0.660
0.000-0.220
Good
(701 - 1000)
(400 - 700)
1
4 4
Poor / Bad
Moderate
26 - 35
16 - 25
31-51 51-70
0.661 - 2.200 2.201 - 10.000
Moderate Poor/Bad
(1001 - 2000)
Unhealthy
36 -<
71-<
Unhealthy
(2001 - 10000)
