Summary of Contents for AOHUA VET-6010

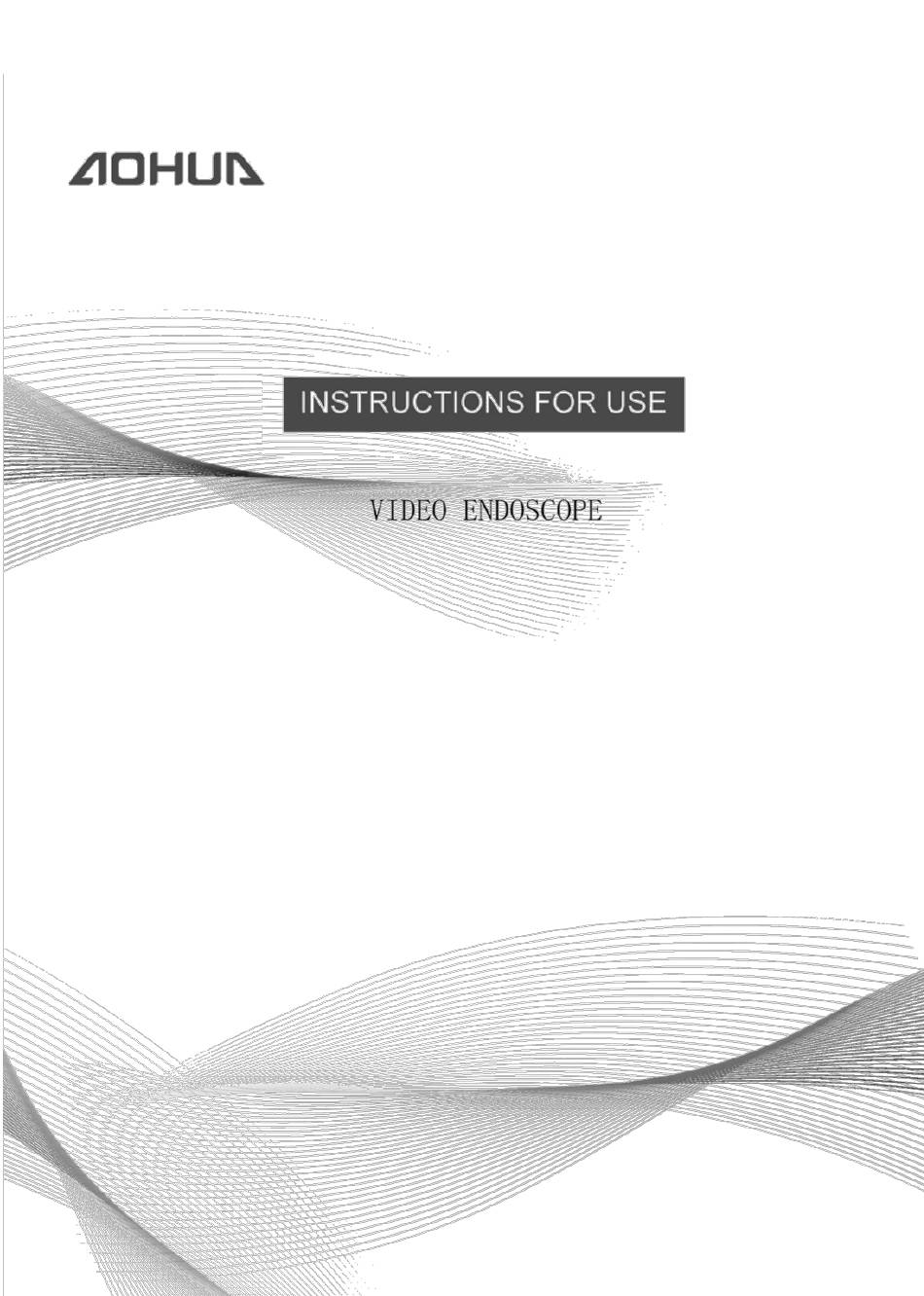

- Page 1 VET-6010 VET-3512 VET-8028HD VET-9833HD VET-9830、VET-9830HD VET-1335、VET-1335HD VET-8015、VET-8015HD VET-9215、VET-9215HD...
- Page 2 Before use, thoroughly review this manual. Please keep all instruction manuals in a safe, accessible place. Contact Aohua for any questions or comments about this instruction manual. Shanghai AOHUA Photoelectricity Endoscope Co., LTD. Address: No. 66, Lane 133, Guangzhong Road, Minhang District, Shanghai, 201108, P.R.China...
-
Page 3: Table Of Contents
Contents Important Information — Please Read Before Use Intended use Instruction Manual User qualifications Ancillary Equipment Instrument compatibility Spare equipment Repair and modification Signal words Warnings and cautions Labels and Symbols Chapter 1 Checking the Package Contents 1.1 Checking the package contents list Chapter 2 Nomenclature and Functions Nomenclature and Functions Performance characteristics... - Page 4 Contents Chapter 4 Operation Preparation Insertion and observation Biopsy forceps application Video Endoscope Withdrawal Cleaning and disinfection of the endoscope 4.5.1 Precautions 4.5.2 Preprocessing 4.5.3 Leakage detection 4.5.4 Manual cleaning of the video endoscope 4.5.5 Rinsing 4.5.6 Disinfection of the endoscope 4.5.7 Rinsing after disinfection 4.5.8...
-
Page 5: Important Information - Please Read Before Use
Section 1.1, “Checking the package contents list” after purchase. If any item is missing or damaged, contact AOHUA or distributor immediately. Prior to the first time use of a new endoscope, completely clean and disinfect the endoscope and accessories. -
Page 6: Signal Words
Important Information — Please Read Before Use Signal words The following signal words are used throughout this manual: : It indicates a potentially hazardous situation, if not be avoided, could result in death or serious injury. : It indicates a potentially hazardous situation, if not be avoided, may result in minor or CAUTION moderate injury. - Page 7 If encountering irregularities or obstructions when inserting the endoscope or operating the angulation knob, do not use it and contact AOHUA ⚫ When use the endoscope together with the imaging processor, it is recommended to connect a voltage regulator with over 1000W capacity and automatic regulation function.
-
Page 8: Labels And Symbols
Important Information — Please Read Before Use Labels and Symbols Type BF equipment Protective earth(ground) Caution Equipotentiality This way up Refer to instruction manual Date of manufacture Manufacturer Keep dry Use-by date Keep away from sunlight Serial Number Fragile, handle with care Stacking limit by number Temperature limit For Veterinary use only... -
Page 9: Chapter 1 Checking The Package Contents
Check all items in the package against the components listed below. If any component is missing or damaged, do not use the item; contact AOHUA immediately. Accessories below in the list are only for the reference. Please refer to the packing list/ shipping list included in each shipment. - Page 10 Checking the Package Contents Leakage Tester Cleaning Brushes Cleaning Kit Channel Plug Sealing Plug Water Bottle Biopsy Valve Suction Valve User Manual Air-water Valve For Veterinary use only...
-
Page 11: Chapter 2 Nomenclature And Functions

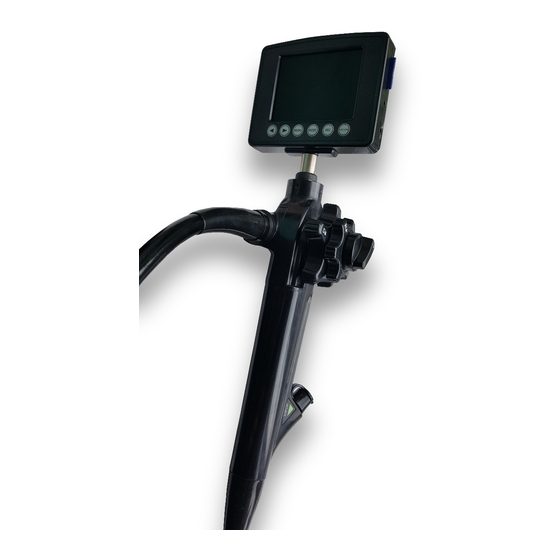

Nomenclature and Functions 2.1 Nomenclature and Functions （Figure 2.1.1 Endoscope VET -6010, VET-9833HD,VET -9830(HD), VET -1335(HD), VET -8028HD,VET -8015(HD),VET-9215(HD)) For Veterinary use only... - Page 12 Nomenclature and Functions Nomenclature Description When this knob is turned in the “R▲” direction, the bending section moves 1. RIGHT/LEFT angulation control knob RIGHT. When the knob is turned in the “▲L” direction, the bending section moves LEFT. When turn this knob in the “▲U” direction, the bending section moves UP; 2.
- Page 13 Nomenclature and Functions Nomenclature Description Connects the endoscope to the imaging processor and transmits air to the 15. Air pipe distal end of the endoscope. 16.Light guide pin Connects the endoscope to the output socket of the endoscope imaging processor and transmits light from the processor to the endoscope. 17.
- Page 14 Nomenclature and Functions （Figure 2.1.2 Endoscope VET -3512) Nomenclature Description 1. Distal end The objective lens, light guide lens, and instrument channel outlet are on this distal end of the endoscope. 2. Bending section This section moves the distal end when the UP/DOWN and RIGTH/LEFT angulation control knobs are operated.
-
Page 15: Performance Characteristics
2.3 Product characteristics This equipment is classified as type BF applied part. The ingress protection rating is IPX7. Manufacturer: Shanghai AOHUA Photoelectricity Endoscope Co., Ltd Product name: Video endoscopes; Model: VET -6010, VET-9833HD,VET -9830(HD), VET -1335(HD), VET -8028HD,VET -8015(HD),VET-9215(HD) VET-3512 Classification label: type BF applied part. -
Page 16: Interconnected Equipment Specifications
Nomenclature and Functions 2.4.2 Interconnected equipment specifications This endoscope is intended to be used with endoscope imaging processor (VET-OR series) manufactured by Aohua. The ancillary equipment shall comply with relevant regulations and standards. Interconnected endoscope model Equipment VET-8028 VET- VET-9830... -
Page 17: Chapter 3 Preparation And Inspection
The continuous bubbles indicates leakage exist. Immediately stop using this equipment, and contact AOHUA. If there is no change to the leakage tester’s pointer, the video endoscope has a sound sealing performance and is available for use, cleaning and disinfection. -
Page 18: Preparation Of The Equipment
3.2 Preparation of the equipment CAUTION The monitor must be approved by Aohua that it complies with relevant regulations and safety standards, and its resolution shall be greater than 600 lines. Connect the video output terminals of the endoscope imaging processor with the video input terminals of the monitor. -
Page 19: Inspection Of The Endoscope
CAUTION The power supply switch of imaging processor must be OFF before cutting off the power of the imaging processor and monitor. Otherwise, the damage caused by it is not warranted by Aohua in any manner. Turn on the light; the twinkling LED lamp at the endoscope connector of the endoscope indicates it works normally. -
Page 20: Inspection Of The Bending Section
Preparation and Inspection 3.3.2 Inspection of the bending section Slowly operate the angulation knob, confirm that the bending section and the angulation knob and angulation lock angulate smoothly and correctly, that maximum angulation can be achieved. CAUTION It is prohibited to forcibly bend the bending section as shown in Figure 3.3.2. (Figure 3.3.2) 3.3.3 Inspection of instrument channel... - Page 21 Preparation and Inspection Connect the water bottle with the water/air supply connector at the endoscope connector of the endoscope as shown in figure 3.4.1.1. (Figure 3.4.1.1) Connect the suction tube of the suction pump with the suction connector at the endoscope connector of the endoscope.
-
Page 22: Inspection Of The Biopsy Forceps
Preparation and Inspection CAUTION ⚫ Keep the suction pressure under 30kpa. Excessive suction pressure prevents the suction valve from returning to original position. ⚫ Replace the biopsy valve with a new one when the liquids leak from the biopsy valve during suction. -
Page 23: Chapter 4 Operation
Operation The operator of the endoscope must be a medical practitioner capable of safely performing endoscopy after operation technique training. This manual does not explain or discuss clinical endoscopic procedures. It only describes basic operation of the endoscope. Before using the endoscope, ensure to perform preparation inspection on the endoscope as described in Chapter 3, “Preparation and inspection”. - Page 24 CAUTION ⚫ AOHUA do not recommend the use of endoscopic instruments not approved by AOHUA. ⚫ Do not forcibly insert the instruments into the instrument channel. ⚫ The use of incompatible instruments may cause damage to the endoscope instrument channel and the instruments.
-
Page 25: Video Endoscope Withdrawal
The cleaning and disinfection method is determined by the user and hospital infection control committee, etc. The cleaning and disinfection include automatic and manual method. AOHUA only introduces recommendation on manual cleaning and disinfection methods. For the automatic method, refer to the instruction manual for relevant equipment. -
Page 26: Cleaning And Disinfection Of The Endoscope
Operation 4.5.1 Precautions CAUTION Ordinary detergent solution and method cannot satisfy disinfection requirement, disinfection method and material should be studied and selected according to the professional medical viewpoint and particular clinical condition. Disinfection methods The following disinfection methods, which will cause major fault to the video endoscope, should be PROHIBITIVE! Heating and pressing EGO disinfection at the atmospheric pressure of over 1.5 and the temperature of over 40℃. - Page 27 Operation Switch ON the suction pump and Install the biopsy valve; immerse the distal end of the endoscope into the detergent and depress the suction valve to aspirate detergent into the instrument channel for 30s; remove the distal end from the detergent and cover the suction valve to aspirate air for 10s. Switch OFF the pump and disconnect the endoscope from the endoscope imaging processor;...
-
Page 28: Leakage Detection
Operation 4.5.3 Leakage detection Conduct sealing performance inspection after preprocessing to ensure its ingress protection performance. Refer to the Section 3.1, “Sealing performance inspection” for detailed procedures. 4.5.4 Manual Cleaning of the video endoscope CAUTION ⚫ The cleaning brush should not be inserted from the reverse direction, it should be pulled back until the head completely exposing from the distal end. - Page 29 Operation To brush the suction cylinder from the control section to the distal end (route a) Straighten the bending section of the endoscope. Insert the cleaning brush with a 45º angle into the suction cylinder, slowly advance the brush until the brush head completely exposes from the distal end.
- Page 30 Operation Inject detergent into each channel Block the suction cylinder, air/water cylinder(inapplicable to VET-3512), instrument channel with the channel plug; block the air/water supply connector with the sealing plug; connect the injection tube to the endoscope connector; ensure that the distal end of the endoscope is thoroughly immersed in the detergent.
-
Page 31: Rinsing
Operation Cover the manual cleaning tank with a sealing cover to reduce detergent volatilization. Immerse the entire endoscope, air/water valve (inapplicable to VET-3512), suction valve, biopsy valve and all ancillary components in accordance with the immersion time, temperature, and detergent concentration recommended by the manufacturer. 4.5.5 Rinsing Transfer the cleaned endoscope, air/water valve (inapplicable to VET-3512), suction valve and biopsy... -
Page 32: Rinsing After Disinfection
Operation Transfer the dried endoscope, air/water valve(inapplicable to VET-3512), suction valve and the biopsy valve to the disinfection tank, and immerse them in the disinfectant. Block the suction cylinder, air/water cylinder(inapplicable to VET-3512), instrument channel inlet with the channel plug; block the air/water supply connector with sealing plug; connect the injection tube to the endoscope connector as shown in figure 4.7.3.2;... -
Page 33: Drying
Operation Turn off the suction pump and disconnect suction pump and all ancillary components from the endoscope. Dry the surface of the endoscope, the air/water valve(inapplicable to VET-3512), the suction valve and the biopsy valve with a sterile lint-free cloth. 4.5.8 Drying NOTE... -
Page 34: Maintenance, Shipping And Storage Of The Endoscope
The carrying case is not for storage; do not use it to store the endoscope in case of contamination. All non-natural damaged, for instance, damage of insertion tube resulted from biting, and malfunctions caused by operators or purchasing unit’s unauthorized disassembly, are not warranted by AOHUA in any manner. -
Page 35: Chapter 5 Troubleshooting
Check if the voltage is stable and the lens surface is attached Unclear image or signal interference with dirt. Water drop or stripe observed Contact AOHUA. No or insufficient illumination Check the built-in light source and the endoscope connector. Insufficient angulation or angulation Check if the light fiber is broken. -
Page 36: Returning Thr Endoscope For Repair
5.2 Returning the endoscope for repair CAUTION ⚫ AOHUA is not responsible for any injuries to the human or damages to the endoscope resulted from repair activities attempted by non-AOHUA personnel. ⚫ If any spare parts or electronic components of the VET series endoscope are damaged, only use the spare parts or electronic components approved by AOHUA. -
Page 37: Chapter 6 Other Announcements, Product Contraindications
To prevent infection and ensure the safety of all maintenance personnel, ensure to clean and strictly disinfect the video endoscope before sending the defected endoscope back to Aohua for repair. If the endoscope is used by any HA positive patient or patient with other infectious diseases, inform the personnel of AOHUA in advance. -
Page 38: Manufacture Date
Other Announcements, Product Contraindications 6.3 Manufacture Date CAUTION Daily check if the technical requirements of the endoscope are met before using; contact Aohua when nonconformity is observed. Product Manufacture Date: refer to the product nameplate. Product service life: 2 years... -
Page 39: Warranty Card Of Product
Shanghai AOHUA Photoelectricity Endoscope Co., LTD. Warranty policy: Provide the original invoice (or copy) of the product and contact Aohua maintenance center. Be sure to send the warranty card of the product within one month after purchasing this product. Warranty conditions: Within half year after purchasing, any quality failure of this product is warranted by Aohua free of charge.
