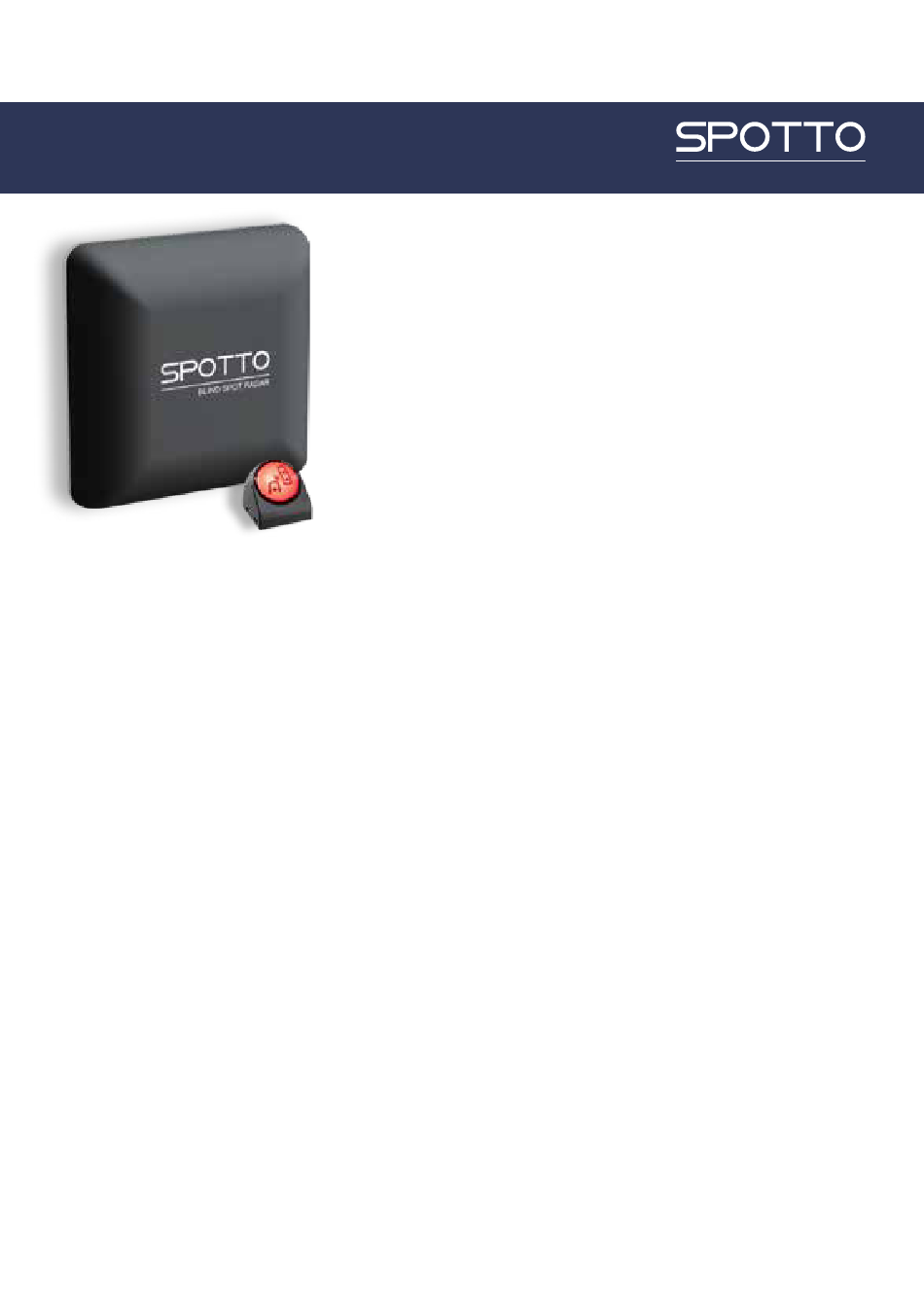

- Page 1 BLIND SPOT MONITORING SYSTEMS INSTALLATION GUIDE...
-
Page 3: Table Of Contents
Dip Switch Settings IMPORTANT READ BEFORE PROCEEDING The Spotto Blind Spot Radar should only be installed by a qualified or suitably competent and experienced automotive technician. The steps outlined herein are only a guide to assist in the installation of the Spotto system. -
Page 4: System Overview
System Overview To reduce the risk of collisions with objects in the truck’s blind spot, the Spotto Blind Spot Radar monitors the area along the left side of the truck and will warn the driver with both visual and audible alerts to objects in the detection zone. -
Page 5: Wiring Schematic
Wiring schematic Control Radar Sensor Right Turn Signal Indicator (GREY) Left Turn Signal Indicator (WHITE) 12 / 24V IGN (RED) Earth GND (BLACK) Audible Buzzer Blind Spot Indicator GPS Receiver... -
Page 6: Attaching The Radar Sensor
Attaching the Radar Sensor 1. Attach the Radar sensor to the mounting bracket using the supplied 4 x M6*16 bolts. Ensure the Radar sensor orientation is correct - logo facing upwards. 2. Aim to fit the sensor as close to the front of the truck as possible, on the top step of the passenger side. -
Page 7: Installing The Blind Spot Indicator
Installing the Blind Spot Indicator The Blind Spot Indicator should be fitted within the driver’s direct line-of-sight when checking the left side mirror. The recommended location is at the truck’s A-pillar. You have the option of installing it flush in the A-pillar trim, or surface- mounting it using the supplied housing and mounting kit. -
Page 8: Fitting The Buzzer
Fitting the Buzzer 1. The buzzer should be located in the passenger-side footwell - exposed for louder volume or hidden behind the trim for a more concealed appearance. 2. Attach it securely using the supplied double-sided tape and 2 screws. Attaching the GPS Receiver 1. -
Page 9: Wiring And Connectivity
Wiring and Connectivity Reference the wiring schematic on page 2. 1. Plug the main harness into the control box. 2. Plug the sensor extension cable into the Radar sensor. 3. Route the sensor extension cable into the cabin towards the control box. 4. -
Page 10: Technical Specifications
Technical Specifications USRR Operating Voltage (V) 9 - 36v Operating Current (mA) <300mA @ 12V Operating Temperature (°C) -40°C ~ 80°C Storage Temperature (°C) -40°C ~ 85°C Operating Frequency (GHz) 76GHz - 77GHz 77GHz - 81GHz Transmission Power (dBM) 12dBm Modulation Mode FMCW Antenna Type...
