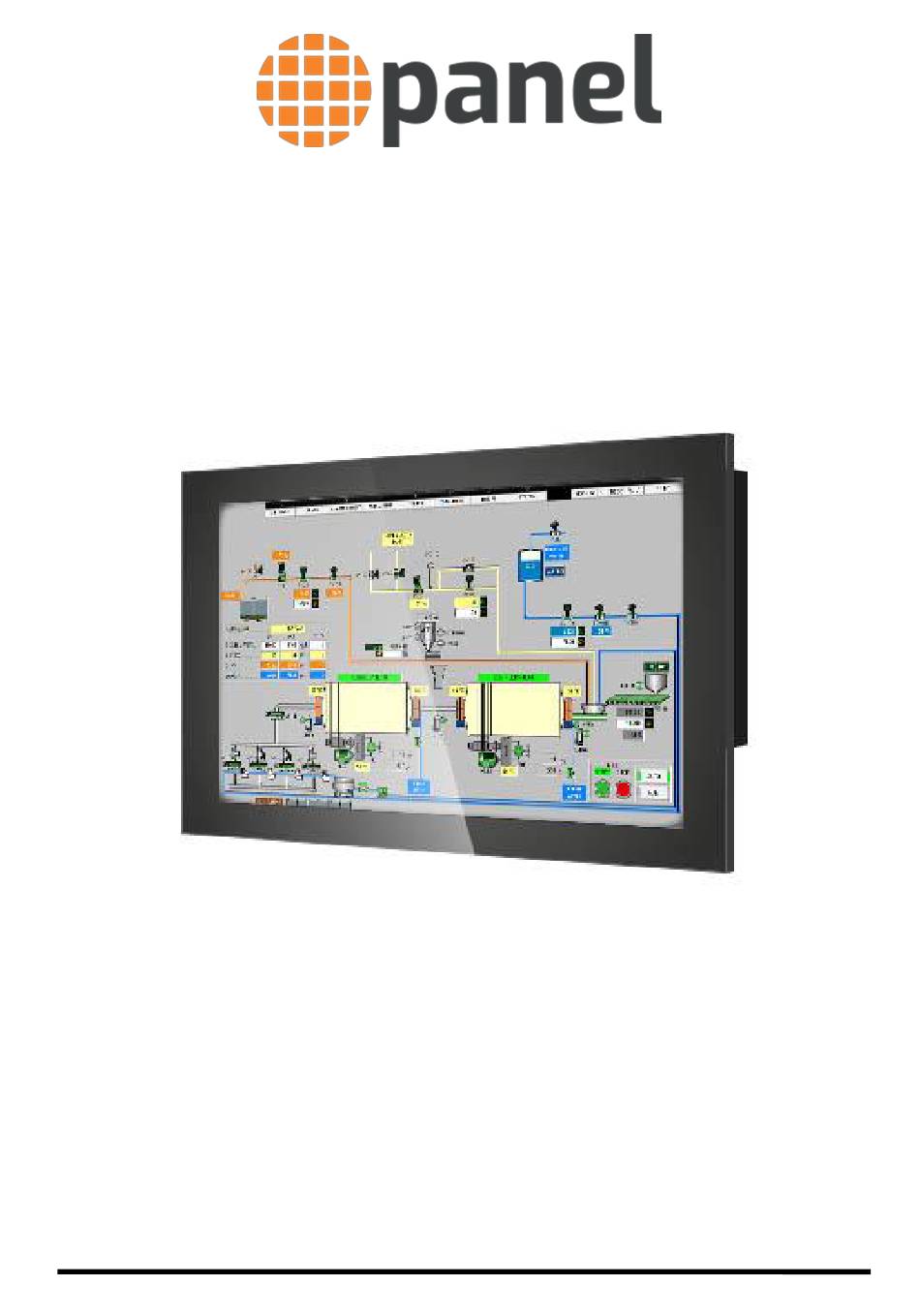

VESA Mount PC PVG-FM series
Celeron J1900
Capacitive touchscreen
User's manual
Version 1.1
All information contained in this manual, including all photographs, illustrations and software, is protected under international copyright laws, with all
rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written
consent from Panel S.r.l. The information contained herein is believed to be accurate as of the date of publication; however, Panel S.r.l, makes no
warranty, ex- pressed or implied, with regard to the products or documentation contained within this manual. Panel S.r.l. reserves the right to change
the contents of this manual without notice. Panel shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the
use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of
merchantability or fitness for any particular purpose is also disclaimed. Soft- ware names, hardware names and trademarks are registered by their
respective companies.
www.panel.it
1
1
Advertisement
Table of Contents
Summary of Contents for panel PVG-FM Series
- Page 1 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from Panel S.r.l. The information contained herein is believed to be accurate as of the date of publication; however, Panel S.r.l, makes no warranty, ex- pressed or implied, with regard to the products or documentation contained within this manual.
-
Page 2: Table Of Contents
4.3 HDD-SSD installation ..................16 4.4 Mini PCI-E and mSATA module installation ..........17 4.5 WI-FI module installation ................... 18 Chapter 5: Jumpers and connectors 5.1 Motherboard layout…………………………………………………………………………. 19 5.2 PVG I/O connectors .................... 21 5.3 Motherboard jumpers setup ................22 www.panel.it... - Page 3 Chapter 6: System setup 6.1 Installing operating system ................23 6.2 Bios setup ........................23 6.3 Touchscreen driver and calibration ............23 Chapter 7: Maintenance 7.1 Cleaning........................24 7.2 Lithium battery ......................24 7.3 Spare parts ....................... 24 www.panel.it...
-
Page 4: Safety Rules
PC. Do not disassemble or modify the Panel PC. Doing so may cause a fire or an electric shock. All tasks such as the installation, commissioning and servicing of devices are only permitted to be carried out by qualified personnel. -
Page 5: Package Content
Qty 1 Connector DC supply 1.4 Declaration of conformity CE Mark, product complies with all applicable directives and their harmonized EN standards. Doc. Int. Panel: 29102014 The products herewith complies to the requirements of: Low voltage directive 2006/95/EC EMC Directive 2004/108/EC... -
Page 6: Warranty And Rma
2 years, beginning on the date of invoice by Panel. PANEL will engage to repair or eventually replace, at its discretion, the whole device or its components, which show construction defects or malfunction if these are pointed out in writing during the warranty period. -
Page 7: Chapter 2: Technical Data
Rated input voltage 24 VDC 110 – 230 VAC Input voltage limits 9…..36 VDC 90…..264 VAC Typical Power 42 W Operating Temperature 0° ÷ 50 °C Cooling Type Fanless Conformity 2.3 Bespoke front graphics customization Optional, provided on request www.panel.it... -
Page 8: Touchscreen Specifications
Operating Temperature: -25 to 85 ℃ Storage Temperature: -25 to 85 ℃ Relative Humidity: 95% at 60 ℃, RH Non-condensing Interface: USB: 1.1 Full Speed Resolution: 4096×4096 resolution Report rate: USB: Max. 100 points/sec Response time: Max. 25 ms MTBF: 200,000 hrs www.panel.it... -
Page 9: Mechanical Dimensions
2.5 Mechanical dimensions PVG display units with retaining clips All dimensions are specified in mm Display size Model 17.0” projected capacitive touch PVG117 256,5 www.panel.it... -
Page 10: Vesa Mounting
100 corporate members worldwide, and sets industry-wide interface standards for computing environments. Panel agreed on the VESA standard, and all his LCD monitors come with the VESA 100 mounting hole pattern, which means a hole pattern on the back of the monitor: 100mm x 100mm (3.94 x 3.94 inches). -
Page 11: Chemicals And Solvents Resistance
Methylene chloride Projected capacitive touchscreen The touch panel is securely affixed onto the frontal glass. The glass is much more resistant to corrosion than most materials, so much so that it is easy to think of it as corrosion-proof. Optional graphic customization... -
Page 12: Chapter 3: Installation And Wiring
For easier maintenance, operation, and improved ventilation, be sure to install the PVG away from adjacent structures and other equipment. See the following drawings. Be sure that the ambient operation temperature and the ambient humidity are within their designated ranges. All dimensions are specified in mm www.panel.it... -
Page 13: Connecting Dc Power
All supplied power must be disconnected before removing device covers or components or installing/removing accessories, hardware or cables. The power cable must be disconnected from the device and from the voltage supply. Verify the correct rated input 110 - 230 VAC, input voltage limits 90…..264 VAC. www.panel.it... -
Page 14: Functional Ground
To avoid excess noise, make the power cord as short as possible. This section describes the precautions for grounding the PVG unit: Exclusive grounding (BEST) Exclusive grounding (OK) Common grounding (NOT OK) Important! The motherboard ground and others devices is connected with PVG ground. www.panel.it... -
Page 15: Chapter 4: Hardware Upgrade
Chapter 4: Hardware upgrade 4.1 Removing the rear cover Warning! Disconnect the power supply to the Panel PC (disconnect the power cable). Isolate the system from all potential sources of electrical power!. Discharge any electrostatic charge on the ground connection... -
Page 16: Hdd-Ssd Installation
Firmly insert the SO-DIMM into the slot until the retaining clips at both ends fully snap back in place and the SO-DIMM is properly seated. 4.3 HDD-SSD installation SATA SSD installation area Unscrew the four screws marked above then unplug the two SATA cables. On the rear of the drive bay there are further four screws that lock the SSD unit. www.panel.it... -
Page 17: Mini Pci-E And Msata Module Installation
3) Remove the bracket facing the slot that you intend to use. Keep the screws for later use. 4) Align the card connector with the slot and press firmly until the card is completely seated on the slot. 5) Fasten the card to the chassis with screws. 6) Replace the system cover www.panel.it... -
Page 18: Wi-Fi Module Installation
4) Align the card connector with the slot and press firmly until the card is completely seated on the slot. 5) Fasten the card to the chassis with screws. 6) Connect the antenna cable to the main connector of the device: 7) Replace the system cover www.panel.it... -
Page 19: Chapter 5: Jumpers And Connectors
Chapter 5: jumpers and connectors 5.1 Motherboard SBC-210 layout www.panel.it... - Page 20 List of all motherboard connectors and headers: 1 : Panel Power Selection (PNL_PWR1) 2 : ATX Power Connector 3 : Backlight Power Selection (BKT_PWR1) 4 : USB2.0 Headers (USB0_1, USB2_3, USB4_5) 5 : m-SATA Selection 6 : Inverter Power Control Wafer (BLT_PWR1) 7 : SATA2 Connectors (SATAII_1, SATAII_2) 8 : Backlight &...
-
Page 21: Pvg I/O Connectors
C – HDMI K – 2x USB 2.0 D – VGA L – RS232/422/485 (COM 1) E – Gigabit LAN 1 M – WI-FI antenna (optional) F – Gigabit LAN 2 N – RS232 (COM 2) G – 2x USB 3.0 www.panel.it... -
Page 22: Motherboard Jumpers Setup
Please be noted that the password, date, time, user default profile and MAC address will be cleared only if the CMOS battery is removed. Default PVG-FM factory setting: 1-2 www.panel.it... -
Page 23: Chapter 6: System Setup
The system is delivered with the optimized defaults preconfigured state and is operational. Changes in the BIOS settings may only be implemented by appropriately trained staff. 6.3 Touchscreen driver and calibration PVG touch screen devices are already calibrated by factory. No calibration is needed. www.panel.it... -
Page 24: Chapter 7: Maintenance
Best Management Practices (BMP). When you discard the Lithium battery in California, USA and the rest of the world, please follow the related regulations in advance. 7.3 Spare parts It is recommended to install only original Panel spare parts. If the customer mount not original spare parts, we can’t grant the correct work of the device. www.panel.it...
