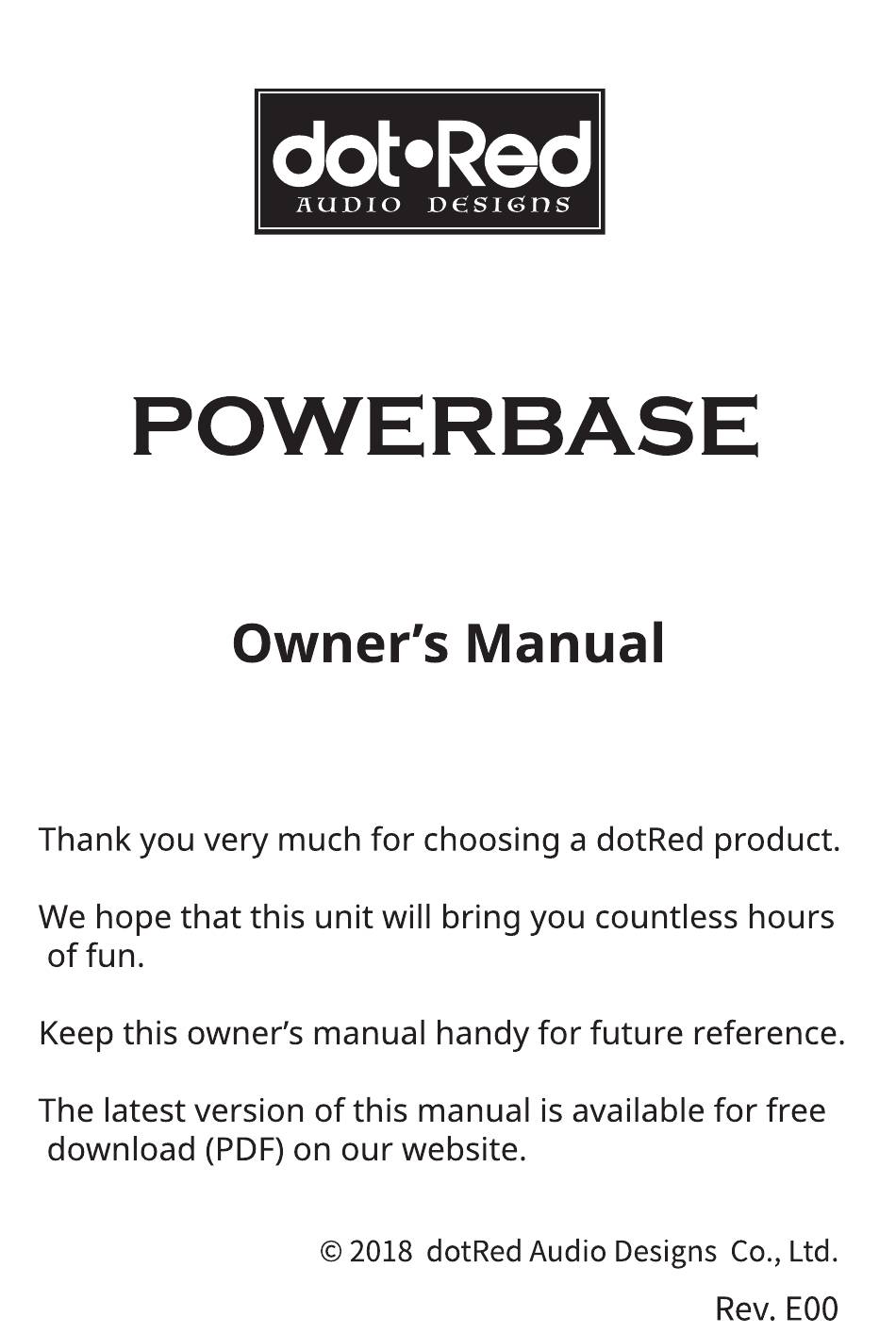

dotRed Audio Designs POWERBASE Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POWERBASE and is the answer not in the manual?

Questions and answers

Summary of Contents for dotRed Audio Designs POWERBASE

  • Page 2: Included Items

    INCLUDED ITEMS Make sure that the package contains the main unit and all the included items listed below. Owner’s Manual (this document) AC adaptor AC adaptor cord 3.0 x 8-type screws for fixing modules (2pcs) If you notice any sign of damage or abnormality, such as scratches, bends, etc.

  • Page 3: Precautions For Use

    PRECAUTIONS FOR USE ！ CAUTION Use this product by following all safety precautions in this owner's manual. This product has a circuit protection feature intended to protect the unit in case of overvoltage and short-circuit under normal conditions of use as described in this manual. However, due to several factors, we cannot guarantee that this feature will effectively protect the unit in all cases.

  • Page 4: Safety Precautions

    ・Smoke, sparks or a strange smell come out of this unit or its AC adaptor. ・Some or all of the POWERBASEʼs status indicators are blinking or off. ・The AC adaptor's cord is cracked or shows any other signs of damage.
  • Page 5 NAME & FUNCTION A Cable hook: F Output connector: Pass the AC adaptor's DC cable through this This 5-pin conector can deliver the power hook to prevent accidental disconnection. to your modules by dedicated wiring harness and the “POWERRAIL” bus board. B DC15V input: Connect the AC adaptor's DC cable end plug here.
  • Page 6 USAGE EXAMPLE １ ． Using with ”POWERRAIL” bus board. 4． Using with both “POWERRAIL” and other maker's bus board. This is a recommended configuration. Connect a “POWERRAIL” bus board by the dedicated wiring harness to 5-pin output connector. Connect a “POWERRAIL” bus board by the dedicated wiring ２．...

  • Page 7: Specifications

    +15V / 3.34A （typ.） （max.） 　　 ・ DC plug type: Outside Φ: 5.5mm Inside Φ: 2.1mm Polarity: center + 　POWERBASE 　　 ・ DC input: +15V (+13V to +19V) 　　 ・ DC output current: 1000mA @+12V 1000mA @-12V 500mA @+5V Weight:...
  • Page 8 ENVIRONMENT OF USE & CLEANING Read this section prior to using this unit. - Avoid exposure to moisture and direct sunlight. Make sure to use this unit within an ambient temperature between 0ºC to 35ºC and with a relative humidity of <85%. - The supplied AC adaptor is exclusively designed for indoor use.

  • Page 9: Troubleshooting

    TROUBLESHOOTING If this unit does not seem to work properly and shows some of the symptoms described here below, make sure each installed module works correctly before sending the unit in for repair. Symptoms - When powering on the unit, the status indicators do not light up. - When powering on the unit, the status indicators’...

  • Page 10: Year Limited Warranty

    DOTRED AUDIO DESIGNS warrants to the first owner of a covered product purchased from DOTRED AUDIO DESIGNS web shop that this product will be free from defects in materials and/or workmanship for a period of one year from the date of purchase.

  • Page 11: Warranty Card

    WARRANTY CARD dotRed Audio Designs Co., Ltd. 9-10, Kamijima, Hamakita-ku, Hamamatsu 434-0011 JAPAN Model：POWERBASE Address: Customer Name: Shop or seller’s signature: Warranty term: Purchase date: 1 year ◆Keep this warranty card together with your receipt or sales slip as a proof of the purchase location and date will be requested for any warranty claim.
