Summary of Contents for ALDI Easy Home PAC2

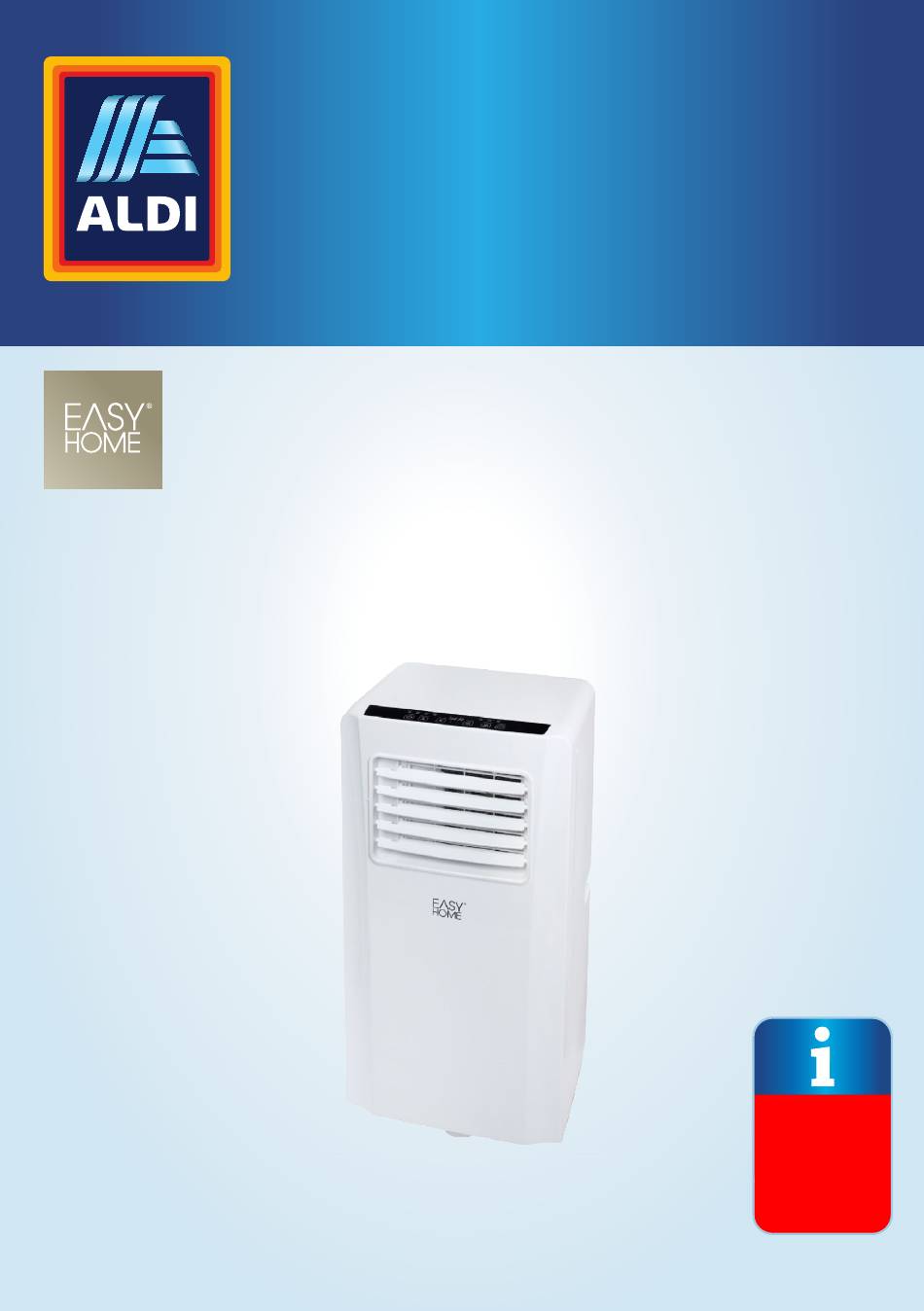

- Page 1 User Manual HOME ENVIRONMENT MOBILE AIR CONDI- TIONER Original User Manual...
-
Page 2: Overview
Overview... - Page 3 Overview W. F H IG H LO W T IME R C O O L D E H U M F AN T E MP T E MP MO D E S P E E D T IME R P O W E R...
- Page 4 Overview 67,5-123 cm 67,5-123 cm...
-
Page 5: Package Contents/Device Components
Package contents/device components Package contents/device components Control panel Fan speed indicator (HIGH/LOW) Horizontal fins Timer indicator Vertical fins Display Front air outlet Mode indicator (COOL/DEHUM/FAN) Castor (4x) TIMER button Side air inlet SPEED button Air filter MODE button Rear air outlet Signal receiver Drain plug TEMP- button... -
Page 6: Table Of Contents
Table of content Table of content Overview........................2 Package contents/device components..............5 General information....................7 Reading and storing the operating manual..............7 Proper use........................... 7 Explanation of symbols.....................8 Safety........................9 Safety notes........................9 Before first use....................... 14 Check the device and scope of delivery................ 14 Setting up the device....................... -
Page 7: General Information
General information General information Reading and storing the operating manual This user manual is part of this mobile air conditioner, hereinafter also called "device". It contains important information on how to set up and use the device. Before using the device, read the operating manual carefully, in particular the safety instructions. -
Page 8: Explanation Of Symbols
General information Explanation of symbols The following symbols and signal words are used in this user manual, on the device or on the packaging. This symbol provides you with useful additional information on handling and use. Declaration of conformity (see chapter “Declaration of conformity”): Products marked with this symbol meet all the applicable Community regulations of the European Economic Area. -
Page 9: Safety
Safety Safety The following signal words are used in this operating manual. This signal symbol/word denotes a hazard with WARNING! an average risk level that could lead to death or severe injury if it is not avoided. This signal symbol/word denotes a hazard with a CAUTION! low risk level that could lead to mild or moderate injury if it is not avoided. - Page 10 Safety - Do not operate the device by means of an external timer or separate remote-control system. - Do not immerse the device or the power cable in water or other liquids. - Never touch the power cable with wet/damp hands. - Never pull the power cable out of the socket by the cord;...
- Page 11 Safety abilities) or a lack of experience and knowledge (such as older children). - Children aged 8 years and older as well as persons with reduced physical, sensory or mental abilities or a lack of experience and knowledge may only use this device if they are supervised or have been given instruction on using the device in a safe way and understand the hazards involved.
- Page 12 Safety WARNING! Risk of injury and damage. Improper use of batteries can cause damage to the surrounding components, as well as injury due to leaking battery fluid. - Never remove the outer coating from batteries, do not short- circuit them, and do not attempt to charge non-rechargeable batteries.
- Page 13 Safety Risk of injury! NOTE! Risk of damage! Improper handling can damage the device. - Operate the device on an easily accessible, level, dry, heat- resistant and sufficiently stable work surface. Never place the device on the edge of the work surface. - Always make sure that the device is positioned on a level surface and cannot roll away.
-
Page 14: Before First Use
Before first use Before first use Check the device and scope of delivery WARNING! Danger of suffocation! Children may become tangled up in the packaging film when playing with it and suffocate. - Do not let children play with the packaging film. NOTE! Risk of damage! If opening the packaging with a sharp knife or other pointed... -
Page 15: Inserting/Changing Batteries In The Remote Control
Before first use 2. Slide the hose connection (air conditioner) into the rails provided on the rear air outlet (see Fig. D). 3. Position the window feed-through piece at the window opening and adjust its length to match the width or height of the window (see Fig. E). The length of the window feed-through piece can be adjusted from 67.5 cm to 123 cm as needed. -
Page 16: Using Cooling Mode
Operation Using cooling mode 1. Press the POWER on/off button on the control panel or the "POWER" button on the remote control to switch the device on. The device switches on and the display shows the default/most recently set temperature. 2. -
Page 17: Using Ventilation Mode
Operation 3. Press the POWER on/off button on the control panel or the "POWER" button on the remote control to switch the device off. The device switches off. Using ventilation mode When using the device in ventilation mode, you can remove the hot air discharge hose 1. -
Page 18: Setting The Air Flow
Operation 4. Use the MODE button or the "MODE" remote control button to select an operating mode. The selected mode is shown by the mode indicator (COOL/DEHUM/FAN) The timer starts to count down the remaining time and the product switches itself on when the timer reaches zero. -
Page 19: Permanent Water Discharge
Operation If the water tank is full, the water tank indicator (W.F) lights up and the fault code "E2" is shown on the display . The device stops operating. To drain the water tank, proceed as follows: 1. Switch the device off and pull the mains plug out of the socket. -
Page 20: Troubleshooting
Troubleshooting Troubleshooting Some faults occur due to minor defects and you may be able to remedy them yourself. However, if you are unable to do this, you should contact after sales support. Never attempt to repair the device yourself. Problem Possible causes Solution The device does not start up. -
Page 21: Storage
Cleaning NOTE! Risk of short circuit! If water or other liquids enter the housing, they can cause a short circuit. - Never immerse the device in water or other liquids. - Make sure that no water or other liquid gets inside the housing. -
Page 22: Technical Data
Technical data Technical data Model: PAC2 Item number: Supply voltage: 220–240 V~, 50 Hz Rated current: 4.5 A Output: 1000 W Protection class: Cooling output: 9,000 BTU Coolant: R290 Coolant quantity: 160 g Minimum room size (floor space): 12 m² Maximum room volume: 70 m³... -
Page 23: Waste Disposal And Environmental Protection
Waste disposal and environmental protection Waste disposal and environmental protection Disposing of packaging Dispose of packaging according to type. Sort the paperboard and cardboard as waste paper and the film as recyclable material. Dispose of old electrical device Applicable in the European Union and other European countries with systems for separate collections of recyclable waste. -
Page 24: Wiring Diagram
Wiring diagram Wiring diagram... - Page 25 PRODUCED IN CHINA FOR: ALDI STORES LTD. PO BOX 26, ATHERSTONE WARWICKSHIRE, CV9 2SH. Visit us at www.aldi.com...
