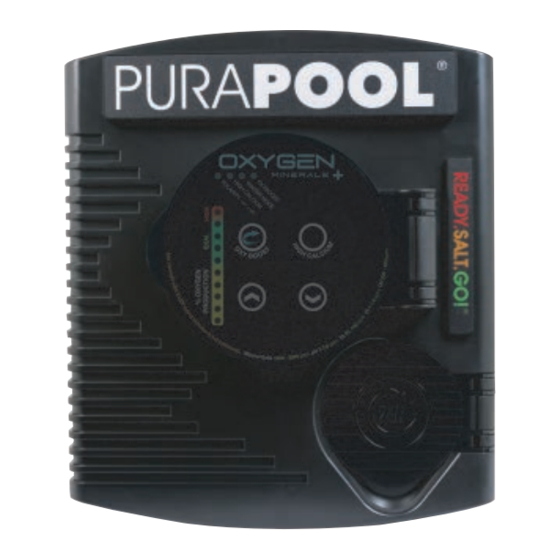

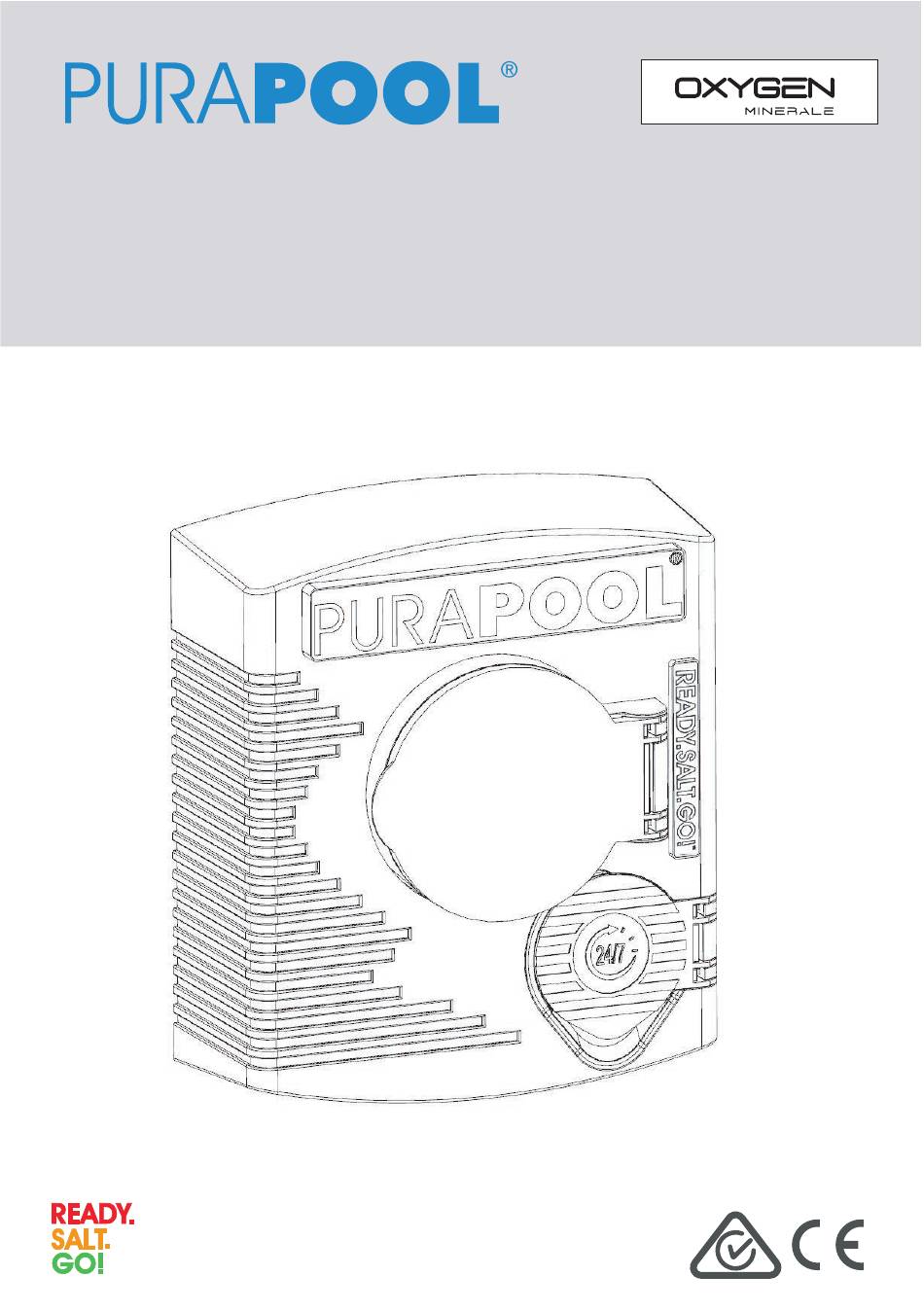

- Page 1 OXYGEN MINERALE OXY 600 | OXY 1000 | OXY PLUS INSTALLATION INSTRUCTIONS & PRODUCT MANUAL...
-
Page 2: Table Of Contents
INSTALLATION LOCATION BELOW GRADE INSTALLATION INSTALLATION TOOLS LIST CONTROL CENTRE INSTALLATION OXY CELL INSTALLATION WATER PREPARATION AND SYSTEM START UP......9 HOW THE OXYGEN MINERALE WORKS SALT REQUIREMENTS HOW TO ADD SALT TO THE POOL ALGAECIDE SALT ADDITION GUIDE SYSTEM OPERATION...............14... -
Page 3: Important Warnings & Safety Instructions
Install at least 1.5 metres (5ft) from wall of pool. Follow all applicable electrical codes. The OXYGEN MINERALE must be installed in an outdoor location, covered and fully sheltered from weather, or indoors in a forced air ventilated room, and installed so that the orientation is exactly as shown in following instructions. - Page 4 To reduce the risk of injury, installation and service should be done by a qualified pool service professional, certified electrician or an authorized PURAPOOL® representative. Attention Installer: This manual contains important information about the installation, operation and safe use of this product. Before installing this product, read and follow all warning notices and instructions which are includ- ed.
- Page 5 FAILURE TO HEED THE FOLLOWING COULD CAUSE DAMAGE TO POOL EQUIPMENT OR PERSONAL INJURY • The OXYGEN MINERALE must be installed and operated as specified in the Owner’s Manual. • Power to the OXYGEN MINERALE should be turned off before unplugging the electrolytic cell from the cell housing or power supply, to prevent cell damage and low voltage sparks.
-
Page 6: Installation Procedure
The system should be wired to the load side of the time clock to power on ONLY when the primary pump is operating. Alternatively, plug the pump power cord directly into the power socket on the OXYGEN MINERALE. f. If valves are not present to isolate the equipment, one ball valve should be installed on the inlet side of the cell. -
Page 7: Installation Tools List
ELECTROLYTIC CELL INSTALLATION PROCEDURE a. Locate pool return line after the heater or filter as shown in ( Figure 1 page 6 ) This is the preferred location for the cell housing. b. Cut and glue the vertical plumbing risers from the main plumbing into place. Install Union Nut and tailpiece onto pipe. - Page 8 ELECTROLYTIC CELL INSTALLATION PROCEDURE OXY Cell Pump Filter Heater From Pool Return to Pool Image is not to scale Figure 1: Location within pool filtration system 1. Horizontally mounted 2. Vertically mounted (Preferred alignment) (Use if space is limited) Figure 2: Orientation of electrolytic cell Page 6...
-
Page 9: Control Centre Installation
CONTROL CENTRE INSTALLATION The Control Centre should be installed at least 1m above ground in a well ventilated area away form direct sunlight and rain exposure. The Control Centre should be mounted no further that 2.5 metres away from the electrolytic cell. -
Page 10: Water Preparation And System Start Up
If sanitation residuals are still below the 1 ppm range, PRESS the 18hr BOOST button. (see Troubleshooting on pages 17-18) f. The rule of thumb for daily runtime of the OXYGEN MINERALE system (with balanced water and running at >70% production) is;... -
Page 11: How The Oxygen Minerale Works
SALT REQUIREMENTS a. The OXYGEN MINERALE operates best with a salt range of 1800- 3,800 ppm. The cell will continue to operate with a minimum of 1000 ppm and up to 35,000 ppm without any adverse effects to the unit. -
Page 12: Salt Requirements
DO NOT have any automatic suction type pool cleaners operating until the PURASALTS have completely dissolved. Allow the PURASALTS to dissolve for 3 hours before initial powering of the OXYGEN MINERALE. j. Power on the OXYGEN MINERALE and set output percentage to desired Output level. Page 10... -
Page 13: Algaecide
SALT REQUIREMENTS ALGAECIDE We recommend using an algaecide especially during the summer months. The ratio is as follows. 150-300 mls per 4 weeks per 65-75,000 litres as a maintenance dose. Incoming water supply varies in all parts of the world. In South East Asia a lot of the water is from ground wells and sometimes sourced from poor water quality locations. -
Page 14: System Operation
Before switching ON the OXYGEN MINERALE, make sure the pump and OXYGEN MINERALE are plugged into the power outlet. Once the OXYGEN MINERALE is switched ON and salts are present in the water, you can adjust the Oxygen production output by pressing the or DOWN buttons. - Page 15 BUTTON - DECREASE OXYGEN PRODUCTION Press the DOWN arrow to decrease oxygen production. LED INDICATOR - HIGH CALCIUM Illuminated LED indicates when the OXYGEN MINERALE is set to operate in a high calcium environment. Unnecessary use will shorten electrolytic cell life.
- Page 16 LED INDICATOR - WINTER MODE Illuminated LED Indicates when the external toggle switch is ON ( located on the bottom rear left of the OXYGEN MINERALE Control Centre ). Use the Winter Mode function when a pool cover is in use OR in cooler climates below 20°C.
-
Page 17: Timer Operation
TIMER OPERATION SETTING UP The outer dial should be set to the current time. Rotate the dial slowly in a clock- wise direction, until the correct hour is aligned with the arrow printed on the dial. Note that the outer dial is printed with the 24hr clock 8.00am = 8 on the dial, 8.00pm = 20 on the dial. -
Page 18: Customer Responsibilities
CUSTOMER RESPONSIBILITIES The electrolytic cell should be periodically inspected for accumulation of any foreign deposits. Common causes of premature cell failure:- • pH not kept within operating range. • Operating the cell with not enough mineral salts in the water. •... -
Page 19: Troubleshooting
Cell cap may be cross cap screws onto the housing threaded. without resistance. Water is leaking Water is travelling through a Contact Purapool Support crack in the cell base and up from the cell plug. support@purapool.com.au the cell cord. Page 17... - Page 20 Unstable Voltage Wait 60 seconds. LED Flashing. Switch system ON to Reset. If System does not reset Multiple Power surges contact Purapool Support support@purapool.com.au Short circuits in power Check to make sure ON/OFF Problem with power to No Output Switch is on.
-
Page 21: Water Care General Guidelines
WATER CARE GENERAL GUIDELINES Chlorine Stabilizer Can be used if required at low levels of 10-20ppm. How to adjust pH A pH range of 7.2 – 7.6 is ideal for maximum comfort and minimum chlorine demand. Always adjust total alkalinity before adjusting pH. (see next page) Low pH (acidic water) leads to stinging eyes and corrosion of open metal fittings. -
Page 22: Water Care Weekly Tests
Compare the samples. A higher level of chlorine should be found at the pool return line, which confirms that the OXYGEN MINERALE system is producing chlorine. - Page 23 SAVE THESE INSTRUCTIONS Record your Information below. Installer Purchased From Installation Date Serial Number Model Please quote the above when contacting Purapool support: support@purapool.com.au Page 21...
- Page 24 This Manual is available online at purapool.com.au...
