Owner's Manual

Version 1.2

Table of Contents

Need help?

Do you have a question about the FIVE17 and is the answer not in the manual?

Questions and answers

Summary of Contents for Heavenly Soundworks FIVE17

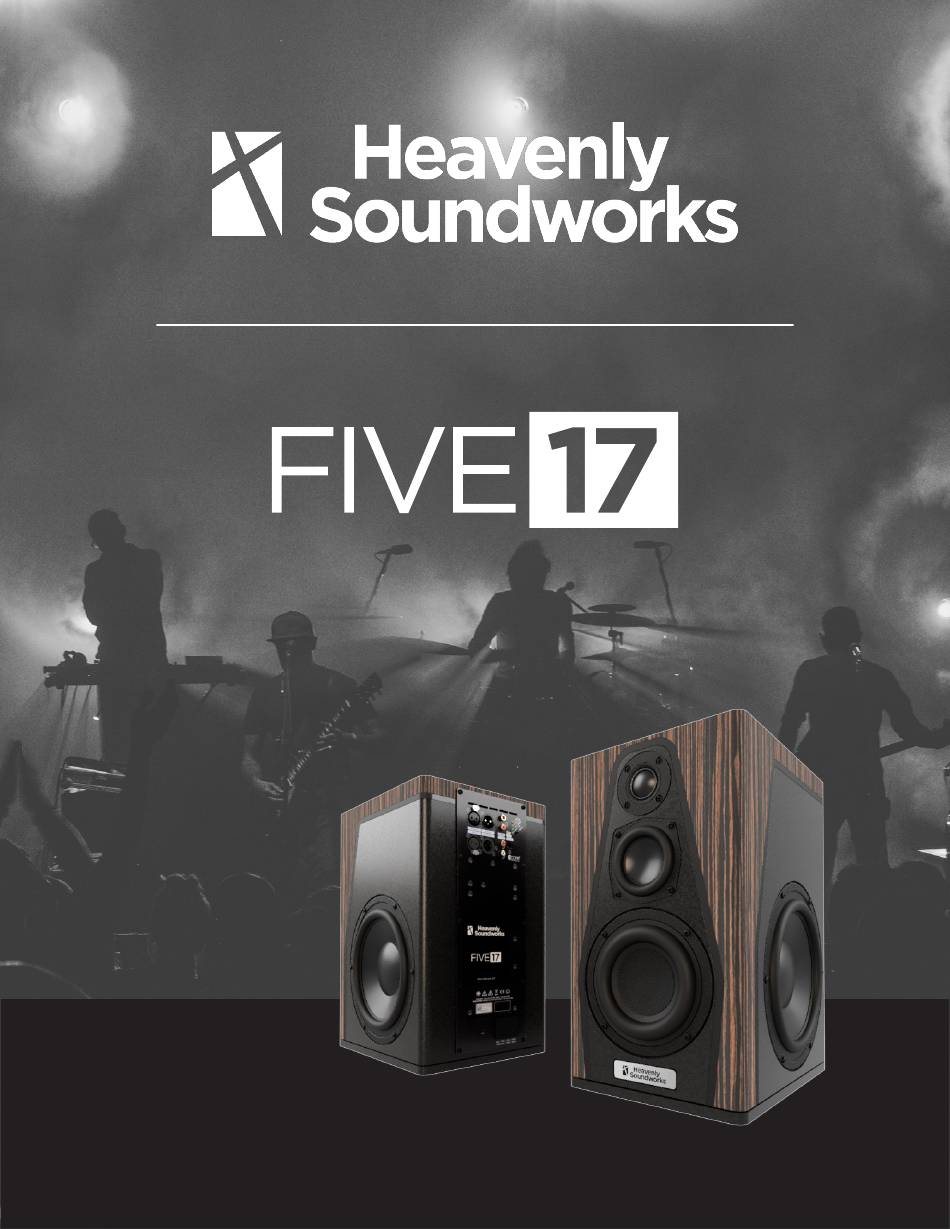

Page 1 Owner’s Manual Version 1.2...
Page 2: Welcome
WELCOME Thank you for purchasing our FIVE17 loudspeaker system! At Heavenly Soundworks our hope is that this system delivers incredible musical experiences for years to come! Our aim is musical perfection, and what we mean by that is that we want...
Page 3 If you have any questions about your Heavenly Soundworks Loudspeaker System, please do not hesitate to reach out to us at Support@HeavenlySoundworks.com The most up to date information about our products can always be found on our website: www.HeavenlySoundworks.com www.heavenlysoundworks.com...
Page 4: Table Of Contents
CONTENTS Welcome Contents About Heavenly Soundworks FIVE17 Quick Start Overview System Features Connections Power Mode Source Selection Thermal Protection Driver Protection System Presets LED Indicators and Button Front LED Indicator Remote Control Use Cases “Primary” and “Secondary” Connection Digital Configuration...
Page 5 Specs Frequency Response Product Configuration Weight Dimensions Power Max SPL Connections Graphs Care & Maintenance Care Cleaning Warranty Limited Warranty Terms and Conditions Important Safety Information Notes www.heavenlysoundworks.com Page 5...
Page 6: About
Don’t be fooled by their small stature, these are mighty! Each FIVE17 is designed, engineered, and hand built in the USA. Each set goes through a thorough break-in period and quality check before they leave our facility, ensuring that your experience meets our high standards right out of the box.
Page 7: Quick Start
Quick Start Guide Unbox Carefully remove loudspeakers, cables, and documentation. When handling avoid touching drivers or passive radiators to prevent any accidental damage. Placement Place loudspeakers in their listening position with enough space behind the speaker to access the connections and power switch. (Final placement will depend on your listening environment) Connections...
Page 8: Overview
OVERVIEW 1. Tweeter 2. Midrange 3. Woofer 5. Passive Radiator 4. Passive Radiator 5. LED Indicator and IR Receiver (Primary Speaker Only) Page 8 www.heavenlysoundworks.com...
Page 9 2. Unbalanced 3. USB Factory Service Port (Authorized Use Only) Analogue I/O 1. Balanced 4. LED Indicators Analogue I/O and Button 7. Optical (Toslink) 5. AES Digital 6. S/PDIF Digital 9. Power Input 10. Power Switch 8. Serial Number www.heavenlysoundworks.com Page 9...
Page 10: System Features
Depending on the quality of the source components used, some components may send out low levels of noise even when powered off, in this case the FIVE17 system will remain powered on as an active signal is being detected. Due to this, we recommend test- ing the auto power on/off feature with your components to ensure it is working as intended.
Page 11: Source Selection
Source Selection Your FIVE17 loudspeaker system automatically scans for active audio signals, and locks on to the correct input when a signal is detected. When no signal is detected on the active input for 15 seconds the system is muted, and will scan for a signal from the other sources.
Page 12: System Presets
SYSTEM FEATURES System Presets Heavenly Soundworks loudspeakers are precisely tuned for the discerning audiophile listener. We have incorporated three distinctive tunes, each meticulously designed for a specific volume range (at your listening position). These presets can be selected using the included remote control.
Page 13 www.heavenlysoundworks.com Page 13...
Page 14: Led Indicators And Button
SYSTEM FEATURES LED Indicators and Button On the back of each FIVE17 Loudspeaker is a series of LED Indicators and a selection button. The top (Red) LED indicates the following; Random Blinking = Amplifiers hitting pre- programmed limits to protect drivers...
Page 15: Remote Control
Remote Control The provided remote control offers the following functions; Power Volume Up Volume Down Move Left Move Right Mute Function 1 Function 2 Function 3 Function 4 Select *Not all remote commands may be needed/used *The Left and Right Arrows (buttons 4 and 5 above) can be used to manually switch between input options, however it is recommended to keep the system in “Auto-Detect”...
Page 16: Use Cases
Analogue and Digital. In order to accommodate the widest range of potential input options, the setup is as follows. Each set of FIVE17 Loudspeakers is designed to be used in a “Primary” and “Secondary” configuration, where the “Primary” detects audio signal and receives commands from the remote control, then sends that information to the “Secondary”.
Page 17: Digital Configuration
*If it is preferred to utilize your source for volume control, it is advised that only the analogue inputs be used, as the internal volume control of the FIVE17 system will need to be turned up to a “reference” level. If the digital signal were to then become active, the resulting sound output would be at a very high volume until turned down by the remote control.
Page 18 SPECS Frequency Response • 30 HZ - 20,000 HZ +/- 1 db • 27 HZ - 20,000 HZ +/- 3 db • - 6 db @ 24 HZ Product Configuration • 1 x 5” High Power/High Excursion 4 layered voice coil woofer •...
Page 19 Quasi-Anechoic Frequency Response (measured @ 1 Meter) Overlay of Nearfield Measurements for each driver Off Axis Frequency Response from 0 to 40 degrees (Measured in room @ 1 ft.) Average Low End Response (using ground plane measurement) flat within 1db at 27Hz and 3db at 25Hz www.heavenlysoundworks.com Page 19...
Page 20 CARE / MAINTENANCE Care: As mentioned in the “System Features” section of this manual, this loudspeaker system is equipped with Thermal Protection features. However, to prevent overheating, never cover the ventilation holes on the backplate of the speaker, and never place the speaker near a heat source. In order to maintain the beautiful finish of the wooden cabinet, avoid placing these loudspeakers in direct sunlight as prolonged exposure can fade the wood finish.
Page 21 www.heavenlysoundworks.com Page 21...
Page 22 In the event that the repair is determined to be under warranty, Heavenly Soundworks will return the item to the customer at no charge. Except as indicated, neither transportation, shipping, nor any other costs, nor any risk for removal, transportation and installation thereof shall be covered by this warranty.
Page 23 For damages caused by any use other than correct use, as described in the user manual, negligence, modifications, or use of parts that are not made or authorized by Heavenly Soundworks, for damages caused by accidents, lightning, water, fire, heat, extreme weather conditions, war, public disturbances or any other cause beyond the reasonable control of Heavenly Soundworks.
Page 24 Caution: Prolonged loud sounds will cause permanent hearing loss! Here at Heavenly Soundworks our motto is “Sound Made Beautifully”. But what’s the use of having beautiful sound if you can’t hear it. We want you to be a happy customer from now until eternity, so we’re sending along this guideline with each of our loudspeaker systems.
Page 25 You can listen to sounds at 70 dBA, or lower, for as long as you want. Sounds at 85 dBA can lead to hearing loss if you listen to them for more than 8 hours at a time. Sounds over 85 dBA can damage your hearing faster. The safe listening time is cut in half for every 3dB rise in noise levels over 85 dBA.
Page 26 NOTES Page 26 www.heavenlysoundworks.com...
Page 27 www.heavenlysoundworks.com Page 27...
Page 28 www.heavenlysoundworks.com...
